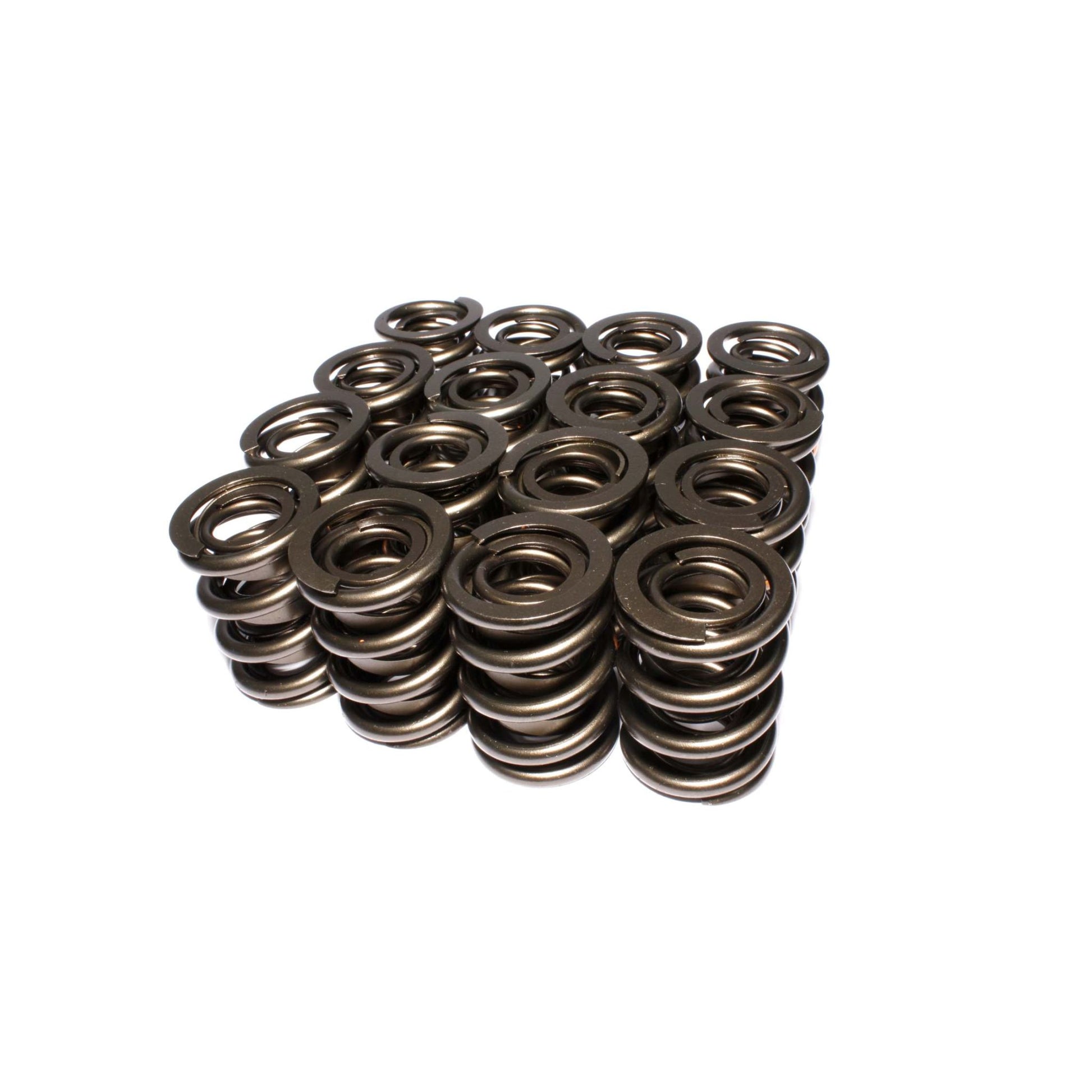

COMP Cams Engine Valve Spring Kit COMP-999-16

Attributes:

• GTIN: 00036584280132
• Brand Name: COMP Cams
• Compatible .570" Guide Diameter Spring Seats: 4781-16
• Compatible .630" Guide Diameter Spring Seats: 4782-16
• Compatible Retainer: 732-16
• Compatible Shims: 4757
• Compatible Spring Cup (O.D. Locator): 4700-16
• Damper: Yes
• Inner Spring Inside Diameter: 0.712
• Number of Springs: 2
• Outer Spring Inside Diameter: 1.094
• Outer Spring Outside Diameter: 1.551
• Seat Height: 1.9
• Seat Pressure: 215
• Spring Rate: 633
• Amazon ASIN: B00062Z2BY
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Coil Bind Height: 1.09

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.4 x 3.7 x 2.8 inches
• Weight: 5.7 lb
