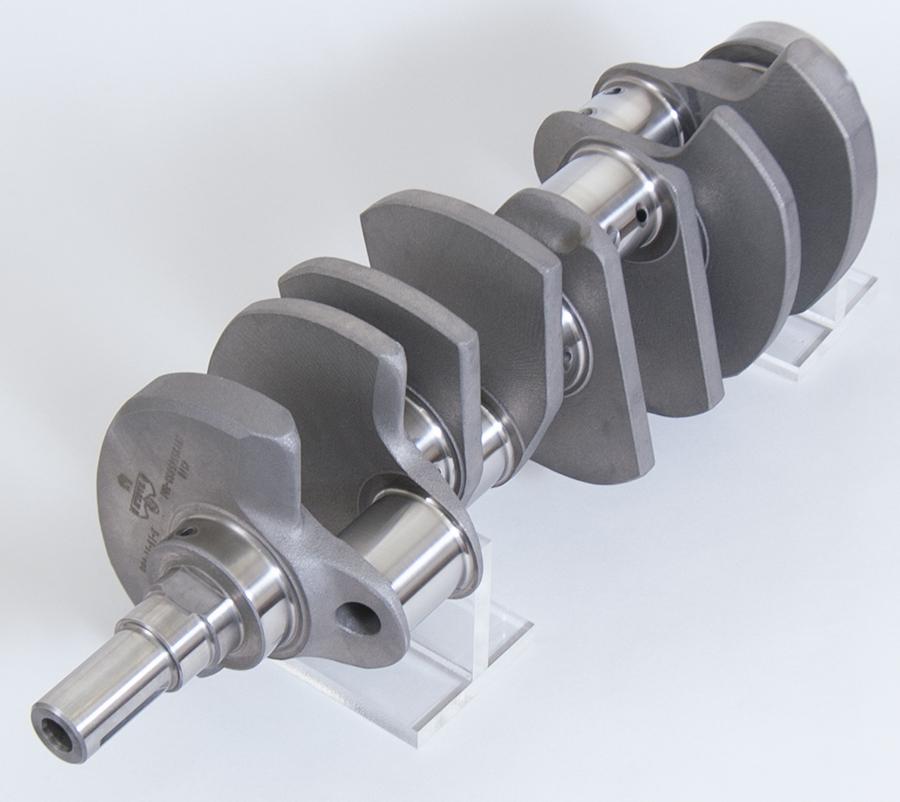

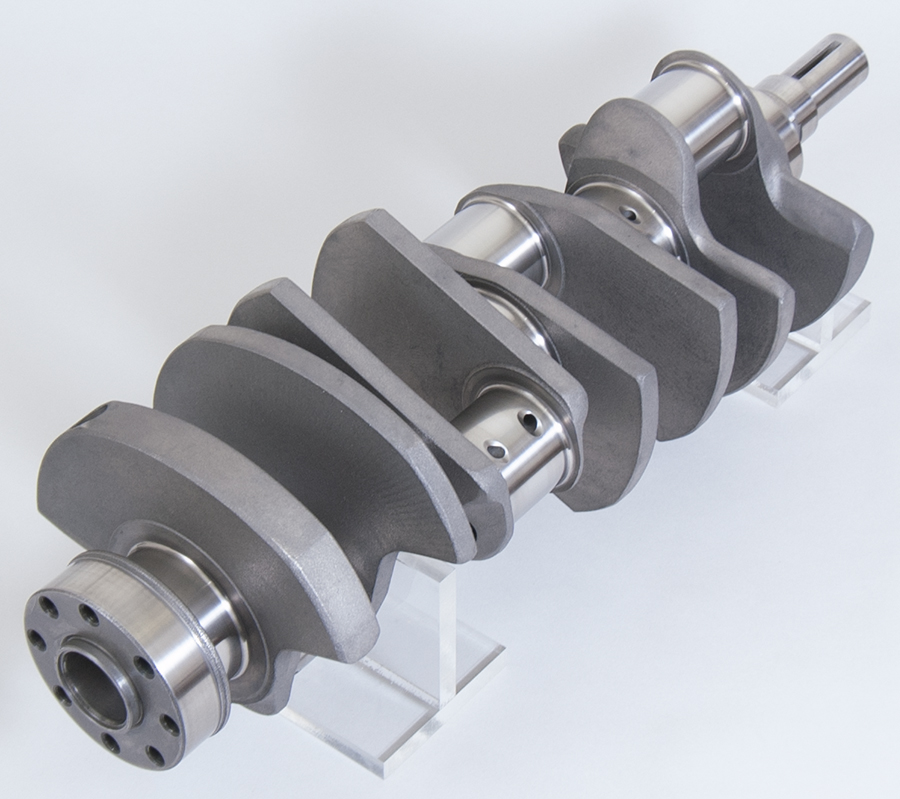

Eagle 4340 CRANK 4.6L 281 8 BOLT FLANGE 3.554" 428135545933

Eagle forged 4340 steel center-counterweighted Cranks feature a non-twist forging, center counterweights for added stability at high RPM and high-power applications. 125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Attributes:

• GTIN: 00793348006949
• Brand Name: Eagle Specialty Prod
• Intended Balance: internal
• Main Journal: 2.657"
• Material: Forged 4340 Steel
• Minimum Rod Length: 5.933"
• Pilot Bore Diameter: call
• Rear Seal Diameter: call
• Rod Journal Width: 1.900"
• Rod Journal: 2.086"
• Snout Diameter: call
• Target Bobweight: 1600g
• Balance Type: Internal
• Crankshaft Stroke: 3.554"
• Engine Stroke: 3.554
• Flywheel Bolt Count: 8
• Flywheel Register Diameter: call

Extended Information:

• Country of Origin:
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 9 x 9 inches
• Weight: 56 lb
