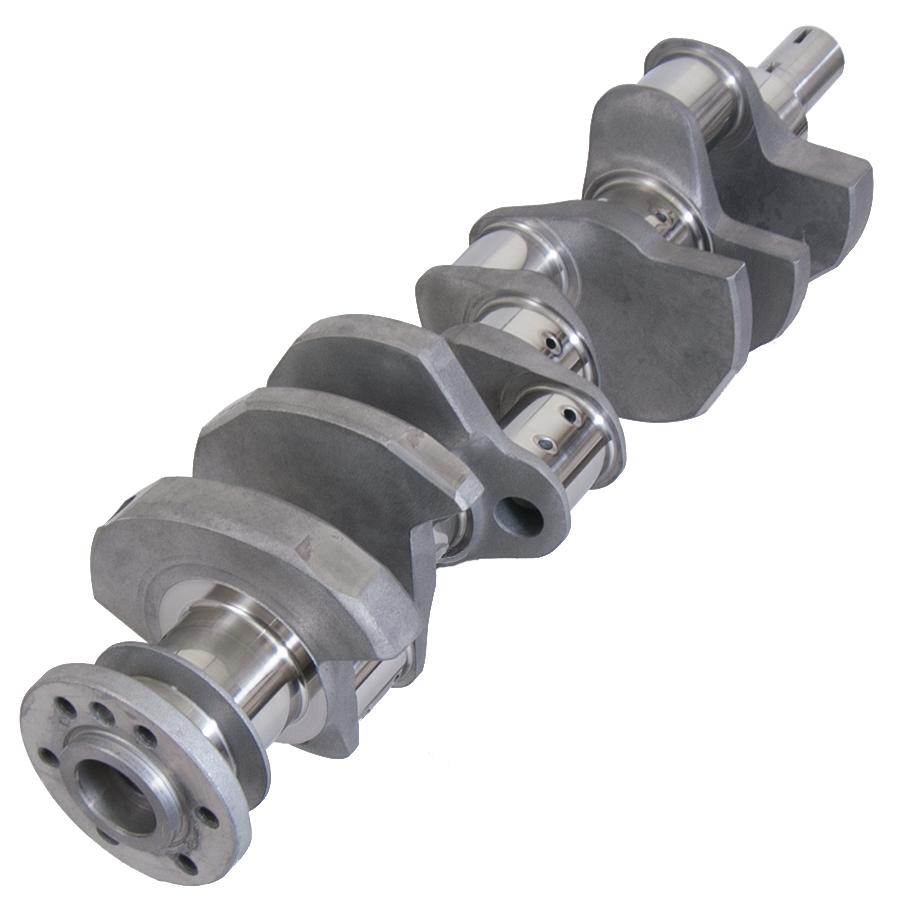

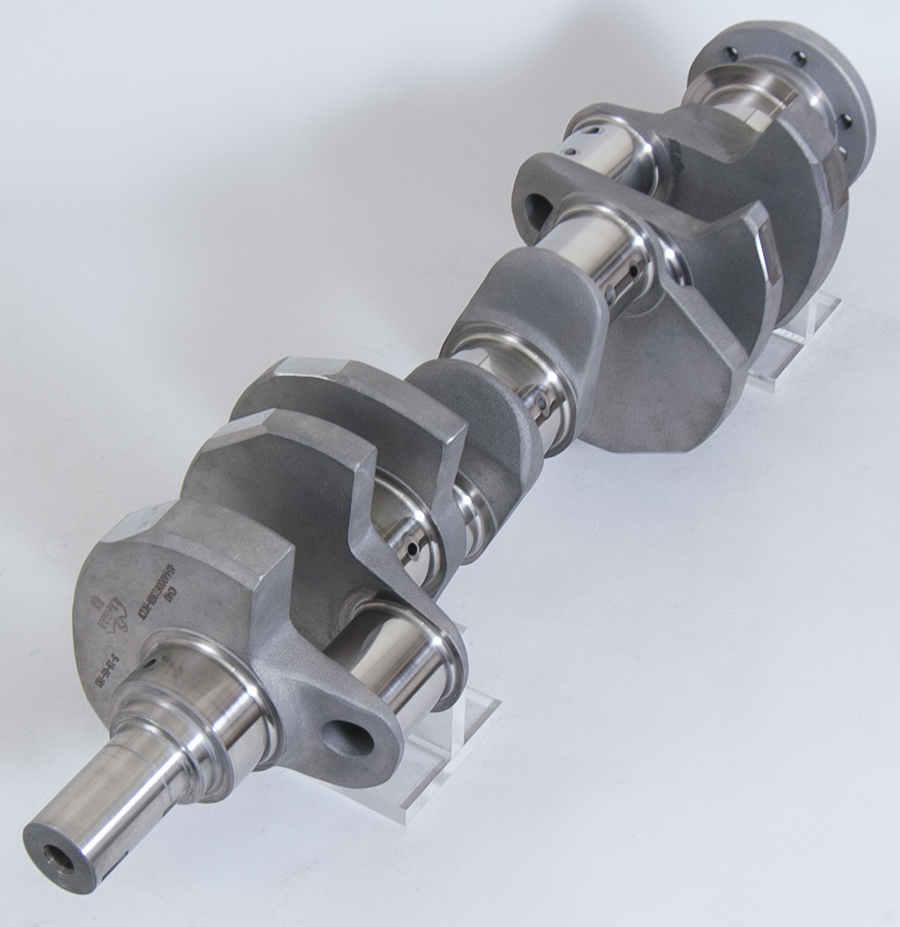

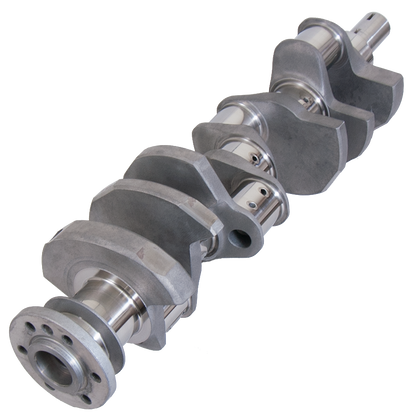

Eagle 4340 Crank Chevy BB 4340 INT BAL 4.000" 445440026135

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications.

Attributes:

• GTIN: 00793348019604
• Brand Name: Eagle Specialty Prod
• Crankshaft Stroke: 4.000"
• Engine Stroke: 4
• Flywheel Bolt Count: 6
• Flywheel Register Diameter: call
• Intended Balance: internal
• Main Journal: 2.749"
• Material: Forged 4340 Steel
• Minimum Rod Length: 6.135"
• Pilot Bore Diameter: 1.094"
• Rear Seal Diameter: call
• Rod Journal Width: 2.000"
• Rod Journal: 2.2"
• Snout Diameter: 1.6"
• Target Bobweight: 2350g
• Balance Type: Internal

Extended Information:

• Country of Origin:
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 9 x 9 inches
• Weight: 74 lb
