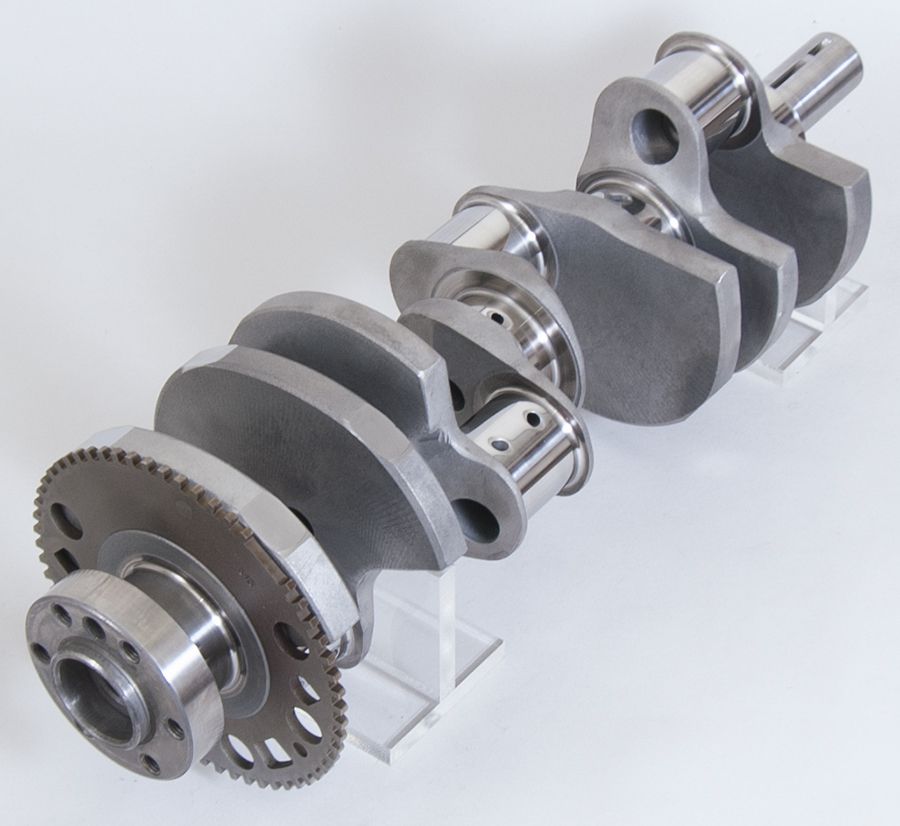

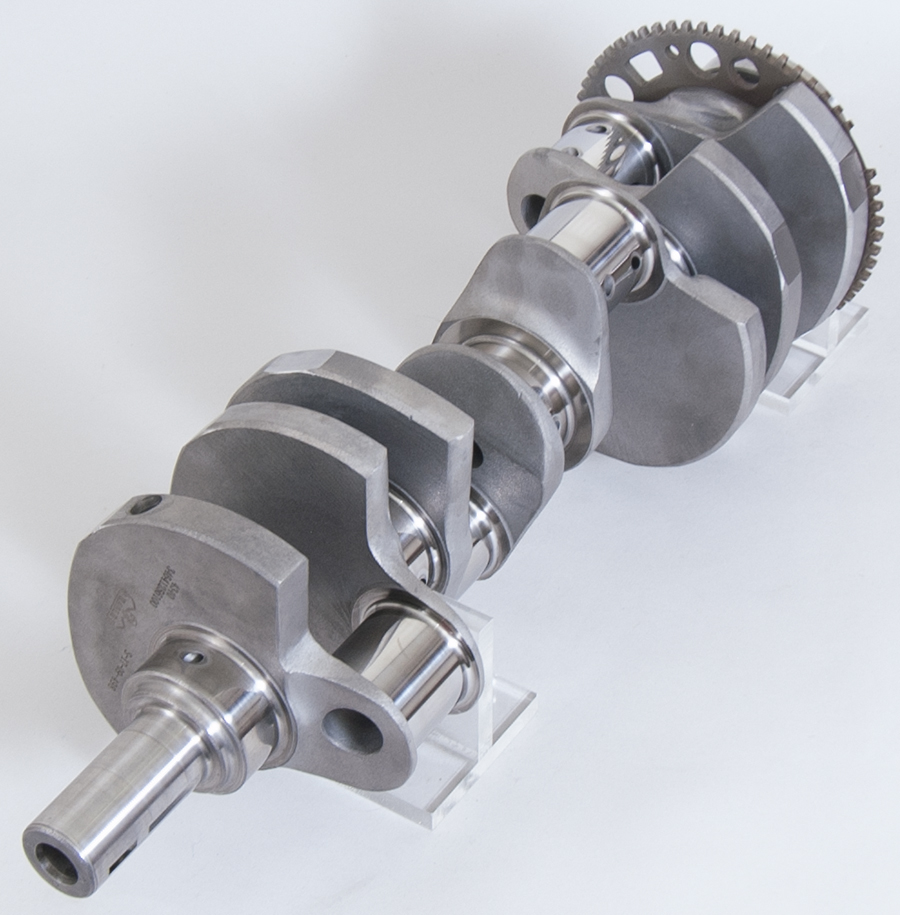

Eagle 4340 CRANK CHEVY LS2/3 58T 4.125" STROKE 434741256100

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 58 tooth reluctor.

Attributes:

• GTIN: 00793348007946
• Brand Name: Eagle Specialty Prod
• Balance Type: Internal
• Crankshaft Stroke: 4.125"
• Engine Stroke: 4.125
• Flywheel Bolt Count: 6
• Flywheel Register Diameter: call
• Intended Balance: internal
• Main Journal: 2.559"
• Material: Forged 4340 Steel
• Minimum Rod Length: 6.125"
• Pilot Bore Diameter: call
• Rear Seal Diameter: call
• Rod Journal Diameter: 2.1
• Rod Journal Width: 1.900"
• Rod Journal: 2.1"
• Snout Diameter: 1.48"
• Target Bobweight: 1800g

Extended Information:

• Country of Origin:
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 9 x 9 inches
• Weight: 61 lb
