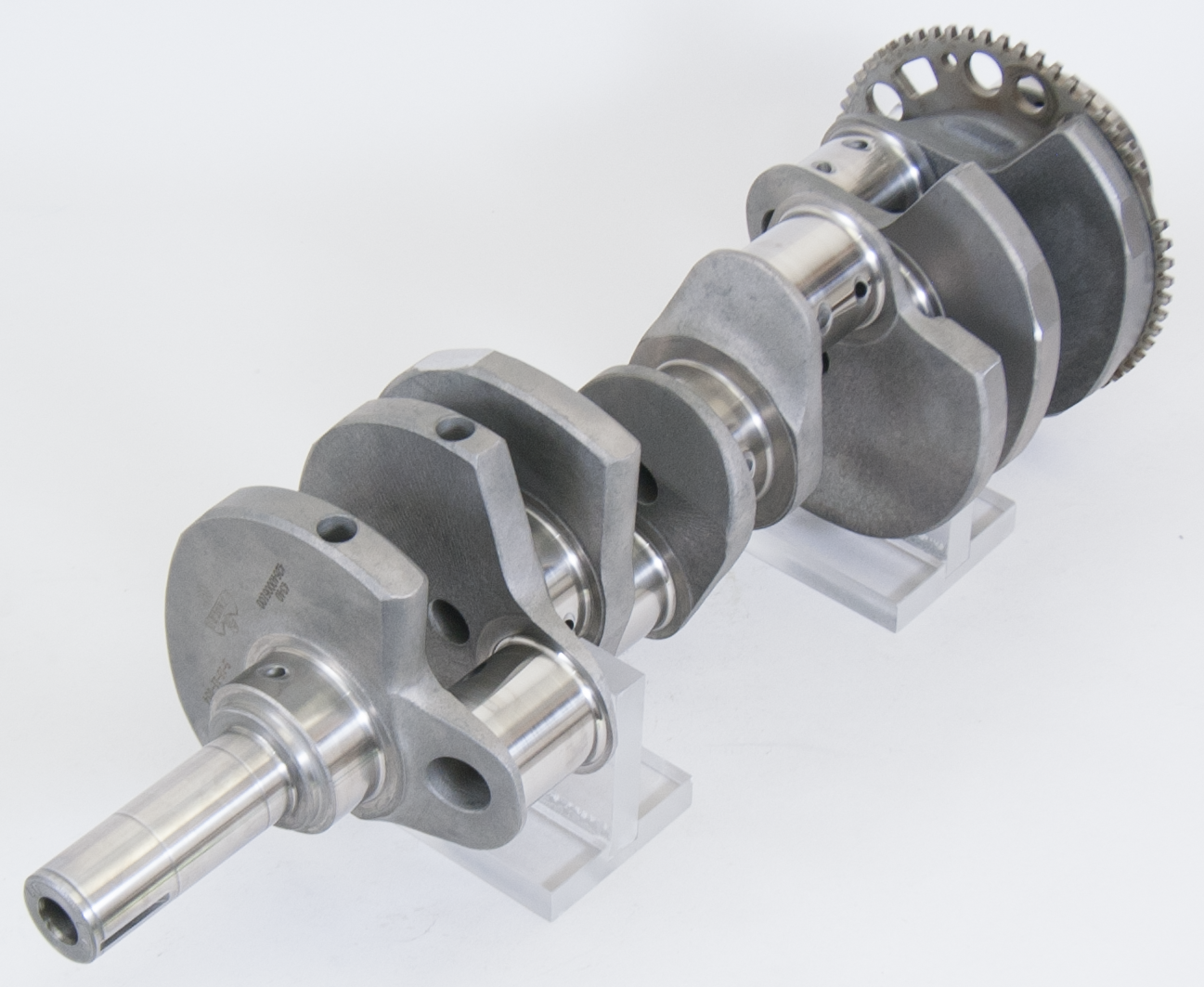

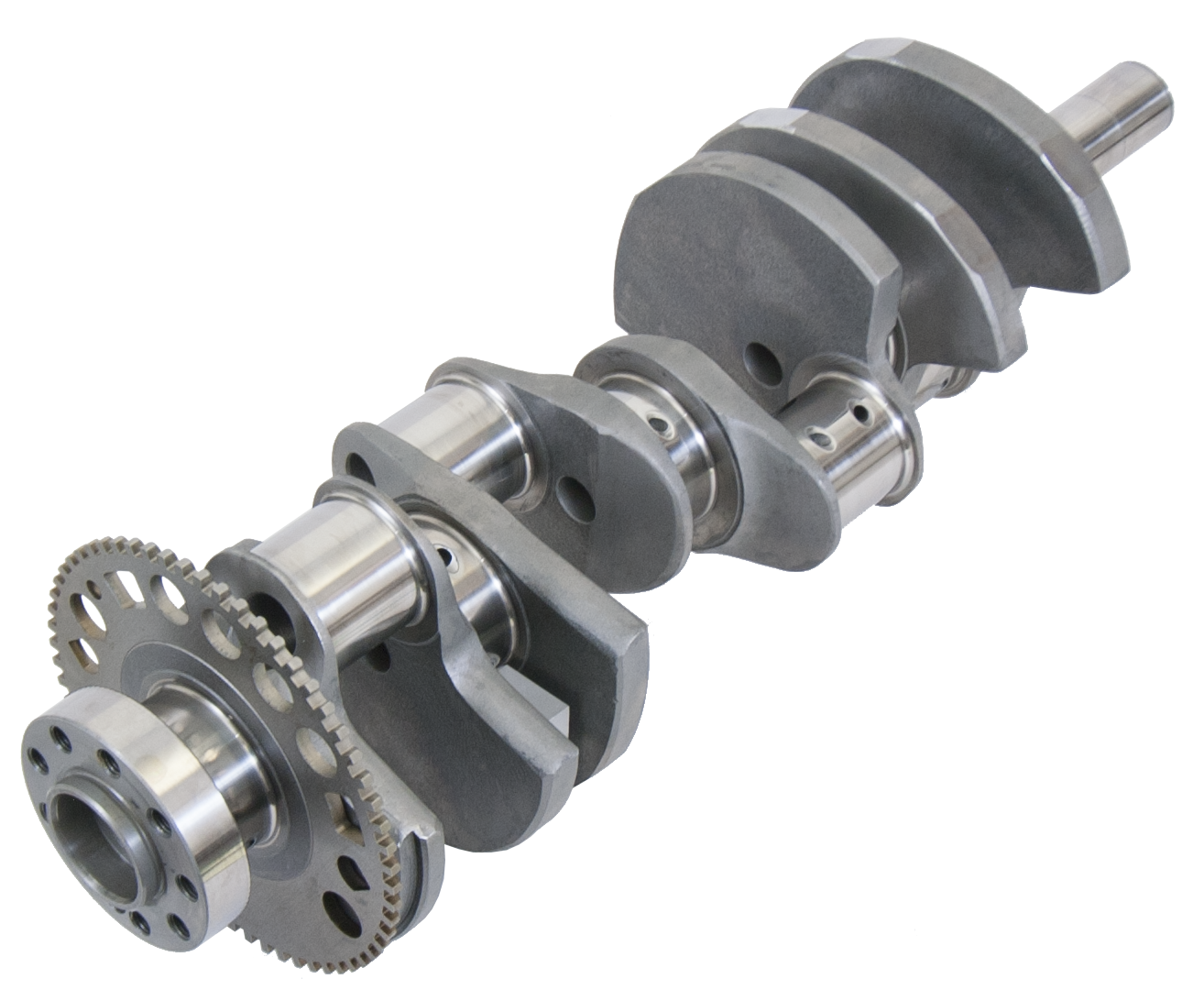

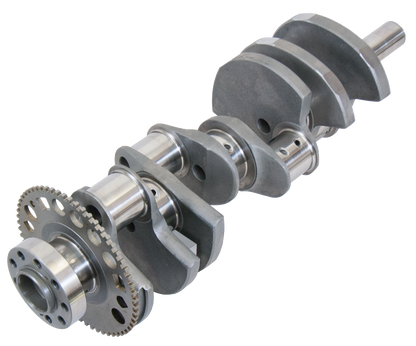

Eagle 4340 Crank Chevy LS9 58T LS2 RELUCTOR 442640006100

Eagle forged 4340 steel Cranks feature a non-twist forging, .125" fillet radiuses for superior strength so chamfered / narrowed bearings required, nitrided surface and micropolished. Intended for the most demanding applications. Includes 58 tooth LS9 reluctor.

Attributes:

• GTIN: 00793348003764
• Brand Name: Eagle Specialty Prod
• Balance Type: Internal
• Crankshaft Stroke: 4.000"
• Engine Stroke: 2.559
• Flywheel Bolt Count: 9
• Flywheel Register Diameter: call
• Intended Balance: internal
• Main Journal: 2.559"
• Material: Forged 4340 Steel
• Minimum Rod Length: 6.125"
• Pilot Bore Diameter: call
• rear flange bolts: 9
• Rear Seal Diameter: call
• Reluctor: 58 tooth LS2
• Rod Journal Diameter: 2.1
• Rod Journal Width: 1.900"
• Rod Journal: 2.100"
• Snout Diameter: 1.48"
• Target Bobweight: 1800g

Extended Information:

• Country of Origin:
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 9 x 9 inches
• Weight: 62 lb
