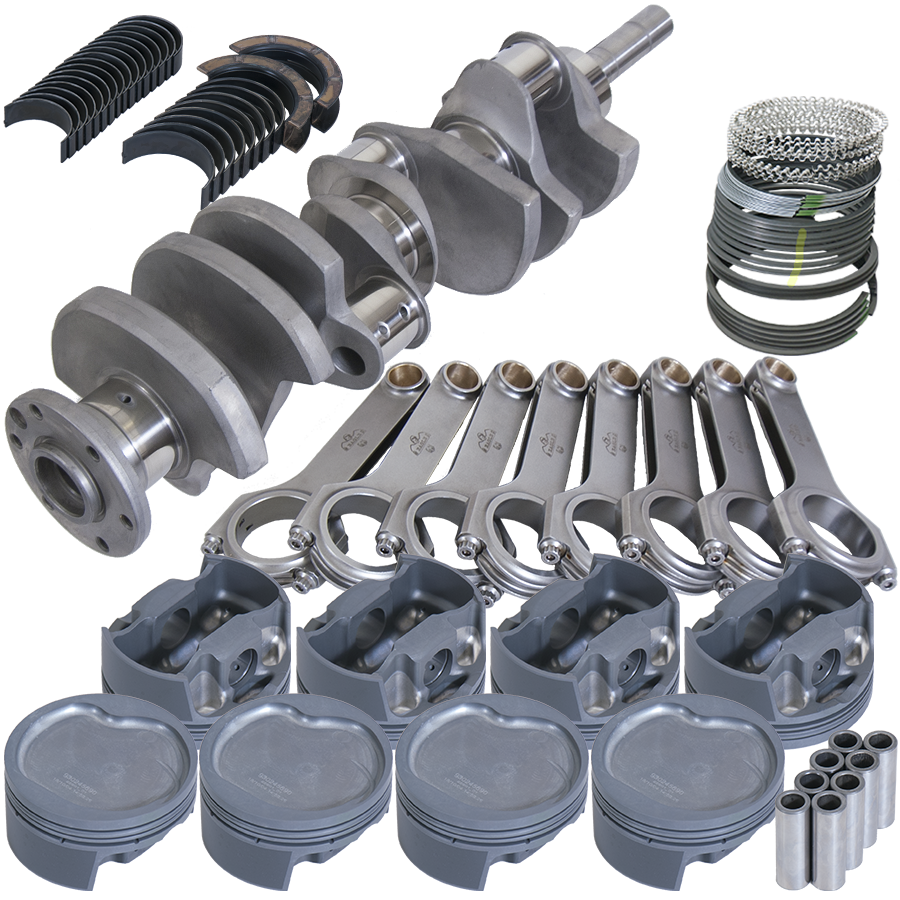

Eagle COMPETITION ASSEMBLY FORD 429 / 460 SCJ 15012030

Eagle Competition Rotating Assemblies are perfect for all forms of racing use including nitrous and forced-induction.

Attributes:

• GTIN: 00793348804934
• Brand Name: Eagle Specialty Prod
• Assembly Balanced: No
• Assembly Type: Competition Assembly
• Balance Type: internal
• Bore: 4.39
• Connecting Rod Bolt Diameter: 7/16"
• Connecting Rod Bolt Material: ARP 8740
• Connecting Rod Design: H-Beam
• Connecting Rod Length: 6.800"
• Connecting Rod Material: Forged 4340 Steel
• Crankshaft Center Counterweights: No
• Crankshaft Flange Bolt Holes: 6
• Crankshaft Main Journal Diameter: 3.000"
• Crankshaft Material: Forged 4340 Steel
• Crankshaft Reluctor: No
• Crankshaft Rod Journal Diameter: 2.200"
• Crankshaft Stroke: 4.500"
• Cylinder Bore Diameter: 4.390"
• Damper Included: No
• Flexplate/Flywheel Included: No
• Main Bearing Type: hardened, narrowed or chamfered
• Main Bearings Included: Yes
• Oil Rail Support Included: No
• Piston Brand: Mahle
• Piston Dome Volume: -38cc
• Piston Face Type: inverted dome
• Piston Material: Forged 4032 Aluminum
• Piston Pin Diameter: .990"
• Piston Pin Type: Full Floating
• Piston Ring Gap: Standard
• Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
• Piston Type: Scj Inverted Dome Forged
• Product Line: Competition
• Rod Bearing Type: hardened, narrowed or chamfered
• Rod Bearings Included: Yes
• Second Piston Ring Type: Reverse Twist Iron
• Thrust Washer Included: No
• Top Piston Ring Type: Barrel Faced Plasma-Moly

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 33 x 22 x 12 inches
• Weight: 118 lb
