Fabtech 3.5 in. BJ UCA KIT W/ PERF SHKS 2020-21 GM K3500HD K1179

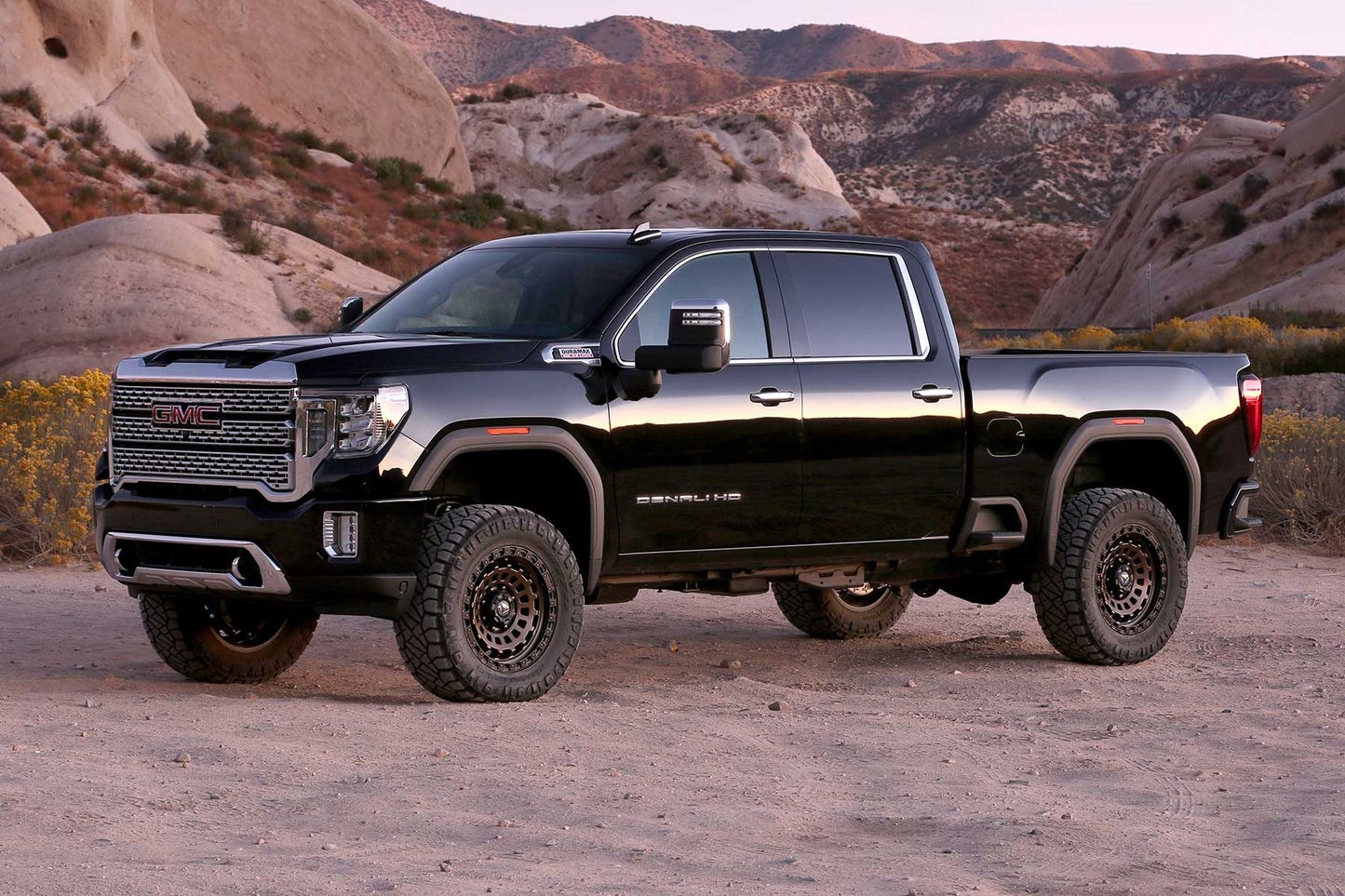

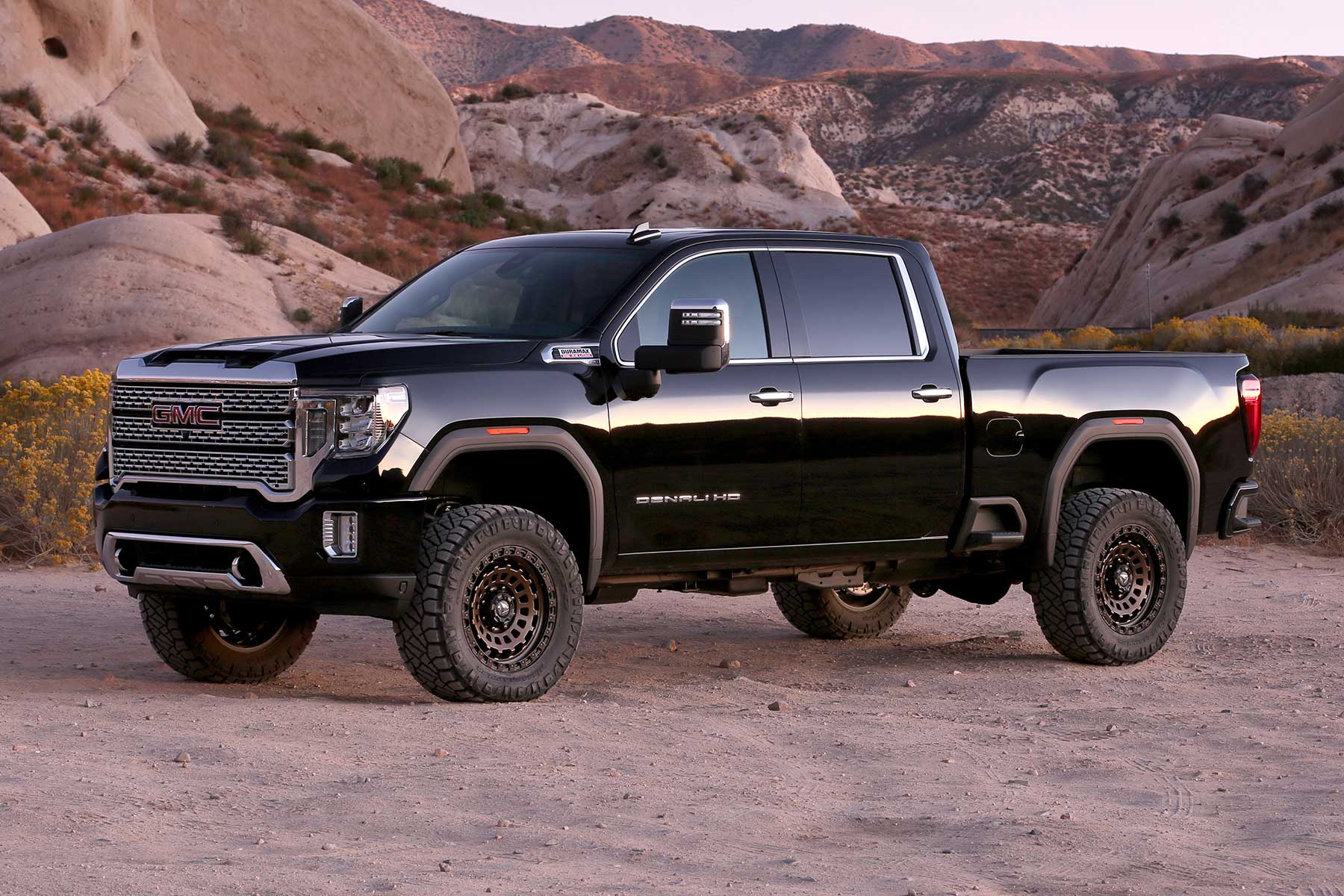

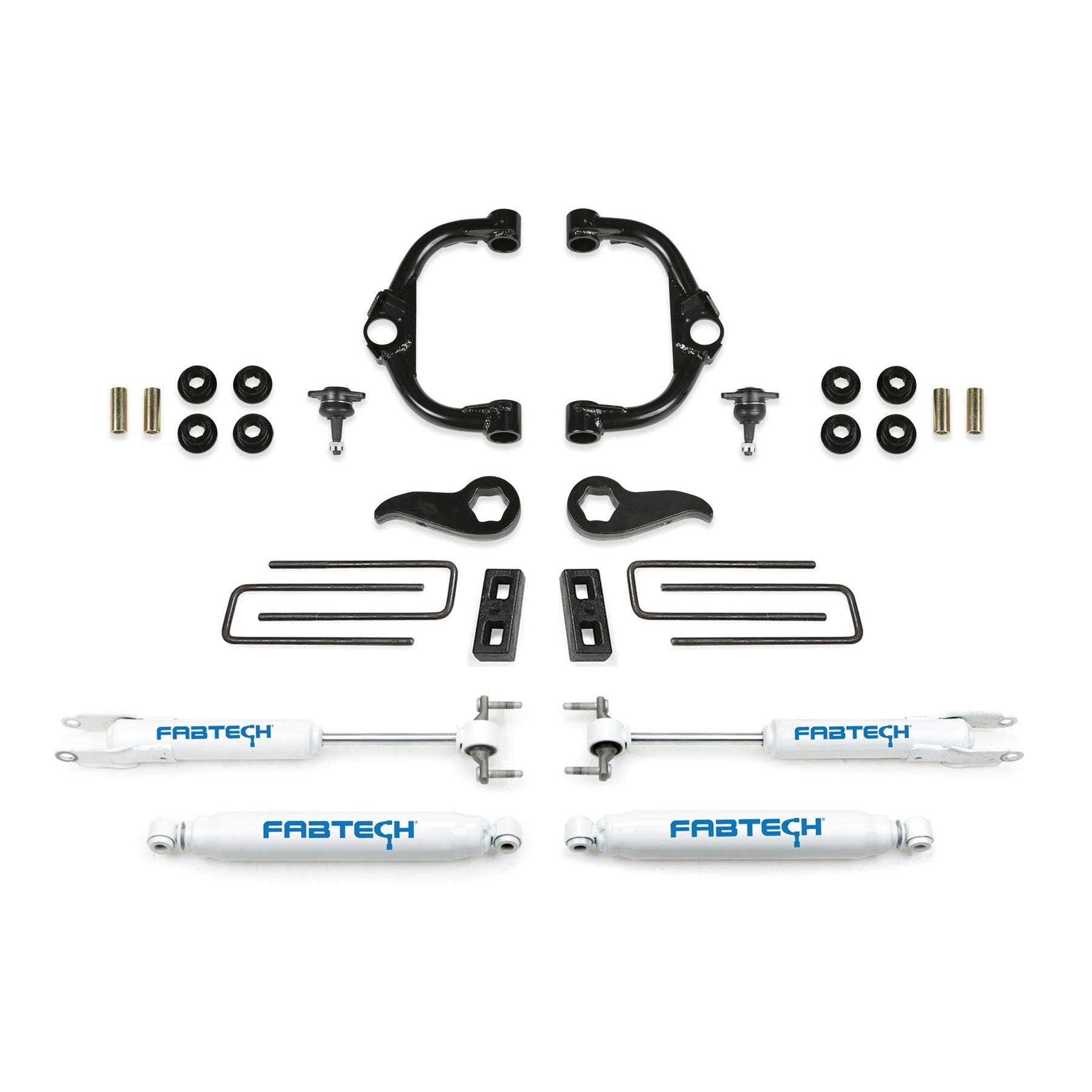

This high quality GM 3500HD lift kit offers an increased ride height for enthusiasts looking to run a 35in tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look. The factory GM upper control arms are replaced with Fabtech's heavy duty ball joint tubular arms. They are constructed with 1.50in OD DOM steel tubing and feature a high travel ball joint that is sizably larger than stock. This provides for increased strength both on and offroad. Fabtech sets the ball joint angle to allow for full travel without bind throughout the travel range. Fabtech's forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms. The rear receives 2in blocks and U-bolts to help level the stance of the vehicle. Fabtech offers their Performance shocks with this suspension. They are a twin tube shock that will provide a good highway ride with the ability to tackle offroad. This 3.5in HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence. Tubular Steel Upper Control Arms. Additional 1 degree of caster built in. 1.5in OD x .120in wall DOM tubing. High travel oversized ball joint. 2.25in OD x .250in wall DOM bushing barrels. Heavy duty forged torsion bar keys.

Attributes:

• GTIN: 00674866110809
• Brand Name: Fabtech

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29 x 21.86 x 15 inches
• Weight: 86.4 lb
