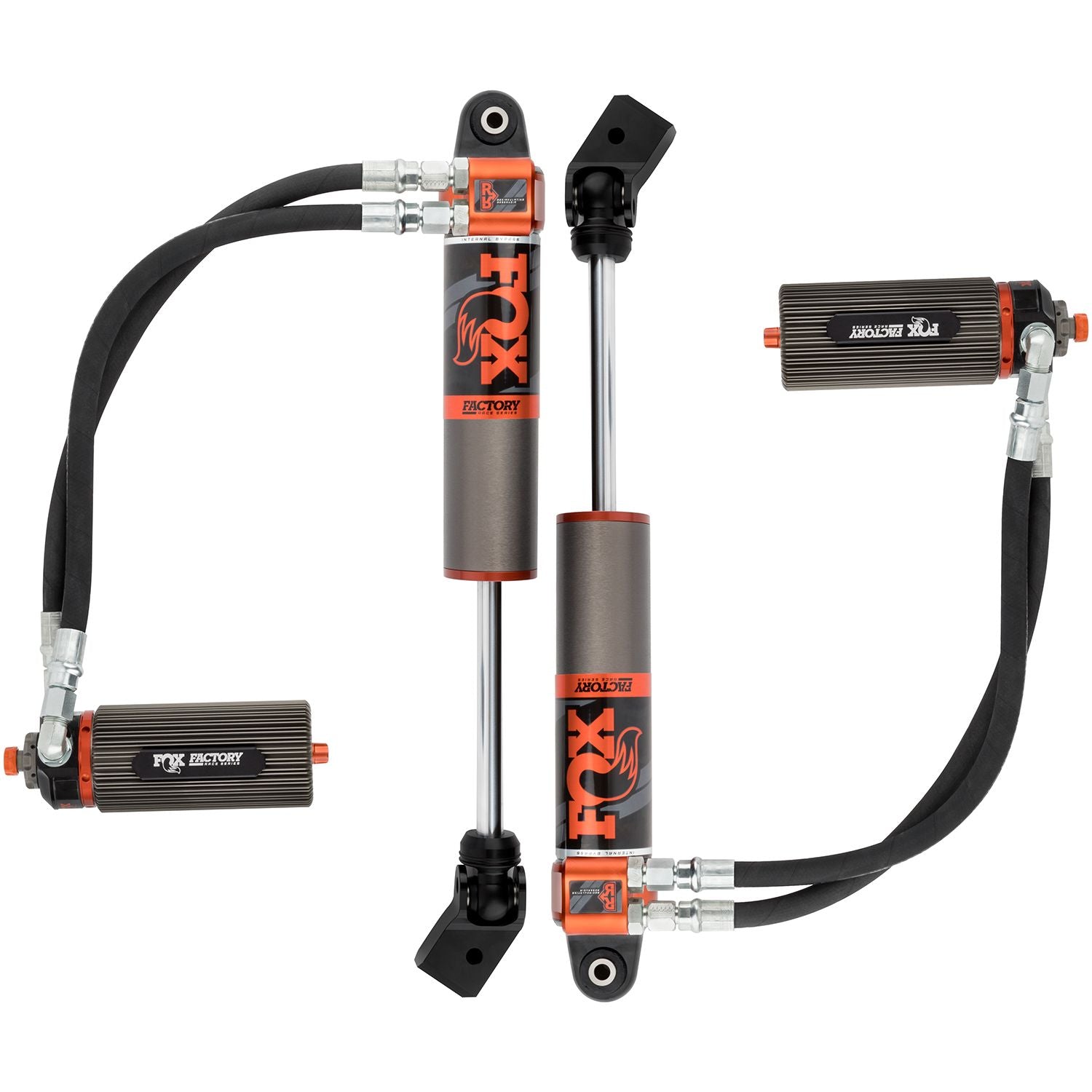

FOX Offroad Shocks FACTORY RACE SERIES 3.0 INTERNAL BYPASS RESERVOIR SHOCK (PAIR) - ADJUSTABLE 883-26-077

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your Jeep.

• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• Multiple Internal Damping Zones
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components

Attributes:

• GTIN: 00711745590472
• Brand Name: FOX Offroad Shocks
• Bottom Mount (p/n): 014-11-003-A
• Top Mount (p/n): 014-11-026
• Travel (in): 10.72
• Top Mount: EB2
• Series: Factory Race
• Reservoir Type: Remote
• Type: Smooth Body Internal Bypass
• Extended Length (in): 27.70
• Compressed Length (in): 16.98
• Label Name: Kit: 18-ON Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 3.5-4.5” Lift, DSC, Requires Front Driveshaft
• Fox Catalog: TRUCK
• Bottom Mount: EB2
• Body Material: Aluminum
• Adjuster Type: DSC - Dual Speed Compression
• Body Diameter (in): 3.0

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 39.0000 x 20.0000 x 12.0000 inches
• Weight: 45.0000 lb
