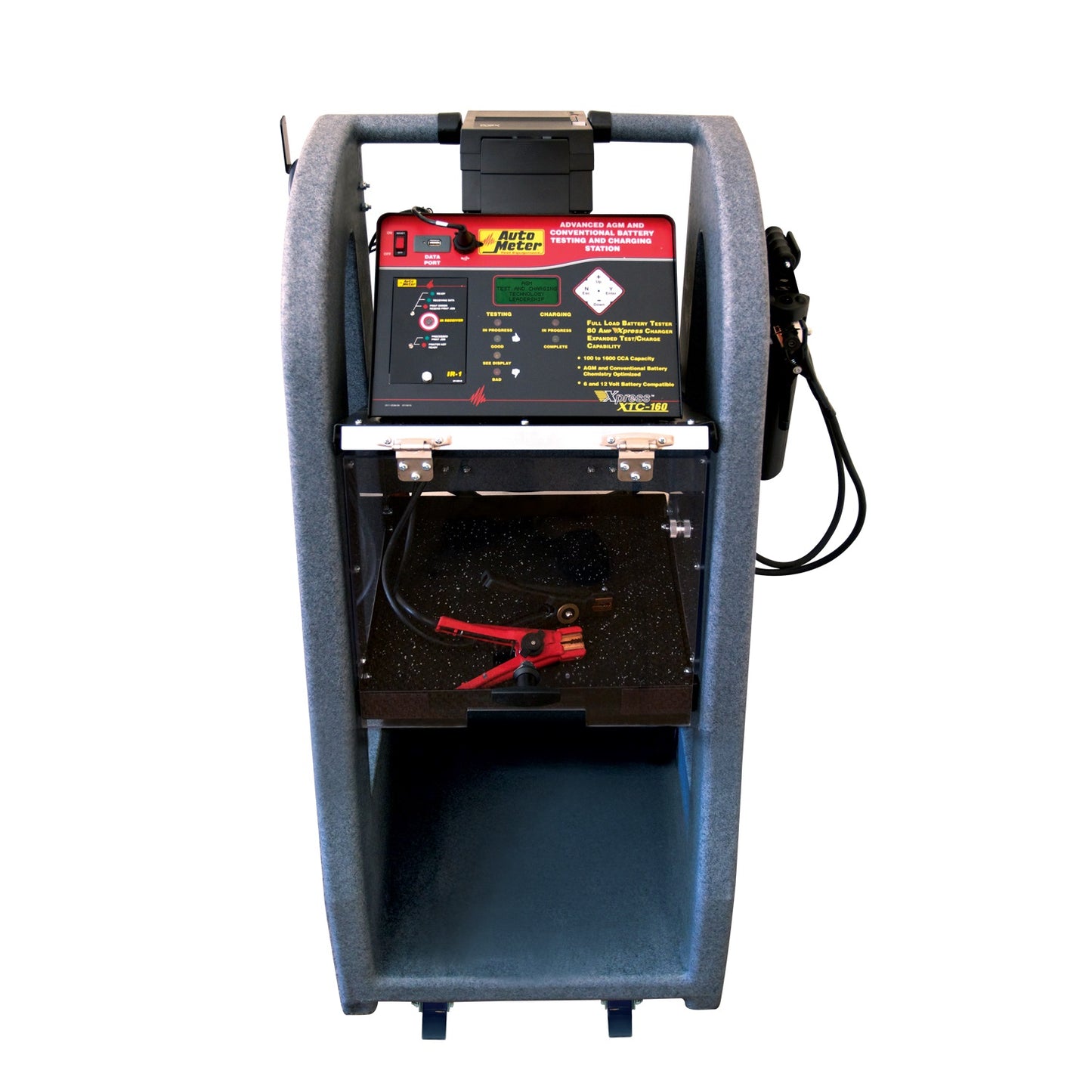

AutoMeter FAST-530; Heavy-Duty Automated Electrical System Analyzer Bundle FAST-530

XTC-160 - Fast Charge/Tester; BVA-230 - Battery and Electrical System Tester; ES-11 - Equipment Stand; PR-16 - High Speed Printer; IR-1 - Infrared Printer Interface for BVA-230 Printing

• Includes XTC-160 - fast charger/tester, BVA-230 - battery and electrical system tester, ES-11 - equipment stand, PR-16 - high speed printer, and IR-1 - infared printer interface for BVA-230 printing
• V-Drop Technology - This unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance.
• Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests
• This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis.
• This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire.
• Autometers V-Drop Technology Prevents The Need To Connect Additional Probes And/Or Disable Ignition Or Fuel Systems To Engage In Excessive Engine Crank Periods.
• In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
• Stores previous test results - downloadable to computer with USB thumb drive or direcly link to computer with dual USB connection
• Tests flooded and AGM batteries as well as starting/charging circuits - also tests discharged batteries and detects bad cells
• Advanced Digital Pulse Load (DPL) technology
• True-Load - This AutoMeter equipment is unique compared with other products on the market
• This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator

Attributes:

• GTIN: 00046074154263
• Brand Name: AutoMeter
• Add-On: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29.25 x 52.5 x 25.5 inches
• Weight: 116 lb
