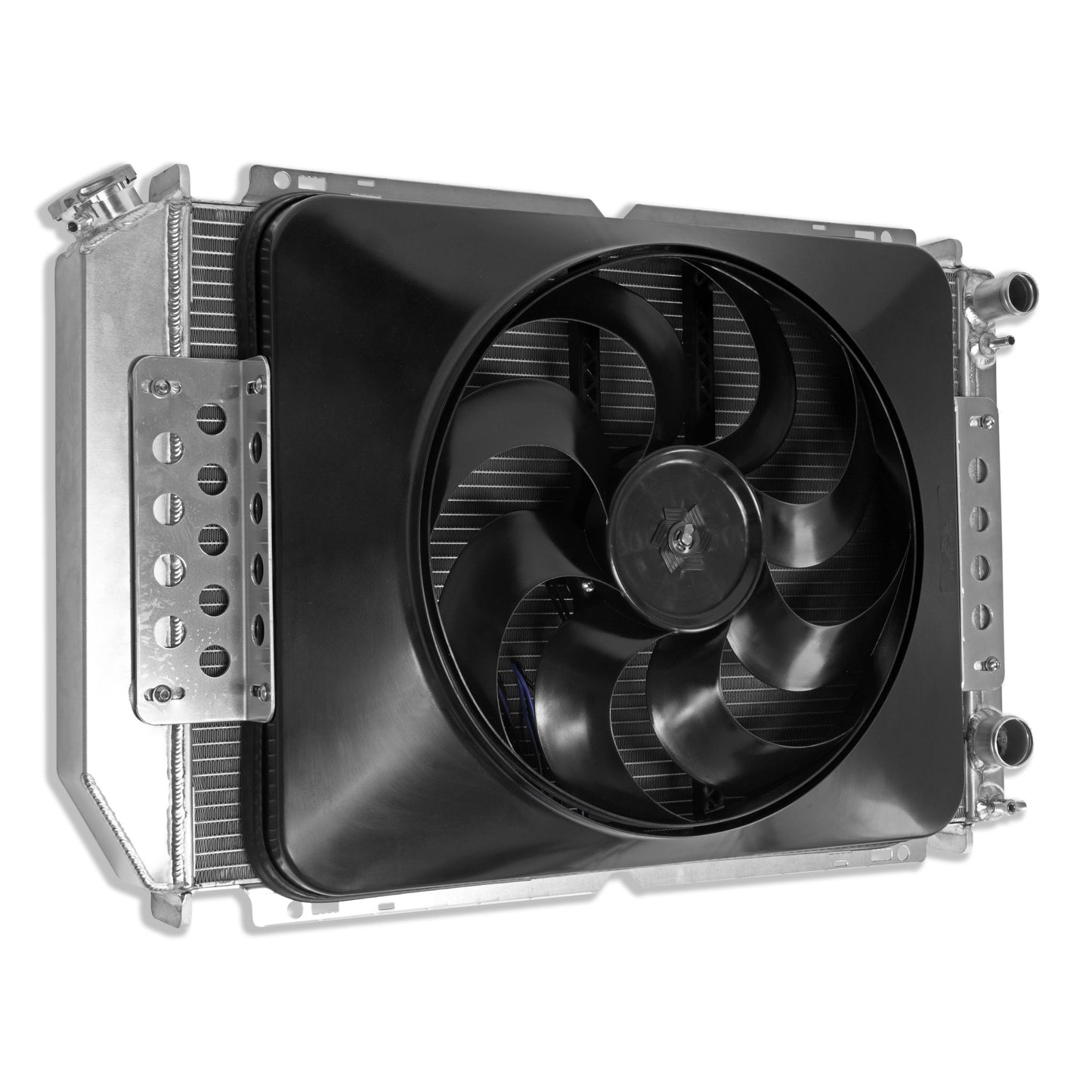

Flex-A-Lite - Extruded Core Radiator 315561

1979-1993 Fox Body Mustang LS Rad/ Fan/Combo

Attributes:

• GTIN: 00088657810364
• Brand Name: Flex-A-Lite
• Airflow (CFM): 3300
• Amp Draw: 18
• CFM: 3300
• Controller: Adjustable Thermostat with A/C Relay
• Core Height (in): 17.24
• Core Thickness (in): 2.56
• Core Width (in): 24.5
• Fan Diameter (inches): 15
• Flex-A-Lite Electric Fan PN: 180
• Flex-A-Lite Electric Fan: 180
• Fuse Rating: 40
• Inlet Location (Upper/Lower Passenger/Driver Side): Upper Passenger's Side
• Inlet Size (in): 1.25
• Item Depth: 6.24
• Item Height: 18.99
• Item Width: 28.75
• Meta Description: Direct-fit Flex-A-Lite Extruded Core performance aluminum radiator with fully-shrouded Black Magic Xtreme S-Blade electric fan for 1979-1993 Fox Body Mustang with LS engine swap.
• Meta Tags: aluminum radiator, performance, extruded core, electric fan, black magic, fox body, ford mustang, ls engine
• Meta Title: Flex-A-Lite Extruded Core Radiator and Electric Fan 1979-1993 Fox Body Mustang LS Engine
• Number of Blades: 8
• Outlet Location (Upper/Lower Passenger/Driver Side): Lower Passenger's Side
• Outlet Size (in): 1.5
• Overall Height (in): 18.99
• Overall Thickness (in): 6.24
• Overall Width (in): 28.75
• Product Name: Flex-A-Lite Extruded Core Radiator and Electric Fan 1979-1993 Fox Body Mustang LS Engine
• Radiator Style (Downflow/Crossflow): Crossflow
• Reversible: Yes
• Rotation: Standard
• Voltage: 12
• Weight: 27
• With Fan: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13 x 45 x 27 inches
• Weight: 27 lb
