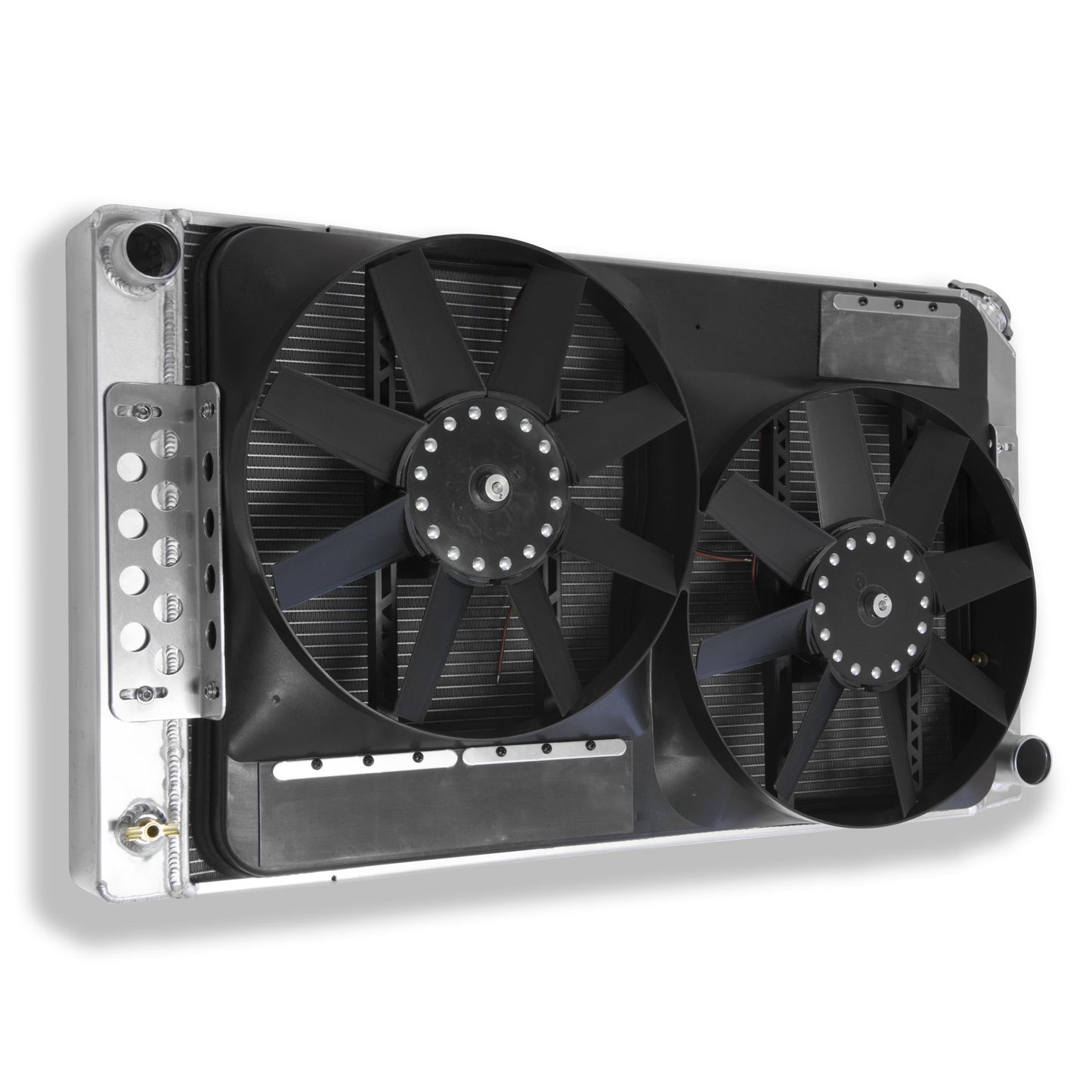

Flex-A-Lite - Extruded Core Radiator 316060

1968-1972 Chevelle (and other GM A-Bodies Rad/ Fan/Combo

Attributes:

• GTIN: 00088657810227
• Brand Name: Flex-A-Lite
• Airflow (CFM): 4600
• Amp Draw: 28
• CFM: 4600
• Controller: Variable Speed Controller
• Core Height (in): 18.59
• Core Thickness (in): 2.99
• Core Width (in): 28.25
• Fan Diameter (inches): Dual 13.5
• Flex-A-Lite Electric Fan PN: 295
• Flex-A-Lite Electric Fan: 295
• Fuse Rating: 40
• Inlet Location (Upper/Lower Passenger/Driver Side): Upper Driver's Side
• Inlet Size (in): 1.5
• Item Depth: 6.16
• Item Height: 19.06
• Item Width: 33.25
• Meta Description: Direct-fit Flex-A-Lite Extruded Core performance aluminum radiator and dual electric fan system for 1968-1972 Chevelle and other GM A-Bodies.
• Meta Tags: aluminum radiator, performance, extruded core, chevelle, electric fan
• Meta Title: Flex-A-Lite Extruded Core Radiator and Electric Fan 1968-1972 Chevelle and other GM A-Bodies
• Number of Blades: 8
• Outlet Location (Upper/Lower Passenger/Driver Side): Lower Passenger's Side
• Outlet Size (in): 1.75
• Overall Height (in): 19.06
• Overall Thickness (in): 6.16
• Overall Width (in): 33.25
• Product Name: Flex-A-Lite Extruded Core Radiator and Electric Fan 1968-1972 Chevelle and other GM A-Bodies
• Radiator Style (Downflow/Crossflow): Crossflow
• Reversible: No
• Rotation: Standard
• Voltage: 12
• Weight: 36
• With Fan: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13 x 45 x 27 inches
• Weight: 36 lb
