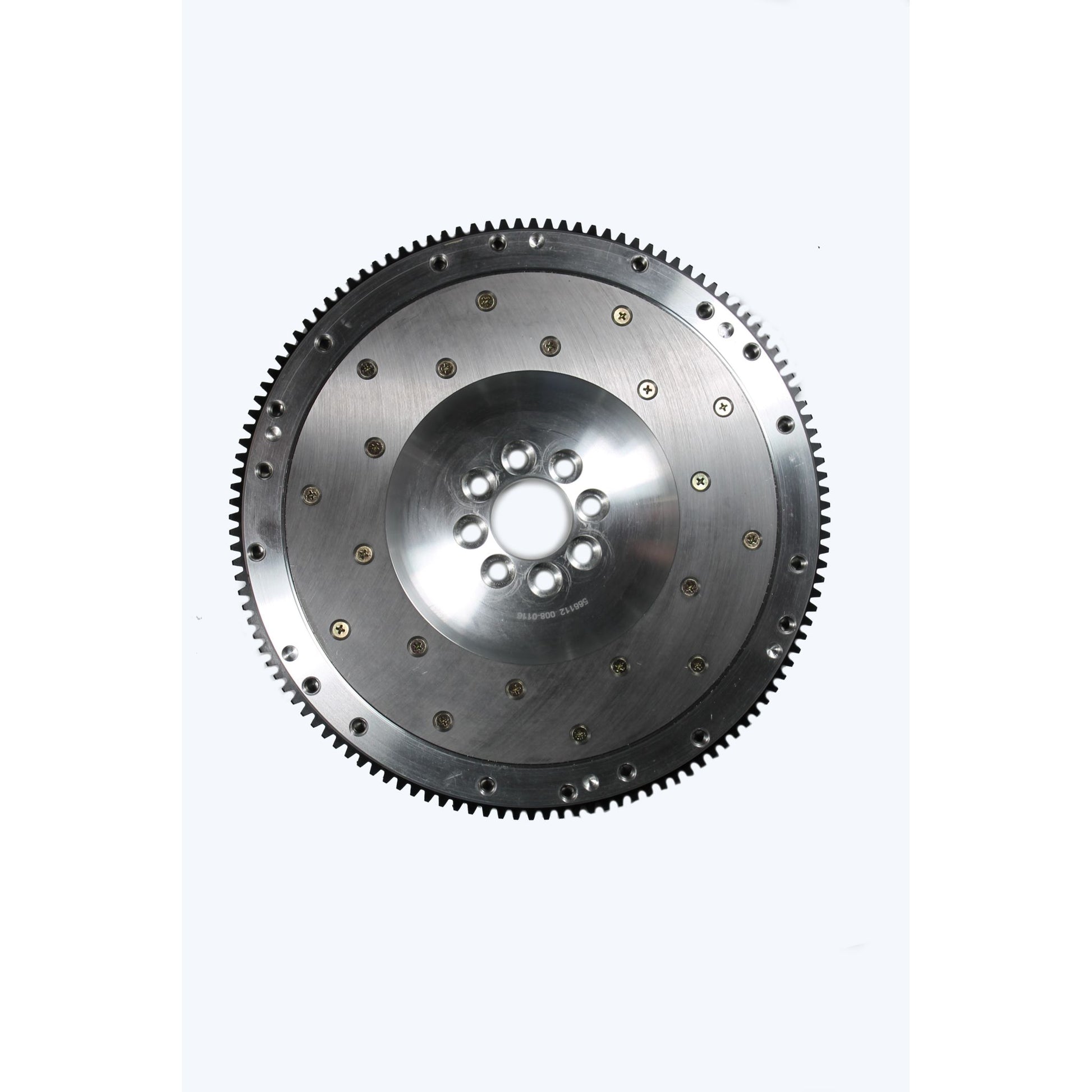

McLeod Flywheel Aluminum:Chevrolet:2009-UP LS-X,LT-X 8 Bolt Crank:168T:0Bal:15Lbs 560538

Mcleod Steel Flywheels Are Perfect For Street Applications Where Easy Stop Light Acceleration Is Desired. They Are Also Recommended For Rock Crawlers And Off Road Driving. Our Steel Flywheels Are Cnc Machined From Billet Alloy Steel. They Have 1045 Hardened Steel Ring Gears.

• McLeod Racing Billet Aluminum flywheels is the best choice for customers that want a dependable good quality Aluminum flywheel. Made from Billet Aluminum 6060-T6 the McLeod Racing flywheels are SFI rated to almost 9000 RPM.

Attributes:

• GTIN: 00887753317001
• Brand Name: McLeod
• Make: Chevrolet
• Ring Gear: 168 tooth
• Flywheel Material: Aluminum
• Weight: 15 Lbs
• Clutch Pattern 1: 11In. & 12In. B&B & Diaphragm Shouldered Bolt
• Clutch Pattern 2: 12In. LS1/LS6 Diaphragm, Metric Bolts, With Dowel Pins
• Disc Diameter: 11In./12In.
• Engine: LS-X 376, LS-X 454 Crate Engine 8 Bolt Crank
• Engine Balance: Internal Balance
• NOTE :: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 15 lb
