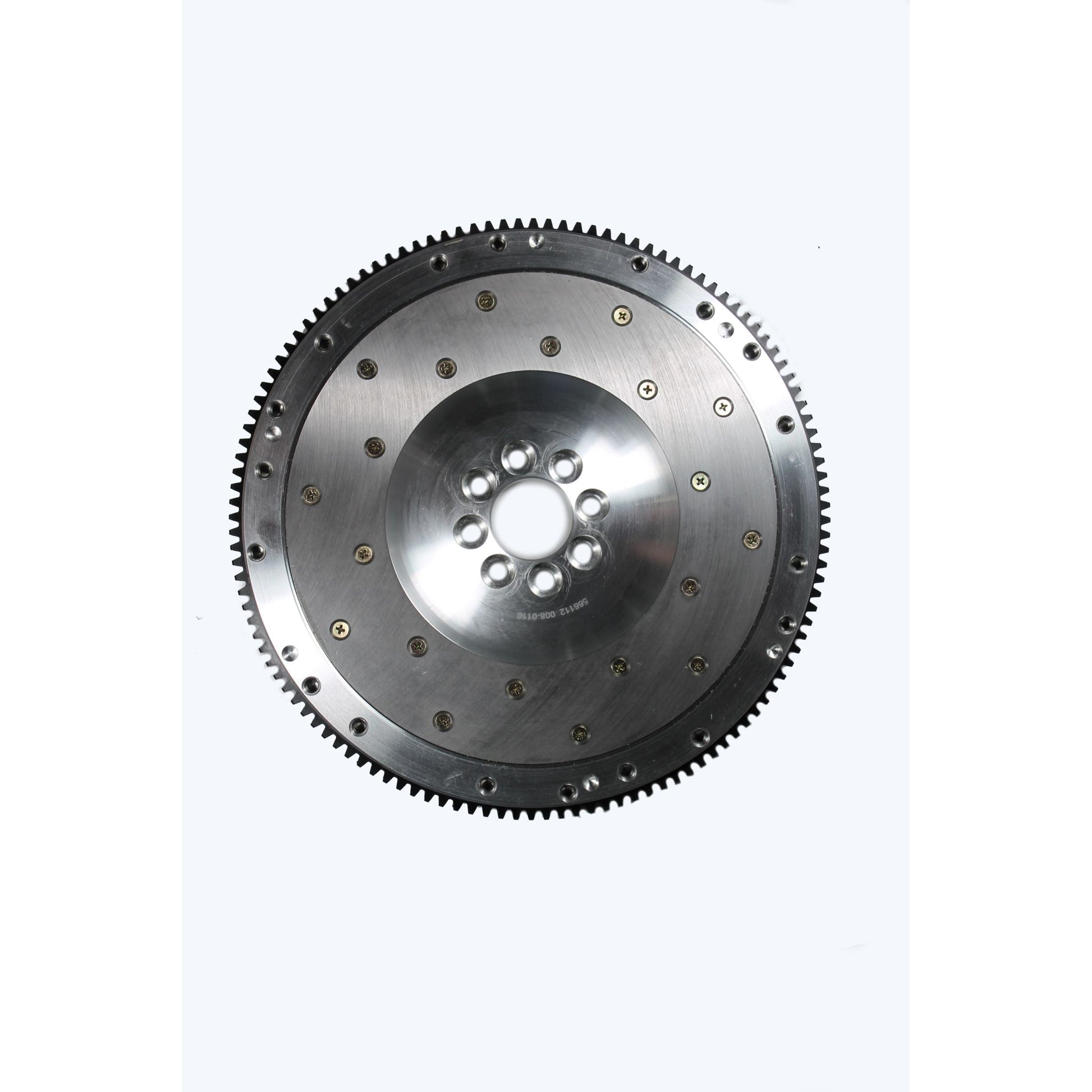

McLeod Flywheel Aluminum:Ford:1996-17 3.7L,4.6L,5.0L:0Bal:15Lbs:8Blt Crnk:164T 563408

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

• McLeod Racing Billet Aluminum flywheels is the best choice for customers that want a dependable good quality Aluminum flywheel. Made from Billet Aluminum 6060-T6 the McLeod Racing flywheels are SFI rated to almost 9000 RPM.

Attributes:

• GTIN: 00887753012258
• Brand Name: McLeod
• Make: Ford
• Ring Gear: 164 tooth
• Flywheel Material: Aluminum
• Weight: 15 Lbs
• Clutch Patterns: 10.5In. Mustang Diaphragm 1986-2000 with Dowel Pin Holes
• Clutch Pattern 2: 2001.5-2010 11In. Diaphragm with Dowl Pin Hole
• Disc Diameter: 10.5In./11In.
• Engine: 1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank
• NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• NOTE 2:: This Flywheel will not bolt up to the OEM 2012-Up Pressure Plate with factory 9 bolt pressure plate pattern and 8 mm Dowel Pins. Please call McLeod Tech for recommendation (714) 630-2764.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 13 lb
