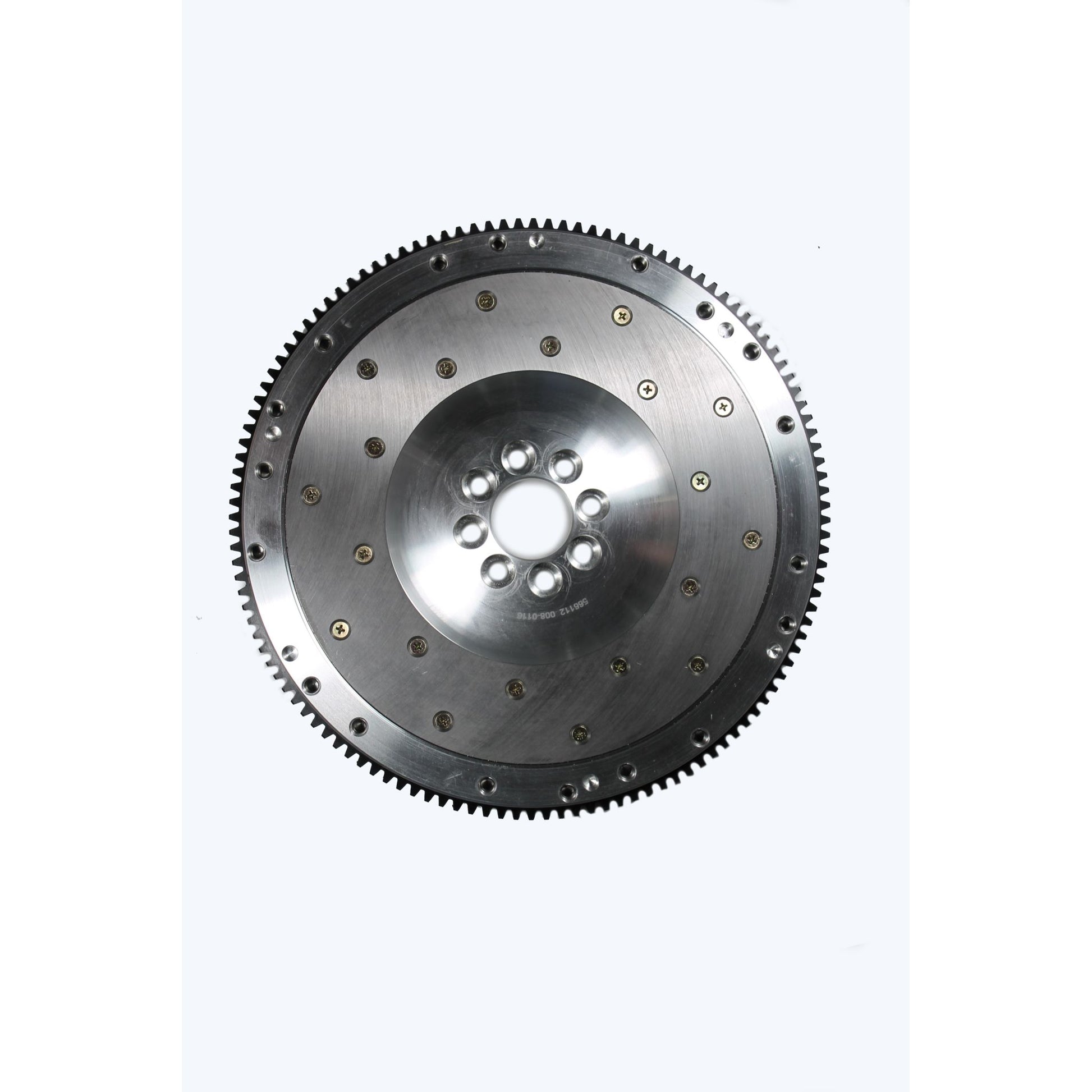

McLeod Flywheel Aluminum:Mopar:1964-03 340,360,383,440:6 Bolt Crank:15Lbs:0Bal:130T 564102

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

Attributes:

• GTIN: 00887753314284
• Brand Name: McLeod
• Make: Mopar
• Ring Gear: 130 tooth
• Flywheel Material: Aluminum
• Weight: 15 Lbs
• Disc Diameter: 10In./10.5In./10.95In.
• Clutch Patterns: 10In. & 10.5In. Long & 10In. Diaphragm
• Clutch Pattern 2: 10In.,10.5In. & 10.95In. B-B & Diaphragm
• Engine: 340 1971-76 With Cast Crank
• Engine 2: 360 1971-2002
• Engine 3: 1994-2002 Magnum Engines
• Engine 4: 1971-Up 383/400/440 With Cast Crank
• Engine 5: 1970-72 440 With 4BBL & 6BBL
• NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 13 lb
