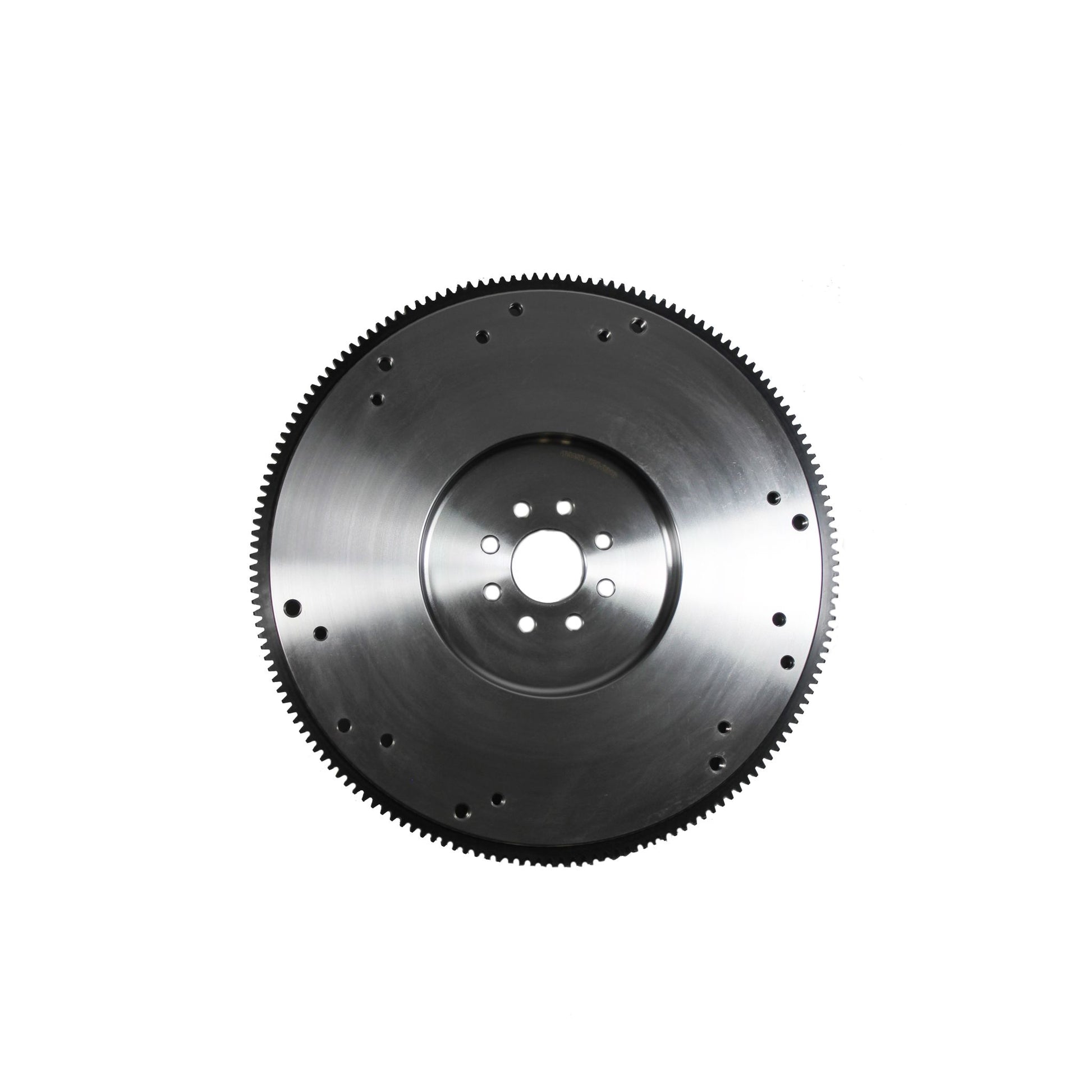

McLeod Flywheel: Steel:Mopar:1964-03 340,360,383,440:6 Blt Crank:30 Lbs:0Bal:143T 464202

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• McLeod Racing Billet Steel flywheels is the best choice for customers that want a dependable good quality steel flywheel. Made from Billet steel the McLeod Racing flywheels are SFI rated to almost 9000 RPM.

Attributes:

• GTIN: 00887753011947
• Brand Name: McLeod
• Make: Mopar
• Ring Gear: 143 tooth
• Flywheel Material: Steel
• Weight: 30 Lbs
• Disc Diameter: 10In./10.5In./10.95In./11In.
• Clutch Patterns: 10In. & 10.5In. Long & 10In. Diaphragm
• Clutch Pattern 2: 10In.,10.5In. & 10.95In. B-B & Diaphragm
• Clutch Pattern 3: 11In., 12In. Borg & Beck or Diaphragm.
• Engine: 340 1971-76 With Cast Crank
• Engine 2: 360 1971-2002
• Engine 3: 1994-2002 Magnum Engines
• Engine 4: 1971-Up 383/400/440 With Cast Crank
• Engine 5: 1970-72 440 With 4BBL & 6BBL
• NOTE:: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 lb
