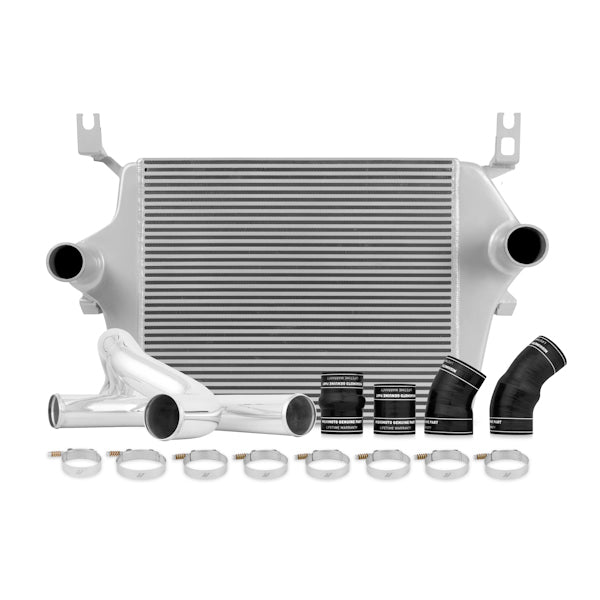

Mishimoto Ford 6.0L Powerstroke Intercooler Kit, Silver MMINT-F2D-03KSL

our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow.The pipes are constructed of mandrel bent aluminum polished to a mirror finish.This kit includes Mishimoto silicone boots with DuraCore technology and constant-tension T-bolt clamps for accurate and consistent holding power.Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots.Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil.This effectively increases the life of our boots by preventing leaks and blowouts.This package is rounded out with the Mishimoto intercooler, featuring a significant increase in core volume, extremely durable cast aluminum end tanks, and a bar-and-plate core, all designed to provide cool, dense air to your engine.Our intercooler reduces pressure drop, which results in an overall increase in engine efficiency.All the components in this kit are engineered to last, just like your truck.Offered with either a black or silver core, the Mishimoto 6.0L Powerstroke intercooler kit is protected by our signature lifetime warranty.

• Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• Includes hot-side and cold-side intercooler pipes and boots
• 3.35" bar-and-plate core is 33% thicker than factory
• 3.0" mandrel-bent aluminum polished pipes eliminate restrictive bends
• 32.5% increase in core volume
• End tanks strategically designed for optimal airflow
• Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• Reduces turbo stress and extends life
• Intercooler available in Sleek Silver and Stealth Black
• Includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant-Tension T-bolt Clamps
• Provides improved airflow and lowers intake air temperature
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748666004924
• Brand Name: Mishimoto
• TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 38.5
• TechSpec Overall Height (in): 25.2
• TechSpec Overall Width (in): 7.5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 3.35
• TechSpec Core Length (in): 25.75
• TechSpec Core Height (in): 21.54
• TechSpec Inlet (in): 3.25
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): N/A
• TechSpec Note: Note: This kit will not fit vehicles equipped with dual alternators.----This kit replaces intercooler inlet pipes with the following part numbers:--2005-2007: C3Z-6K769-AA--2003-2004: 6C3Z-6K769-B
• TechSpec Includes: (1) Mishimoto Intercooler--(2) Aluminum Intercooler Pipes--(4) Silicone Boots with DuraCore Technology--(8) Constant-Tension T-Bolt Clamps--(2) Aluminum Mishimoto M Logo Badges--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• SellingPoint02: Includes hot-side and cold-side intercooler pipes and boots
• SellingPoint03: 3.35-in bar-and-plate core is 33-percent thicker than factory
• SellingPoint04: 3.0-in mandrel-bent aluminum polished pipes eliminate restrictive bends
• SellingPoint05: 32.5-percent increase in core volume
• SellingPoint06: End tanks strategically designed for optimal airflow
• SellingPoint07: Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• SellingPoint08: Reduces turbo stress and extends life
• SellingPoint09: Intercooler available in Sleek Silver and Stealth Black
• SellingPoint10: Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-bolt Clamps
• SellingPoint11: Provides improved airflow and lowers intake air temperatures
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.5 x 12 x 46.5 inches
• Weight: 80 lb
