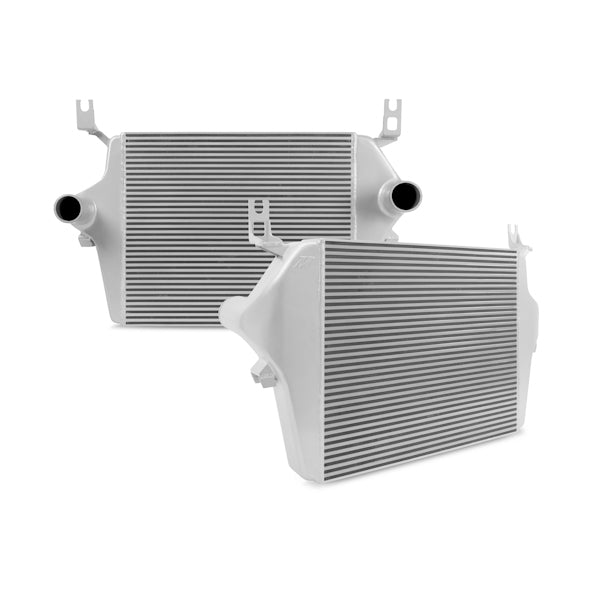

Mishimoto Ford 6.0L Powerstroke Intercooler, Silver MMINT-F2D-03SL

this results in numerous performance benefits including increased pressure tolerance and lower EGTs.We engineered this intercooler to provide substantial benefits on a stock truck, and also to support the power and boost levels of a highly modified truck.Offered in black or silver, the Mishimoto 6.0L Powerstroke intercooler is protected by our signature lifetime warranty.

• Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• 3.35" bar-and-plate core is 33% thicker than factory
• 32.5% increase in core volume
• End tanks strategically designed for optimal airflow
• Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• Reduces turbo stress and extends life
• Available in Sleek Silver and Stealth Black
• Provides improved airflow and lowers intake air temperatures
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748666005433
• Brand Name: Mishimoto
• TechSpec Applications: 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke--2003-2005 Ford Excursion w/ 6.0L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 38.5
• TechSpec Overall Height (in): 25.2
• TechSpec Overall Width (in): 7.5
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): 25.75
• TechSpec Core Height (in): 21.54
• TechSpec Inlet (in): 3.25
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): N/A
• TechSpec Note: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• SellingPoint02: 3.35-in bar-and-plate core is 33-percent thicker than factory
• SellingPoint03: 32.5-percent increase in core volume
• SellingPoint04: End tanks strategically designed for optimal airflow
• SellingPoint05: Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
• SellingPoint06: Reduces turbo stress and extends life
• SellingPoint07: Available in Sleek Silver and Stealth Black
• SellingPoint08: Provides improved airflow and lowers intake air temperatures
• SellingPoint09: Mishimoto Lifetime Warranty
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40.5 x 28 x 9 inches
• Weight: 42 lb
