Mishimoto Ford 6.7L Powerstroke Air-to-Water Performance Intercooler Kit, 2011+ MMINT-F2D-11KBKP

Technology. Aside from being more durable than stock, the Mishimoto 6.7L Powerstroke intercooler also flows better. Flow bench testing showed that the Mishimoto intercooler flowed 22-percent better than the stock cooler. On the dyno, that extra flow provided our stock 6.7L with 40 lb. ft. more torque. This kit is available with a powder coated sleek silver, stealthy micro-wrinkle black, or micro-wrinkle blue cooler and polished pipes to match any style. Like all Mishimoto products, our 2011+ Ford 6.7L Powerstroke Air-to-Water intercooler is covered by our Mishimoto Lifetime Warranty.

• Direct fit for all 2011+ Ford 6.7L Powerstroke
• 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
• Dyno-proven 40 lb-ft torque gains without other modifications
• Includes Mishimoto mandrel-bent aluminum intercooler pipes for greater durability
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580034800
• Brand Name: Mishimoto
• TechSpec Applications: 2011+ Ford Super Duty 6.7L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 4.48
• TechSpec Core Length (in): 10.59
• TechSpec Core Height (in): 6.69
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Weight (lbs): N/A
• TechSpec Note: Patent #D907063

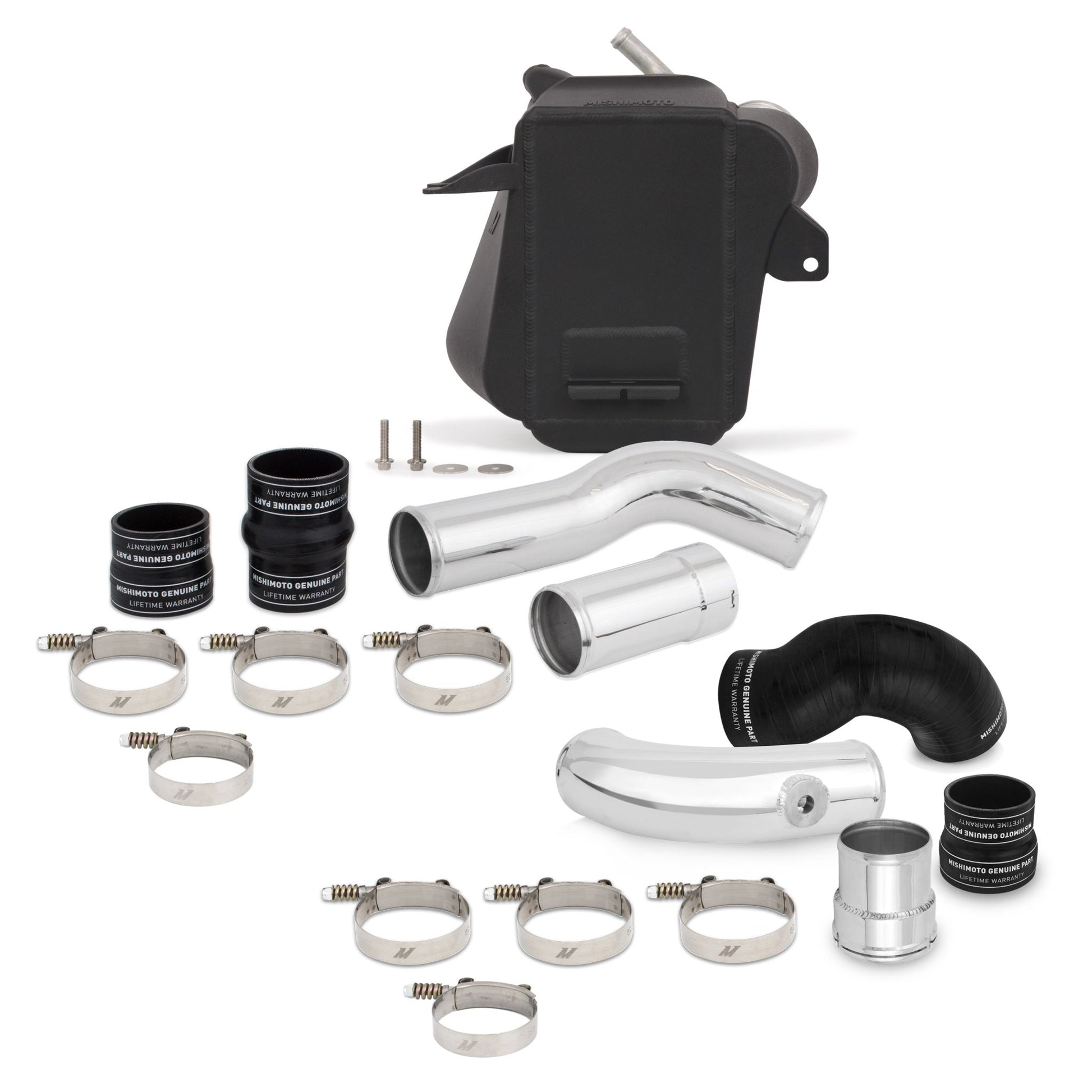

• TechSpec Includes: (1) Mishimoto Air-to-Water Intercooler--(1) Mandrel-Bent Cold-Side Pipe--(1) Mandrel-Bent Hot-Side Pipe--(2) CNC-Machined Aluminum Quick-Disconnect Couplers--(4) Silicone Boots w/ Duracore Technology--(8) Constant-Tension Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM)
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for all 2011+ Ford 6.7L Powerstroke
• SellingPoint02: 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
• SellingPoint03: Dyno-proven 40 lb-ft torque gains without other modifications
• SellingPoint04: Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
• SellingPoint05: Bar-and-plate core for efficient cooling and unsurpassed strength
• SellingPoint06: No tune required-Intercooler can be installed on a completely stock or modified truck
• SellingPoint07: Includes Mishimoto mandrel-bent aluminum intercooler pipes for greater durability
• SellingPoint08: Includes Mishimoto Silicone Boots with DuraCore technology and Constant Tension Worm Gear Clamps
• SellingPoint09: Available in a Micro-Wrinkle Silver, Micro-Wrinkle Black, or Micro-Wrinkle Blue powder coated finish
• SellingPoint10: Patent numberD907,063
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 12 x 27 inches
• Weight: 38 lb
