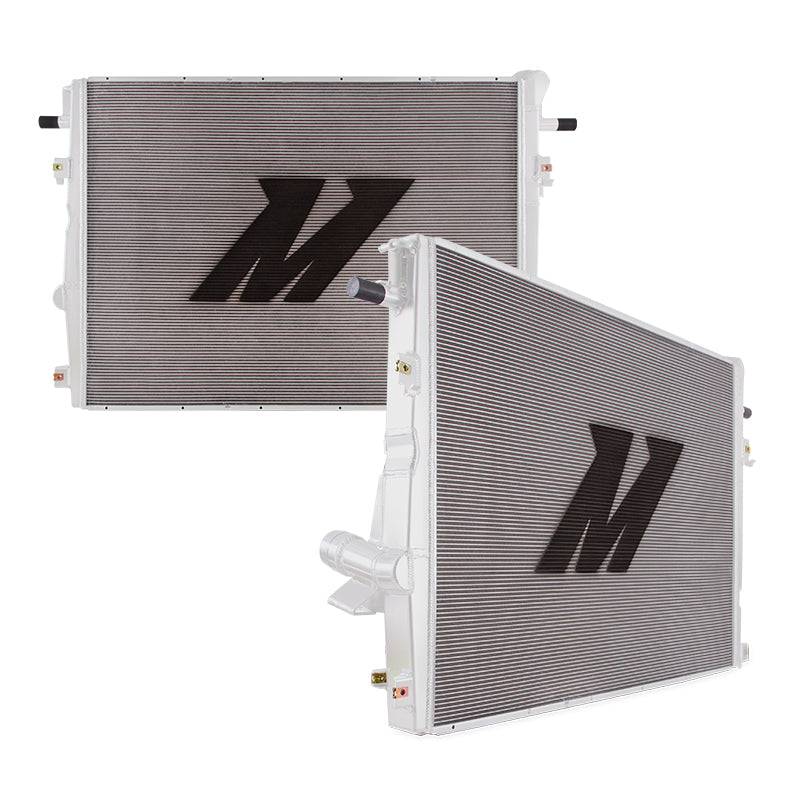

Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator, 2011-2016 MMRAD-F2D-11V2

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

• Direct fit for 2011-2016 Ford 6.7L Powerstroke
• Extruded tubes with internal struts for increased strength and pressure tolerance
• 10-percent thicker core and 37-percent increase in coolant capacity
• Patent pending
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580034893
• Brand Name: Mishimoto
• TechSpec Overall Height (in): 30.2
• TechSpec Overall Length (in): 48.9
• TechSpec Overall Width (ins): 8
• TechSpec Core Length (in): 27.76
• TechSpec Core Height (in): 38.39
• TechSpec Fluid Capacity (gal): 11.61
• TechSpec Rows: 2
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Core Thickness (in): 1.89
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec DPI: 13230
• TechSpec Material: Aluminum
• TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Note: N/A
• TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
• SellingPoint01: Direct fit for the 6.7L Powerstroke, 2011-2016
• SellingPoint02: 37-percent increase in coolant capacity
• SellingPoint03: 20-percent increase in fin area
• SellingPoint04: 10-percent thicker core than factory
• SellingPoint05: 100-percent brazed aluminum core
• SellingPoint06: CNC-machined, factory-style, quick-disconnect inlet and outlet
• SellingPoint07: TIG-welded to perfection
• SellingPoint08: Includes magnetic oil drain plug
• SellingPoint09: Patent numberD717,218
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 52 x 33 x 9.8 inches
• Weight: 57 lb
