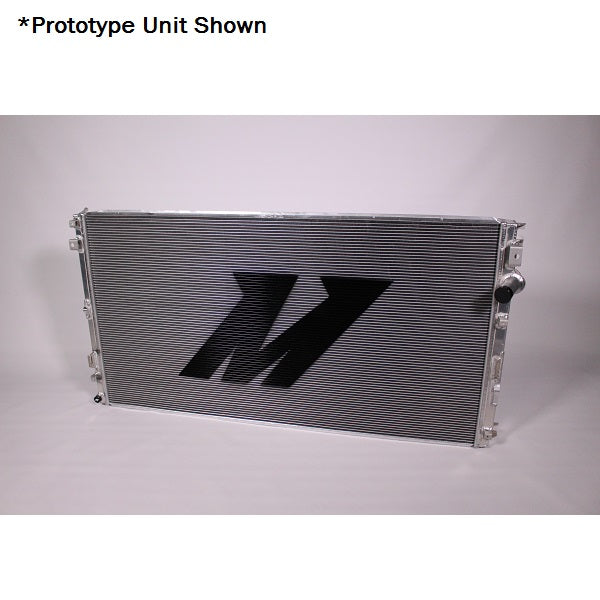

Mishimoto Ford 6.7L Powerstroke Aluminum Secondary Radiator, 2011-2016 MMRAD-F2D-11S

Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Secondary Radiator to keep your truck on the road and running cool. The 6.7L Powerstroke has two separate cooling systems, with this radiator cooling the secondary system which maintains ideal temperatures for the transmission cooler, EGR cooler, fuel cooler, and most importantly, the liquid-to-air charge air cooler. This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core 19-percent thicker than factory. During testing, we saw at coolant temperature reduction of at least 7 F and a 7 reduction in charge air temperatures. Our 6.7 Powerstroke aluminum secondary radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment, fitting both the factory and Mishimoto Aluminum Radiators, for an easy installation process. As with all our Powerstroke performance parts, this aluminum radiator is protected by the Mishimoto Lifetime Warranty.

• Direct fit for the 2011-2016 6.7L Powerstroke
• Reduces coolant temperatures by up to 7°F
• Reduces charge air cooler temperatures by up to 6°F
• Reduces transmission, fuel and EGR temperatures
• Removable thermostat housings
• 27% increase in fin area
• 19% thicker core than factory
• 16% increase in cooling tube surface area
• 100% brazed aluminum core
• TIG-welded to perfection
• Fits with factory and Mishimoto Primary radiators
• Includes magnetic oil drain plug
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354028171
• Brand Name: Mishimoto
• TechSpec Core Length (in): 39.4
• TechSpec Core Height (in): 21
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Rows: 2
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Core Thickness (in): 1.96
• TechSpec Drain Plug Thread Size: M12 x 1.5
• TechSpec DPI: 13339
• TechSpec Material: Aluminum
• TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Note: N/A
• TechSpec Includes: Mishimoto Radiator--(2) Cast Thermostat Housings-- Magnetic Drain Plug w/ Dowty Oil Seal--(4) Rubber Bushings & Metal Collars--(3) Hardware Packs--Mishimoto Lifetime Warranty
• SellingPoint01: Direct fit for the 2011-2016 6.7L Powerstroke
• SellingPoint02: Reduces coolant temperatures by up to 7F
• SellingPoint03: Reduces charge air cooler temperatures by up to 6F
• SellingPoint04: Reduces transmission, fuel and EGR temperatures
• SellingPoint05: Removable thermostat housings
• SellingPoint06: 27-percent increase in fin area
• SellingPoint07: 19-percent thicker core than factory
• SellingPoint08: 16-percent increase in cooling tube surface area
• SellingPoint09: 100-percent brazed aluminum core
• SellingPoint10: TIG-welded to perfection
• SellingPoint11: Fits with factory and Mishimoto Primary radiators
• SellingPoint12: Includes magnetic oil drain plug
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Overall Height (in): 22
• TechSpec Overall Length (in): 48
• TechSpec Overall Width (ins): N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 8 x 28 inches
• Weight: 45 lb
