Mishimoto Ford 6.7L Powerstroke Intercooler Pipe and Boot Kit, 2017+ MMICP-F2D-17KBK

Mishimoto has developed an intercooler pipe and boot kit for the 2017+ 6.7L Powerstroke for customers looking to upgrade both cold-side and hot-side intercooler pipes at the same time! Upgrade to the Mishimoto kit for increased reliability, durability, and performance. The pipes are constructed of mandrel bent aluminum with a polished finish and eliminate restrictive bends in the factory pipe, allowing for improvements in airflow, power, and EGTs. The engineers at Mishimoto designed CNC-machined quick-disconnect flanges and IAT sensor housing to allow for an easy install in less than two hours. This intercooler pipe and boot kit is direct fit, retaining all factory emissions components and does not require the use of a tuner. This kit includes Mishimoto silicone Boots with DuraCore technology. Mishimoto DuraCore technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone Diesel Boots. Compared to normal silicone, DuraCore provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. To add even more reliability this kit includes Mishimoto Constant-Tension T-bolt Clamps for accurate and consistent holding power. This pipe and boot kit is the perfect addition to the Mishimoto 6.7L Powerstroke Performance Primary Radiator. It is made in the USA and includes the Mishimoto Lifetime Warranty.

• Direct fit for the 6.7L Powerstroke, 2017+
• Mandrel-bent, polished aluminum pipes eliminates restrictive bends
• CNC-machined stock-style coupling allows for quick install
• Includes Mishimoto Silicone Boots with DuraCore
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580033629
• Brand Name: Mishimoto
• TechSpec Applications: 2017+ Ford F-250 w/ 6.7L Powerstroke--2017+ Ford F-350 w/ 6.7L Powerstroke--2017+ Ford F-450 w/ 6.7L Powerstroke--2017+ Ford F-550 w/ 6.7L Powerstroke
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Weight (lbs): N/A
• TechSpec Note: This intercooler pipe and boot kit will not fit with our 2011-2016 Ford 6.7L Powerstroke intercooler. For a complete intercooler and pipe kit for 2017+ models, please see our--Mishimoto has improved this product by including an O-ring and spring clip for both the cold and hot-side pipes. If you did not receive these components with your kit, contact our customer experience team or remove the stock O-ring and spring clip and install them onto your Mishimoto CNC-machined coupling.

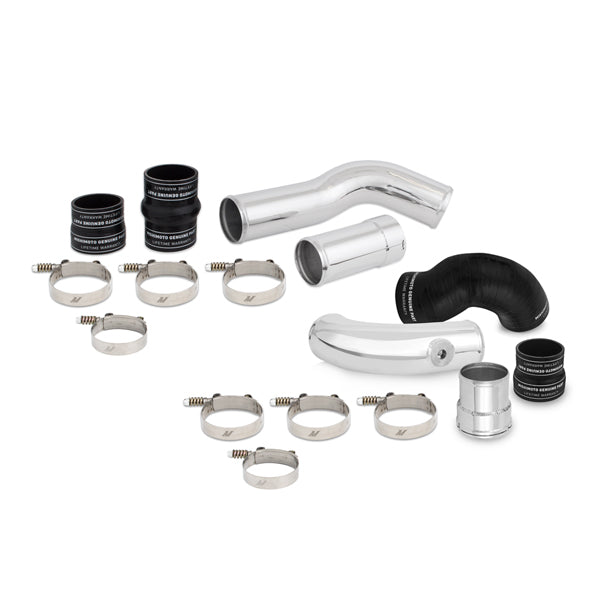

• TechSpec Includes: (1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(1) Aluminum Intercooler Pipe--(4) Silicone Boots with DuraCore Technology--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 6.7L Powerstroke, 2017+
• SellingPoint02: Mandrel-bent, polished aluminum pipes eliminates restrictive bends
• SellingPoint03: CNC-machined stock-style coupling allows for quick install
• SellingPoint04: Includes Mishimoto Silicone Boots with DuraCore Technology and Mishimoto Constant Tension T-bolt Clamps
• SellingPoint05: Installs in under one hour
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20 x 16 x 10 inches
• Weight: 12 lb
