Mishimoto Ford F-150 3.5L EcoBoost Performance Intercooler Kit, 2017-2021 MMINT-F35T-17KPBK

Mishimoto has developed a direct-fit 2017-2021 3.5L F-150 EcoBoost Intercooler and Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore? technology. The larger volume of our pipes allows your 2017-2021 3.5L EcoBoost to breathe free and make the most of the its two turbochargers. DuraCore? boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77-percent over stock and external fin surface area by 163-percent. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017 3.5L F-150 EcoBoost Intercooler and Pipe kit is backed by our Lifetime Warranty.

• Direct fit for 2017-2021 Ford F-150 3.5L EcoBoost
• Increased intercooler pipe volume allows for better flow and power potential
• Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• 10?F (5.5?C) reduction in intake air temp
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580033896
• Brand Name: Mishimoto
• TechSpec Applications: 2017+ Ford F-150 3.5L V6 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost
• TechSpec Engine Codes: 3.5L V6 EcoBoost
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 29
• TechSpec Overall Height (in): 9.5
• TechSpec Overall Width (in): 7
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 4.7
• TechSpec Core Length (in): 19.6
• TechSpec Core Height (in): 9.4
• TechSpec Inlet (in): 2.5
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): N/A
• TechSpec Note: N/A

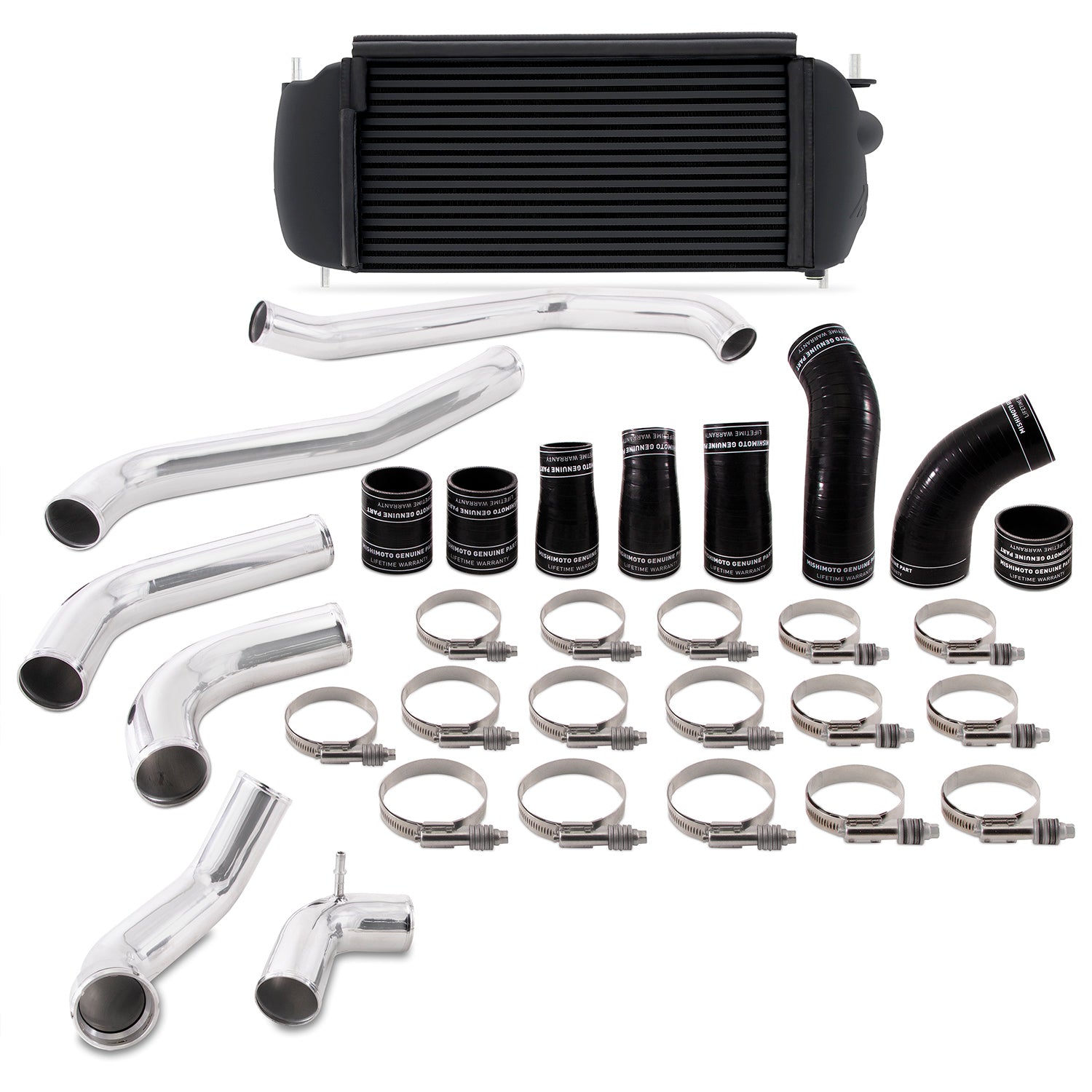

• TechSpec Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for 2017+ Ford F-150 3.5L EcoBoost
• SellingPoint02: Increased intercooler pipe volume allows for better flow and power potential
• SellingPoint03: Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
• SellingPoint04: Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
• SellingPoint05: Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
• SellingPoint06: Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
• SellingPoint07: 10F (5.5C) reduction in intake air temp
• SellingPoint08: 77-percent increase in intercooler internal core volume
• SellingPoint09: 163-percent increase in external fin surface area
• SellingPoint10: All-aluminum, TIG-welded construction
• SellingPoint11: Fits with stock intercooler fans without modification
• SellingPoint12: Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 49 x 20 x 38 inches
• Weight: 68 lb
