Mishimoto Ford Focus Hot-Side Intercooler Pipe Kit, 2016-2018 MMICP-RS-16HWBK

To complete our intercooler component lineup for the 2016-2018 Ford Focus RS, we at Mishimoto would like to introduce our Hot-Side Intercooler Pipe. This pipe has a truly innovative design that helps cool more than just air intake temperatures. Not only does it increase internal volume by 40-percent over stock with 2.5 inch inlet and outlet diameters, and maintain an average pressure drop of 45-percent, the cast mid-section retains the use of the factory ducting that directs airflow to the front PTU. A standard cylindrical pipe restricts airflow, and this doesn?t help the known problem of overheating drivetrains when the RS is being pushed to its limits. Our pipe is shaped to cleanly direct air right to the front PTU using that front duct, so airflow isn?t lost like with a traditional pipe design. In addition, this pipe comes with 5-ply, wire-reinforced silicone to attach to the turbo and intercooler, providing superior heat resistance and flexibility to accommodate for engine movement. The pipe can also fit without removing the lower cross bar. The kit comes with all necessary hardware, is a direct fit with no modifications necessary, and is backed by the Mishimoto Lifetime Warranty.

• Direct fit for the 2016--2018 Ford Focus RS
• 45-percent less pressure drop than stock hot-side pipe
• 40-percent increase in internal volume compared to stock hot-side pipe
• Fits both stock and Mishimoto Focus RS intercooler
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354036282
• Brand Name: Mishimoto
• TechSpec Applications: 2016+ Ford Focus RS
• TechSpec Engine Codes: 2.3L EcoBoost GTDi I4
• TechSpec Chassis Codes: C346
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 28.5
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): 2.5
• TechSpec Outlet (in): 2.5
• TechSpec Weight (lbs): N/A
• TechSpec Note: N/A

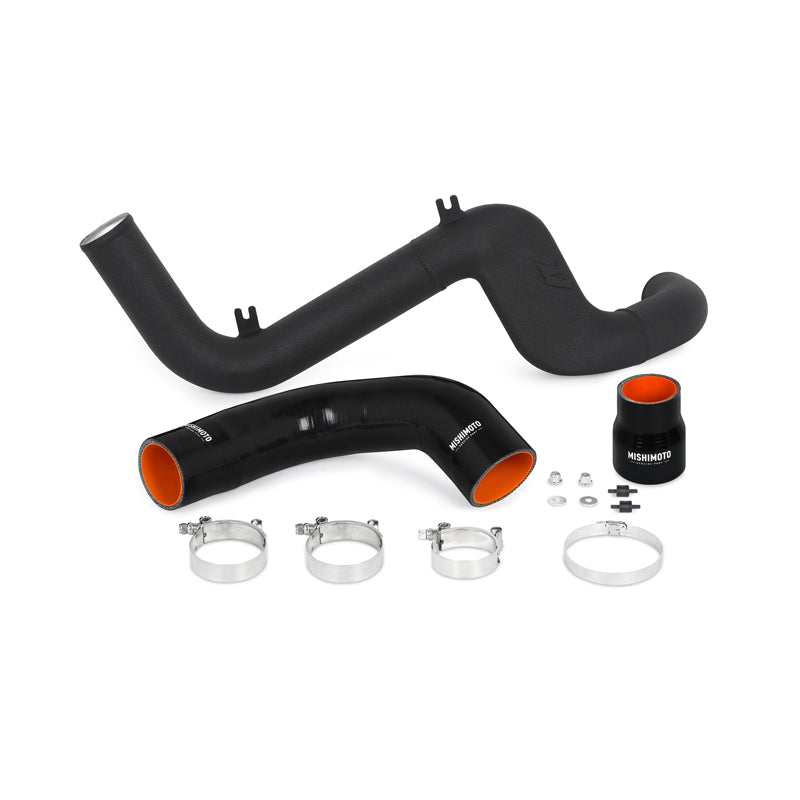

• TechSpec Includes: (1) Hot-Side Intercooler Pipe--(2) Silicone Couplers--(2) Rubber Isolators--(3) Constant-Tension T-Bolt Clamps--(1) High-Torque Worm Gear Clamp--Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
• SellingPoint02: Silicone boots absorb the stresses of excessive engine movement
• SellingPoint03: Designed to not block cooling to the PTU
• SellingPoint04: 45-percent less pressure drop than stock hot-side pipe
• SellingPoint05: 40-percent increase in internal volume compared to stock hot-side pipe
• SellingPoint06: Both Mishimoto intercooler pipes and Mishimoto intercooler provide 35-percent less pressure drop than stock setup
• SellingPoint07: Improves heat and pressure tolerance
• SellingPoint08: Available in Wrinkle Black powder-coated finish
• SellingPoint09: Fits both stock and Mishimoto Focus RS intercooler
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29.5 x 10.6 x 9.5 inches
• Weight: 8 lb
