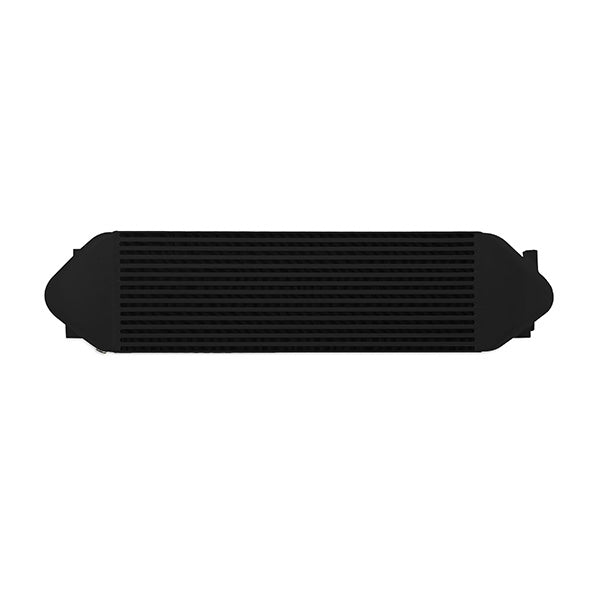

Mishimoto Ford Focus RS Intercooler 2016-2018 MMINT-RS-16BK

Say hello to our intercooler for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! This hefty, direct-fit, bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds. This intercooler is designed to function with all factory equipment on the 2016-2018 Focus RS as well as our upgraded intercooler pipes. There is no modification necessary for installation, making it a true bolt-on performance part. As with all our parts, this intercooler comes with the Mishimoto Lifetime Warranty. Order yours today!

• Direct fit for the 2016--2018 Ford Focus RS
• 40-percent reduction in IAT
• 36-percent increase in internal core volume and 214-percent increase in external fin surface area
• 7 whp and 8 wtq bolt-on power increase with stock tune
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580030536
• Brand Name: Mishimoto
• TechSpec Applications: 2016-2018 Ford Focus RS
• TechSpec Engine Codes: 2.3L EcoBoost
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 36.75
• TechSpec Overall Height (in): 8.3
• TechSpec Overall Width (in): 8.2
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): 25.6
• TechSpec Core Height (in): 8.3
• TechSpec Inlet (in): 2.75
• TechSpec Outlet (in): 2.75
• TechSpec Weight (lbs): 33
• TechSpec Note: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
• SellingPoint02: 40-percent reduction in AIT
• SellingPoint03: 80-percent increase in core size
• SellingPoint04: 36-percent increase in internal core volume and 214-percent increase in external fin surface area
• SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
• SellingPoint07: All-aluminum, TIG-welded construction
• SellingPoint08: Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
• SellingPoint09: 7 whp and 8 tq bolt-on power increase with stock tune
• SellingPoint10: Available in Sleek Silver or Stealth Black
• SellingPoint11: Mishimoto Lifetime Warranty
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 12.5 x 11 inches
• Weight: 40 lb
