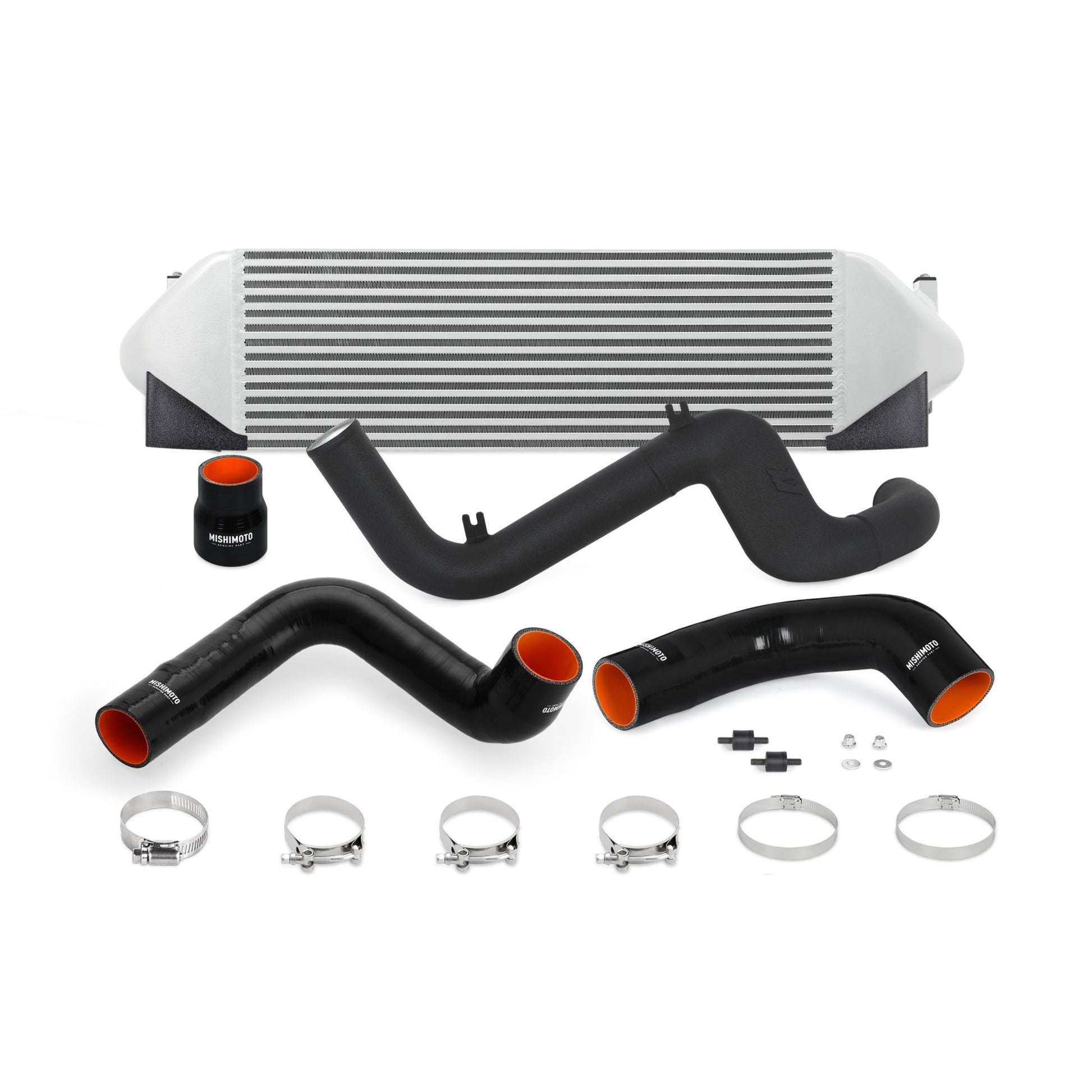

Mishimoto Ford Focus RS Performance Intercooler Kit, 2016-2018 MMINT-RS-16KSL

Say hello to our performance intercooler kit for the 2016-2018 Ford Focus RS! Whether you are a track junkie, occasionally taking your RS for some spirited driving, or making your RS a car to steal the show, this intercooler will suit your needs. Our intercooler has been beefed up with a 36-percent increase in core volume and a 214-percent increase in external fin surface area, which means increased air-cooling efficiency for your RS. Our core reduces air outlet temperature by almost 40-percent while minimizing the inlet/outlet pressure drop across the core, and provides gains of 7hp and 8ft-lbs! The hefty, direct-fit, bar-and-plate core is durable enough to wIt'stand any type of abuse you throw at it, while improving the heat transfer process both at idle and cruising speeds.This kit also includes the Mishimoto performance intercooler piping kit to further improve the flow of the charged air through your 2.3l EcoBoost. The piping kit replaces the stock hot-side pipe with our custom design which not only features a 40-percent increase in internal volume, but also is specifically shaped to direct airflow over the stock PTU cooler. Our cold-side pipe features 5-layers of wire reinforced silicone, with a larger diameter to increase the flow of the charged air, but also longevity of your turbocharging system.The Performance Intercooler Kit is available with either a silver or black, and, with all of our products, is covered under the Mishimoto Lifetime Warranty to keep you pushing the limits in your RS for a lifetime.

• Direct fit for the 2016--2018 Ford Focus RS
• 7 whp and 8 wtq bolt-on power increase with stock tune
• 36-percent increase in internal core volume and 214-percent increase in external fin surface area
• 31-percent and 40-percent increase in internal volume compared to stock cold--side and hot--side pipe, respectively
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354038811
• Brand Name: Mishimoto
• TechSpec Applications: 2016-2018 Ford Focus RS
• TechSpec Engine Codes: 2.3L EcoBoost GTDi I4
• TechSpec Chassis Codes: C346
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: 600
• TechSpec Overall Length (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): 25.6
• TechSpec Core Height (in): 8.3
• TechSpec Inlet (in): 2.75
• TechSpec Outlet (in): 2.75
• TechSpec Weight (lbs): 33
• TechSpec Note: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--(1) Left & Right Diversion Plate--(1) Hot-side Intercooler Pipe--(2) Silicone Couplers--(1) Wire-reinforced Silicone Hose--(4) T-bolt clamps--(2) High-Torque Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2016-2018 Ford Focus RS
• SellingPoint02: 80-percent increase in core size
• SellingPoint03: 36-percent increase in internal core volume and 214-percent increase in external fin surface area
• SellingPoint04: 46-percent and 45-percent less pressure drop than stock cold-side and hot-side pipe, respectively
• SellingPoint05: 31-percent and 40-percent increase in internal volume compared to stock cold-side and hot-side pipe, respectively
• SellingPoint06: Designed to not block off cooling to the PTU
• SellingPoint07: 7 whp and 8 wtq bolt-on power increase with stock tune
• SellingPoint08: Intercooler Available in Sleek Silver or Stealth Black
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 23 x 11 inches
• Weight: 53 lb
