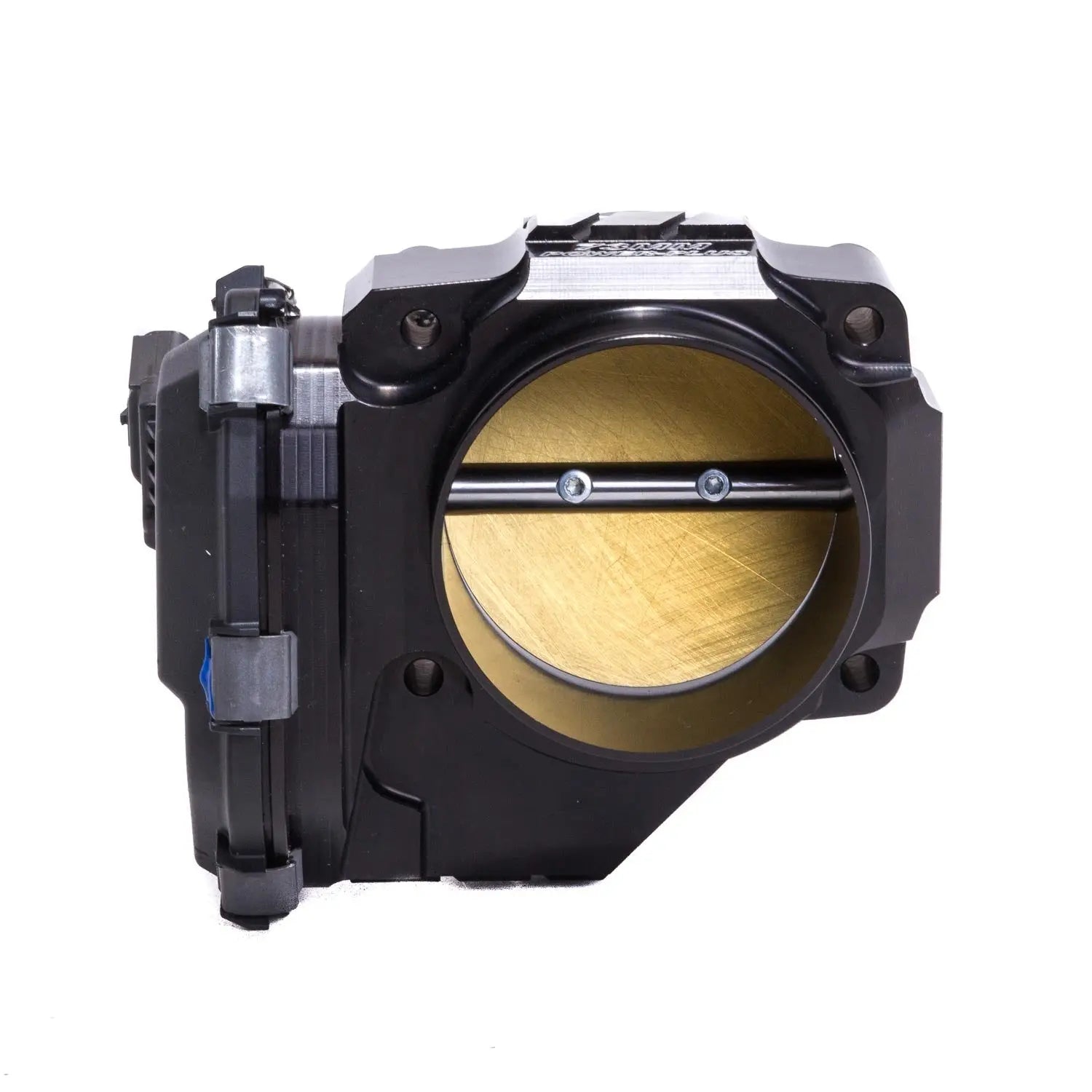

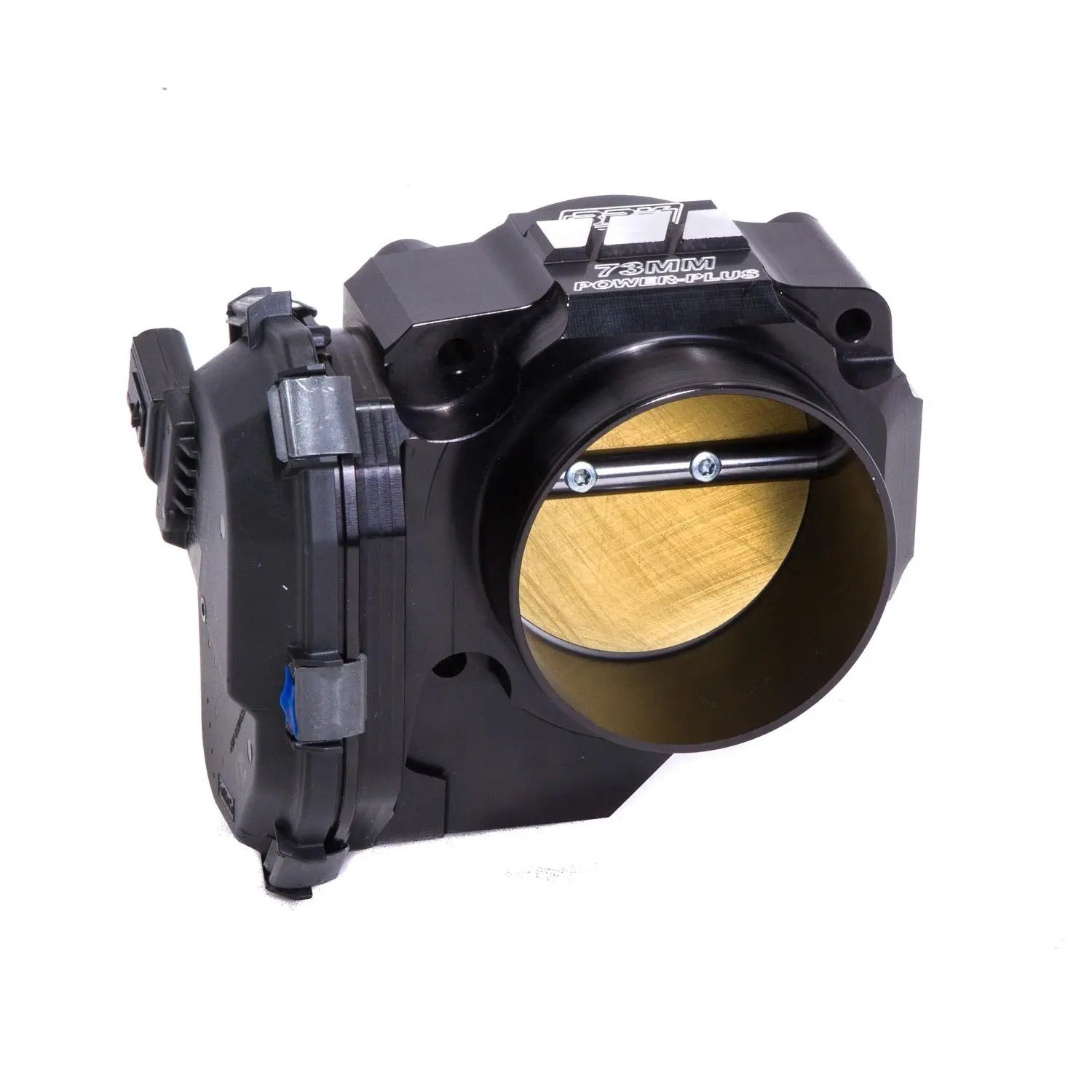

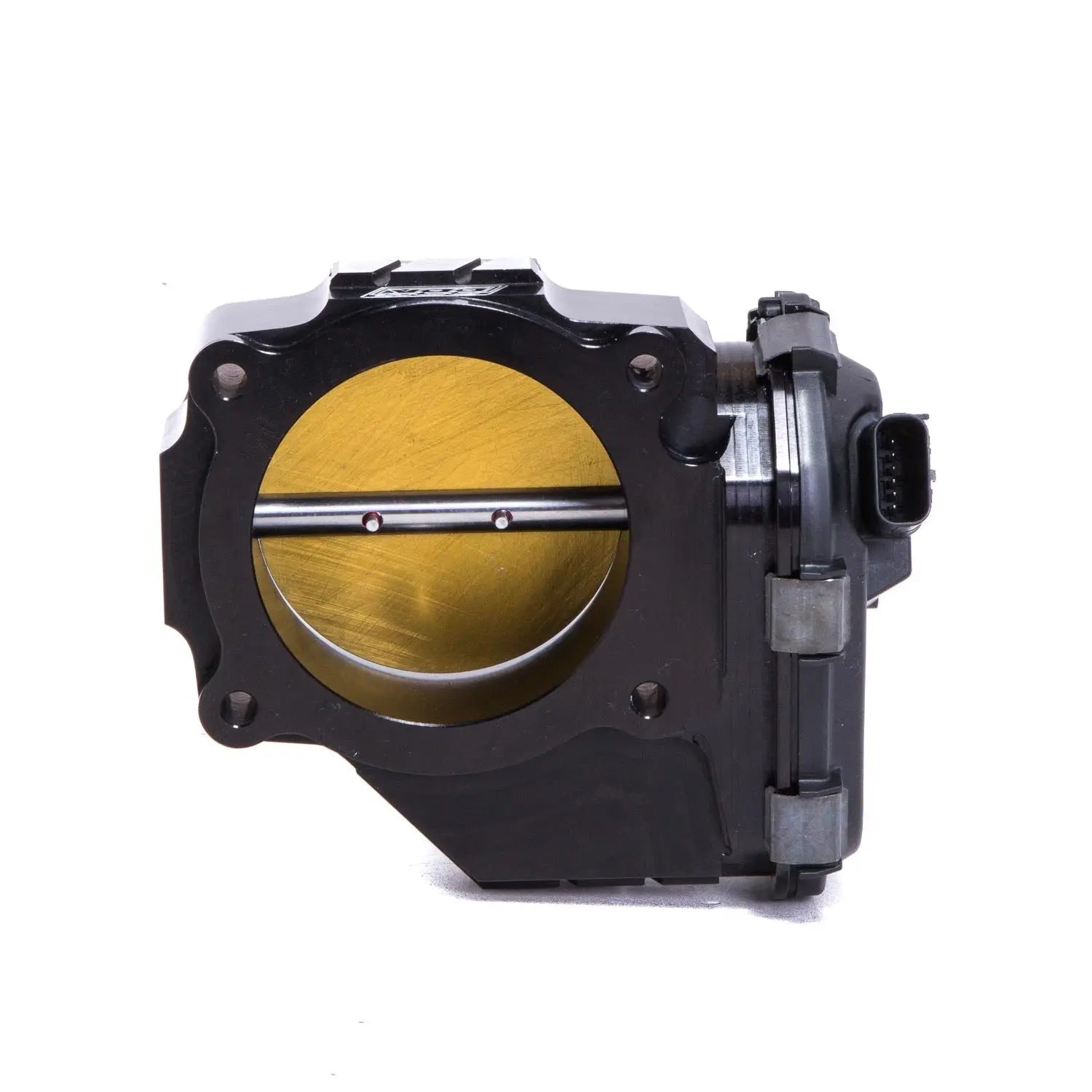

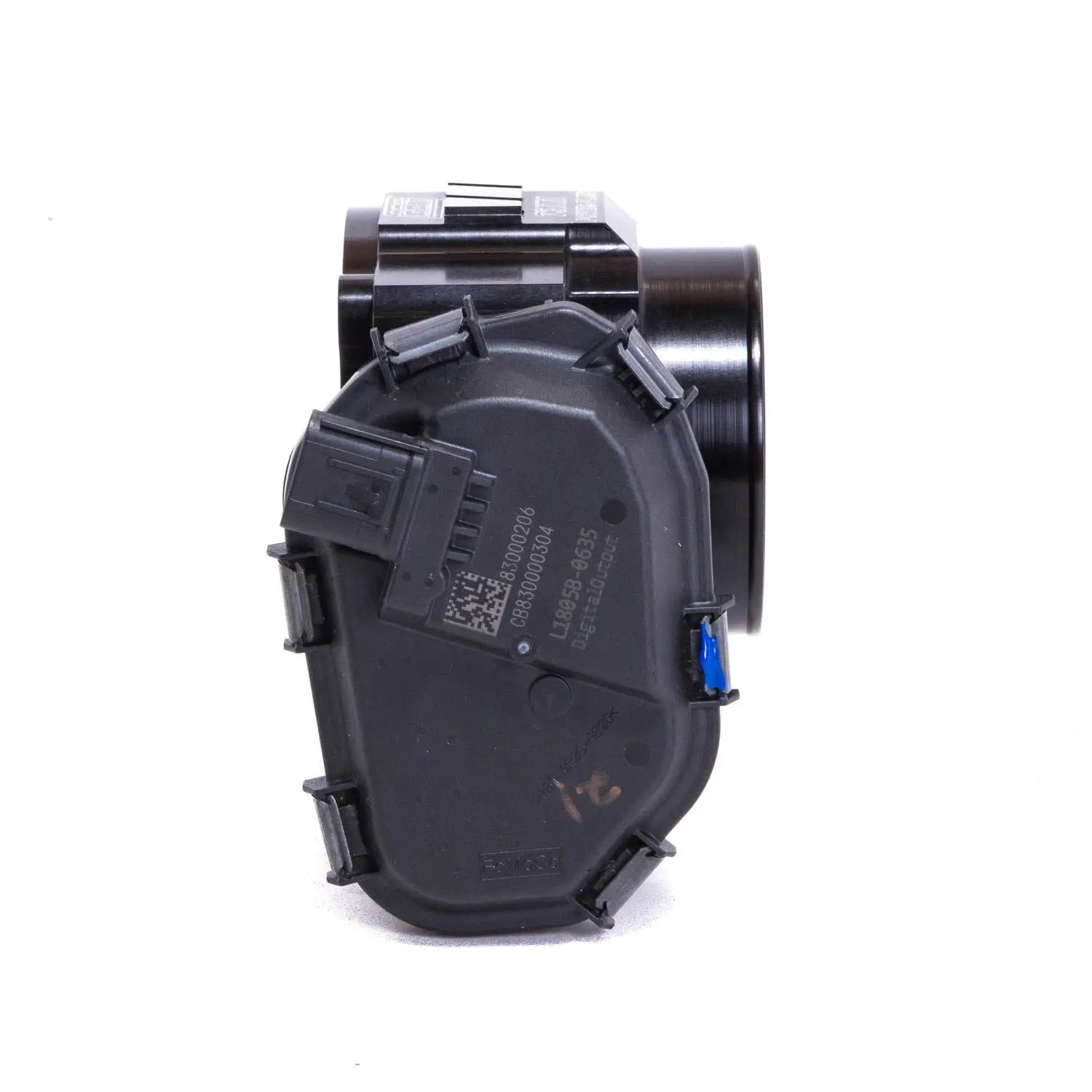

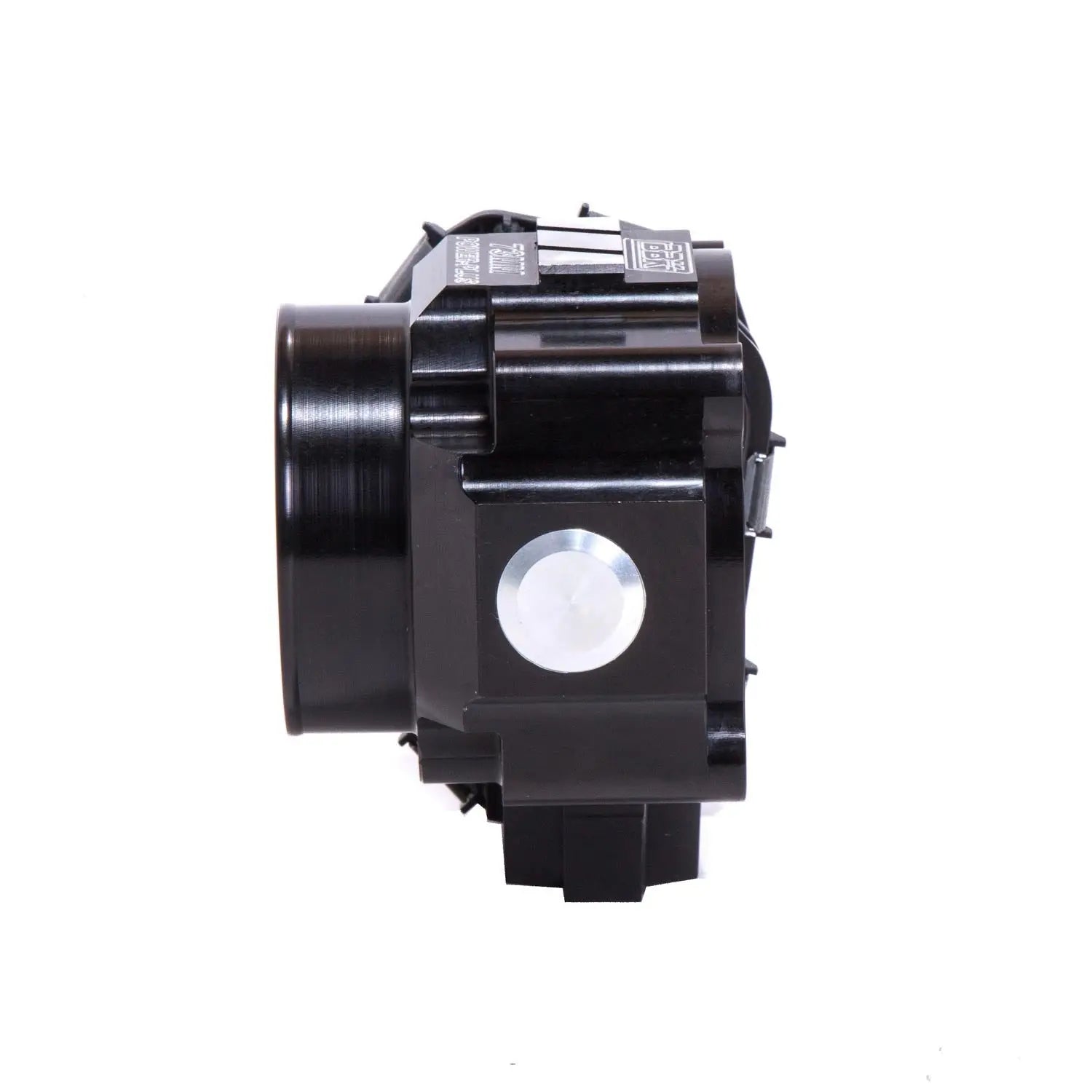

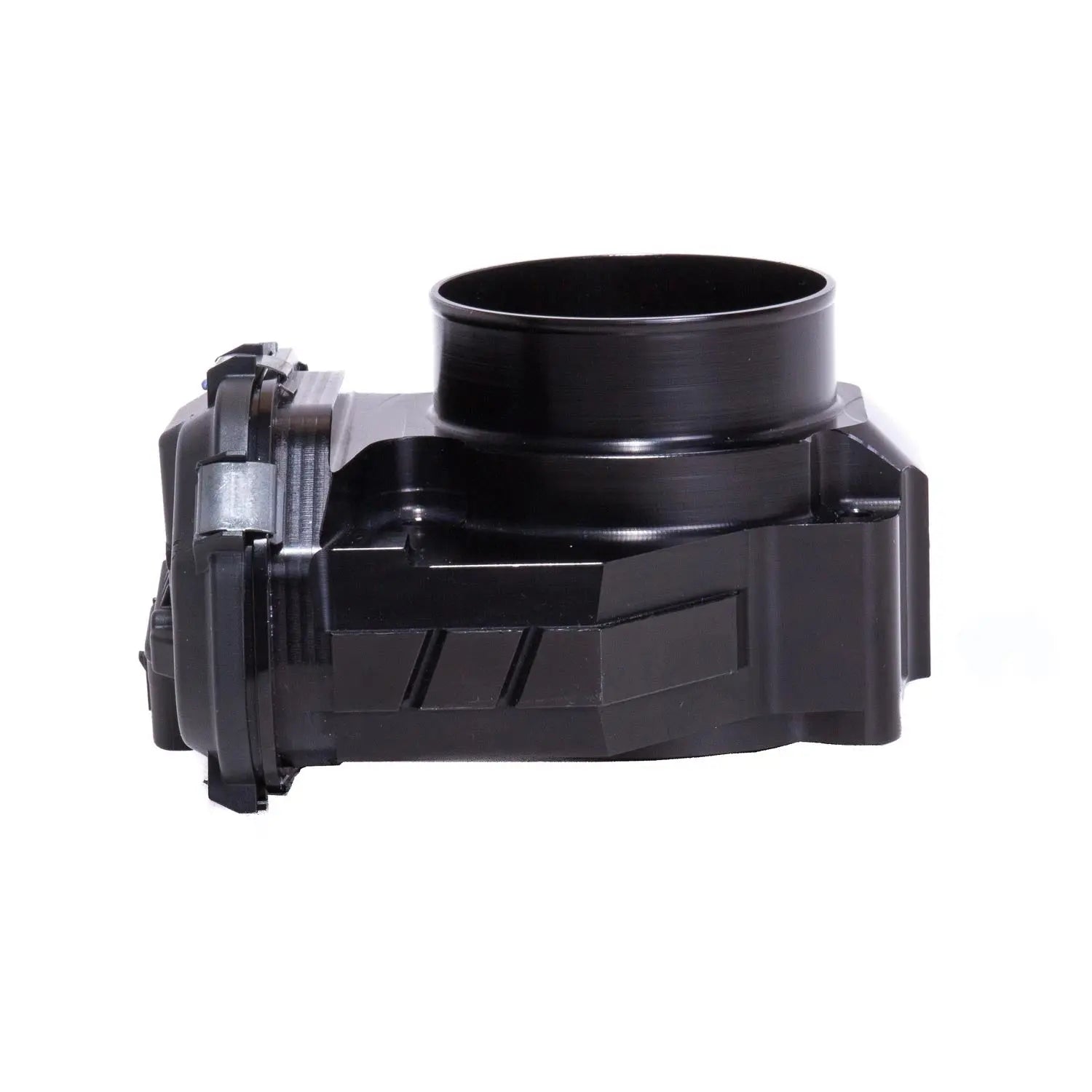

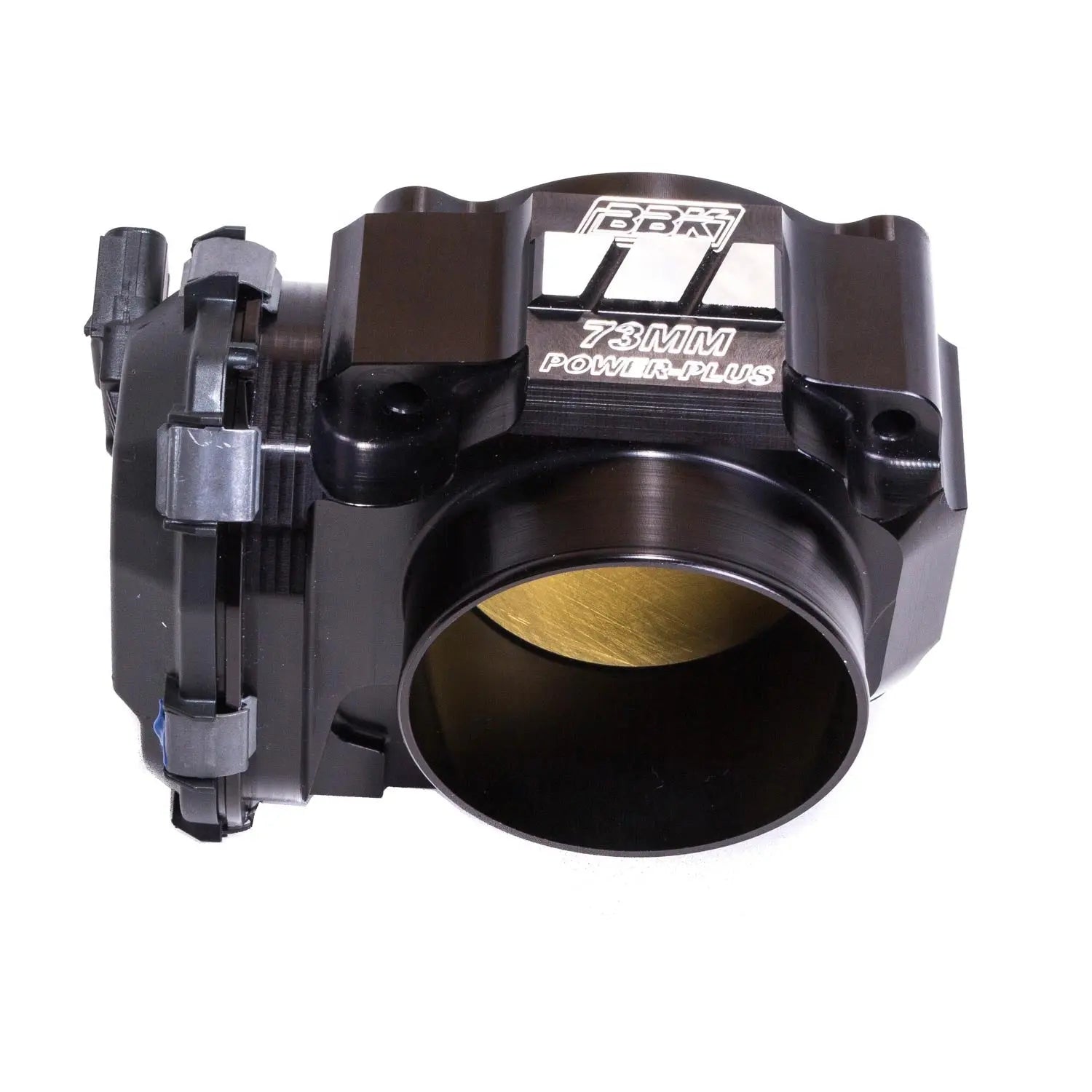

Ford Raptor Truck 3.5 EcoBoost 73mm Throttle Body Black Billet Aluminum 17-26

Ford Raptor Truck 3.5 EcoBoost 73mm Throttle Body Black Billet Aluminum 17-26

PART #1924

FEATURES

• Adds 8–15+ horsepower over stock, depending on boost level and tune
• Large 73mm throttle body bore for increased airflow
• Fully CNC-machined from solid billet aluminum
• BBK Black Billet Series construction
• Black anodized finish with CNC-machined BBK logo
• Includes OEM electronics
• Improves throttle response and acceleration
• Helps reduce turbo lag on EcoBoost applications
• Direct-fit, bolt-on installation
• Designed and manufactured in the USA

VEHICLE FITMENT

• 2017–2026 Ford F-150 — 3.5L EcoBoost V6
• 2018–2023 Ford F-150 — 3.3L Ti-VCT V6 Flex Fuel
• 2018–2026 Ford Expedition — 3.5L EcoBoost V6
• 2020–2023 Ford Explorer Hybrid — 3.3L V6

Improved Power and Throttle Response

Engineered to withstand the demands of modern turbocharged and high-performance vehicles, the BBK Black Billet Series 73mm throttle body delivers excellent airflow, durability, and performance.

The larger 73mm bore increases airflow to the engine, helping improve throttle response, acceleration, horsepower, and torque. On EcoBoost applications, the increased airflow can also help reduce turbo lag for quicker response when you step on the accelerator.

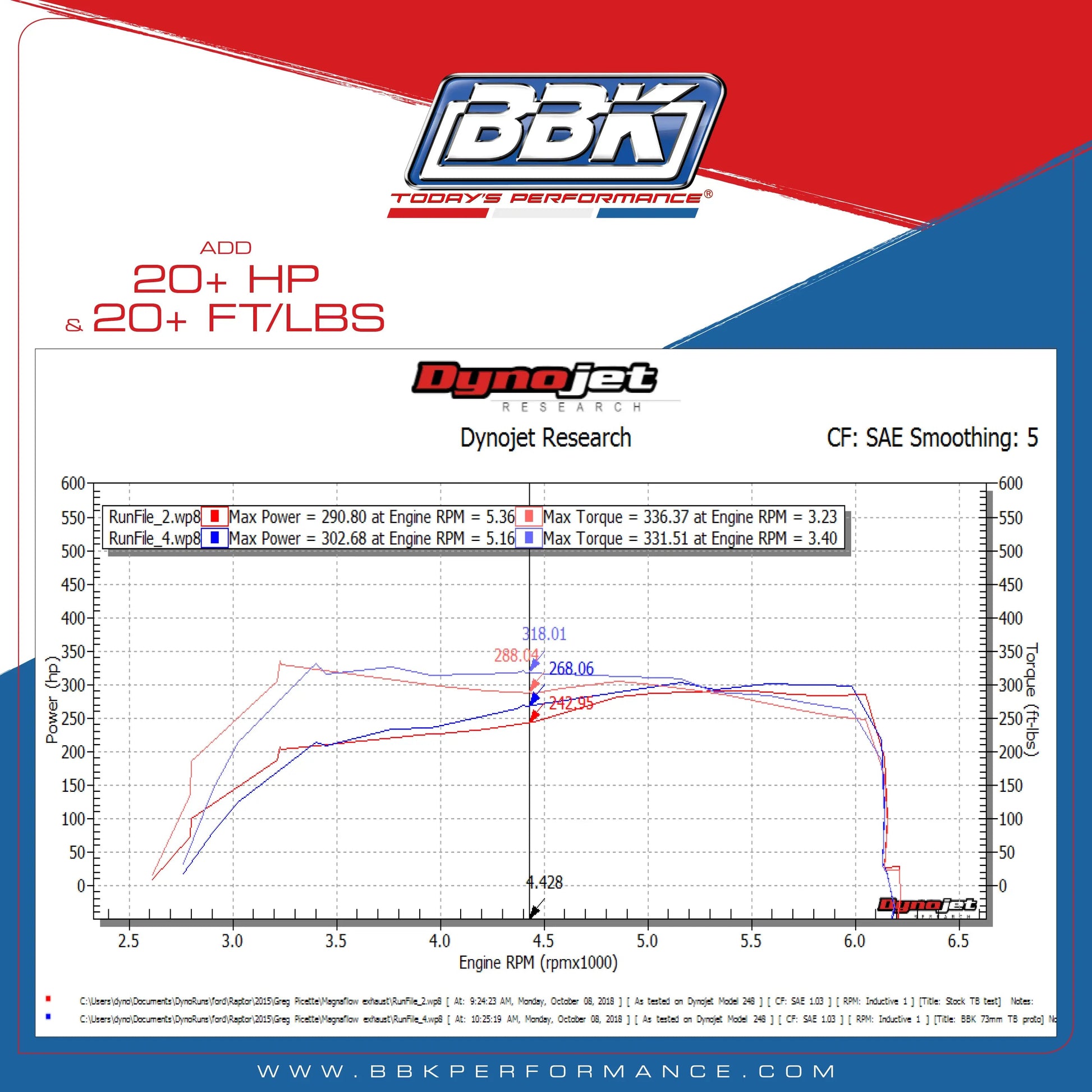

Horsepower gains of 8–15+ are possible, depending on the vehicle’s boost level, tune, and supporting modifications.

Premium Billet-Aluminum Construction

The BBK Black Billet Series throttle body is fully CNC-machined from high-quality billet-aluminum stock for maximum strength, durability, and dependable performance.

It features a black anodized finish with a CNC-machined BBK logo for a clean, high-performance appearance. OEM electronics are included, along with an OEM-quality throttle gear, double-sealed bearings, and O-ring-sealed throttle shafts for smooth and reliable operation.

Easy, Direct-Fit Installation

This BBK 73mm throttle body is designed as a direct-fit, bolt-on replacement for a straightforward installation. No major modifications are normally required.

BBK Performance throttle bodies are designed and manufactured in the USA.

Tuning Note

BBK electronic throttle-control performance throttle bodies are engineered to work with the factory tune in most applications. However, depending on the vehicle’s additional modifications and ECM sensitivity, custom tuning may be recommended.

Although tuning is not normally required, it can help maximize performance, drivability, and horsepower when the throttle body is combined with other aftermarket upgrades.

Emissions Information

This part is C.A.R.B Approved. EO Number Is D-245-25
It is Legal For use on the following applications in ALL 50 States: 2017-2019 Ford Raptor F150 Truck 3.5L Turbo applications
