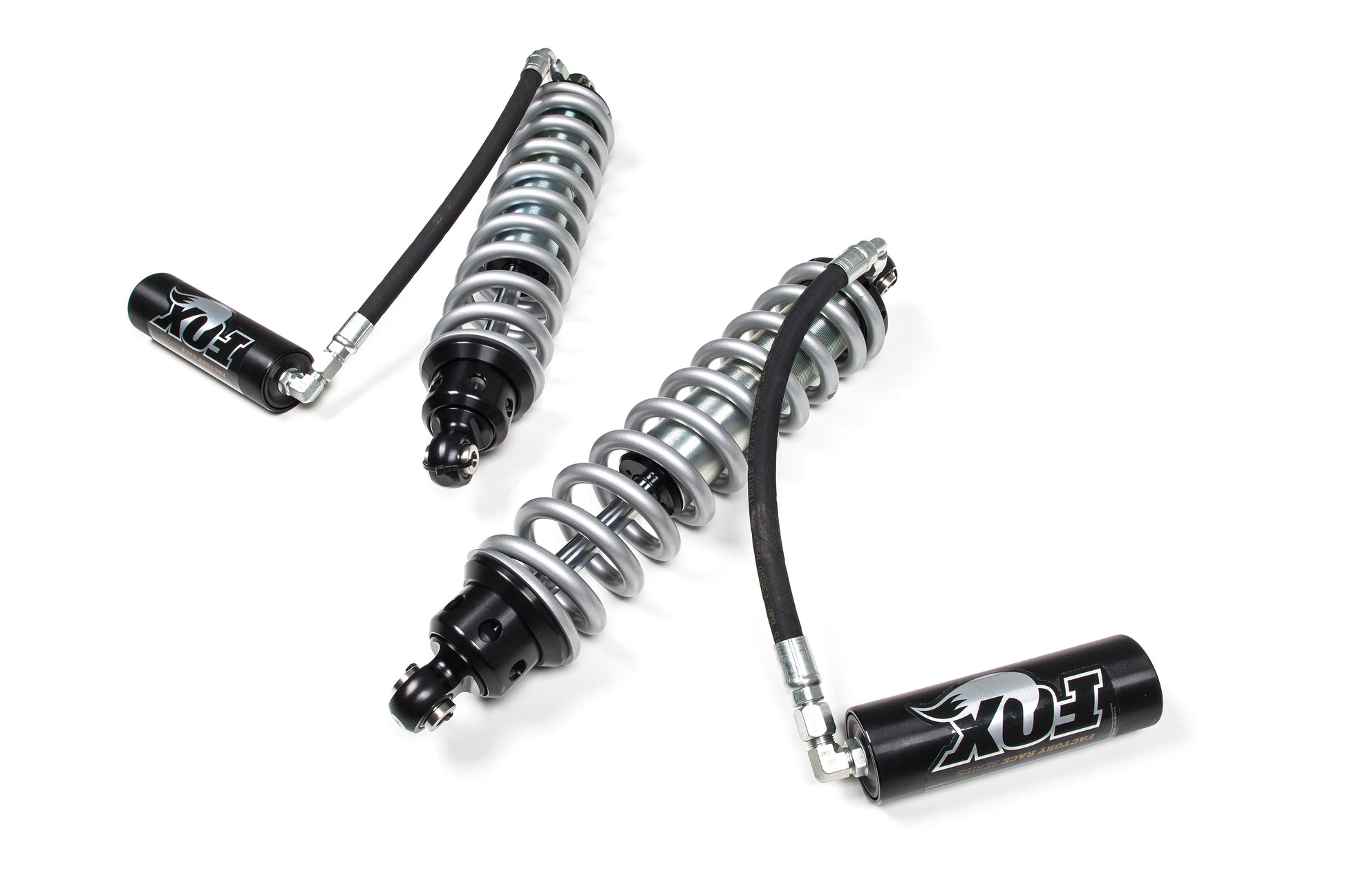

BDS SUSPENSION FOX 2.5 Coil-Over Shocks W/ Reservoir - 4 Inch Lift - Factory Series - Ford F250/F350 Super Duty (05-22) 4WD FOX88402149

BDS SUSPENSION FOX 2.5 Coil-Over Shocks W/ Reservoir - 4 Inch Lift - Factory Series - Ford F250/F350 Super Duty (05-22) 4WD FOX88402149

BDS SUSPENSION

Part #
BDS-FOX88402149
UPC #

$1,701.28 USD
$1,880.41 USD $1,701.28 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Designed to fit Ford trucks with a BDS 4-inch lift kit.
  • 2.5-inch smooth bore zinc plated seamless steel body
  • Zinc-plated and double-clear coated for long lasting finish
  • Black-anodized CNC-machined 6061-T6 billet aluminum
  • Application-specific adjustable 3.0 Eibach® racing springs
  • 7/8-inch hard chrome-plated steel shafts
  • Application specific valving to maximize performance
  • GTIN:
  • Brand Name: BDS Suspension
  • Adjustable1: Yes
  • Compressed Length4: 14.6500
  • Cylinder Diameter2: 2_5
  • Cylinder Material7: Steel
  • Extended Length5: 22.0100
  • Gas Charged: Yes
  • Installation Time: 2-3 Hrs
  • Lower Mount Type: Eyelet
  • Pvg Product Status: Active
  • Reservoir Type0: Remote
  • Shaft Diameter8: 7_8
  • Shaft Material: Chrome Plated Steel
  • Shocks Included3: No
  • Travel Length6: 7.3600
  • Type: Coil Over
  • Upper Mount Code: Eyelet
  • Upper Mount Type: Special
  • Country of Origin: US
  • Emissions : 4
  • Life Cycle Status: Available To Order
  • Quantity of Each:
  • Package UOM:
  • Dimension: 35.0000 x 20.0000 x 10.0000 inches
  • Weight: 54.2000 lb
