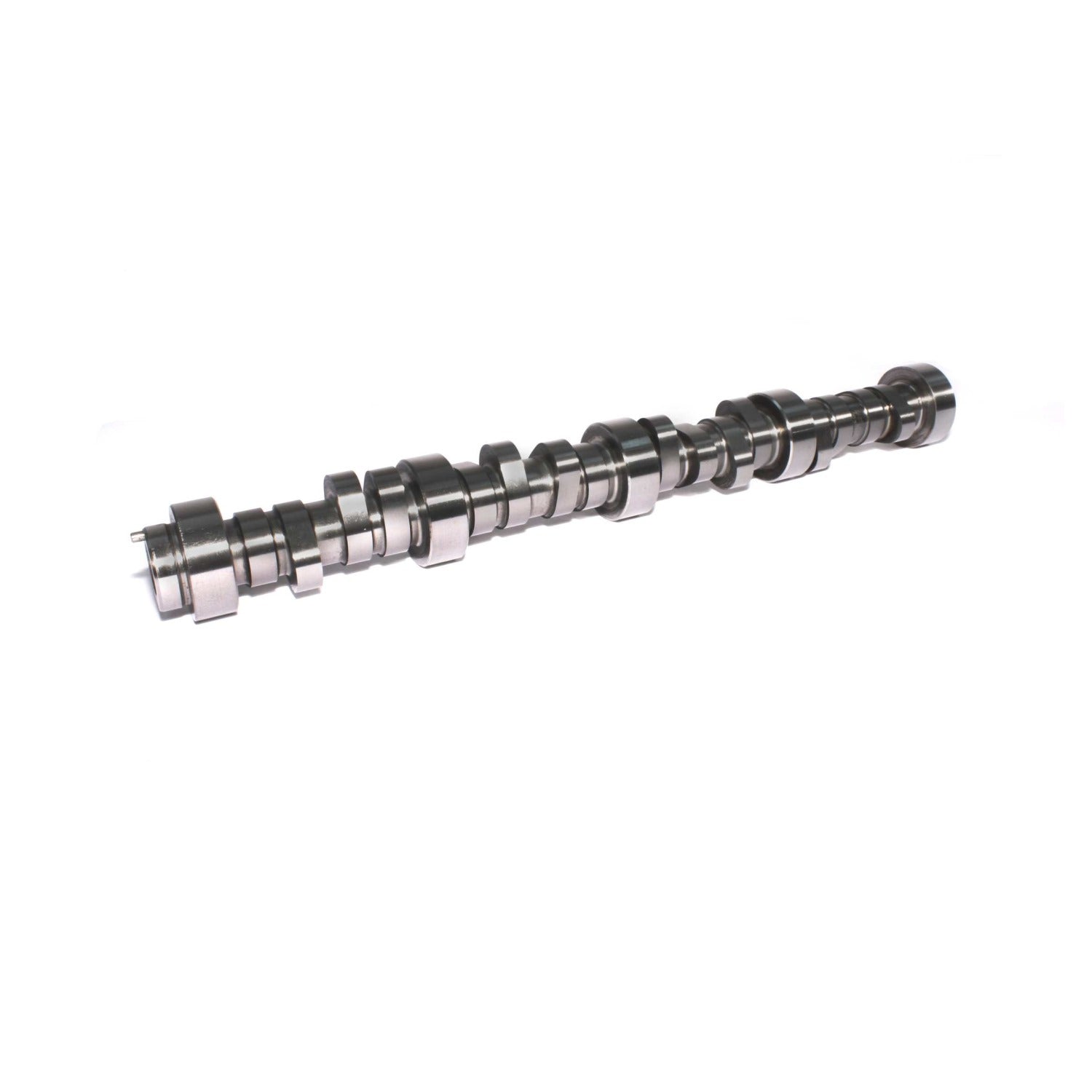

COMP Cams FSL 206/218 Hydraulic Roller Cam for GM GEN IV LS w/o VVT or AFM COMP-146-200-13

Attributes:

• GTIN: 00036584388951
• Brand Name: COMP Cams
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
• C.A.R.B. E.O. Number: D-279-12
• Grind Number: LSAE260
• Engine Family: GM GEN IV LS3 Single-Bolt w/o VVT or AFM 8 Cylinder (2007-2015)
• Cam Type: Hydraulic Roller
• Camshaft Series: FSL
• Basic Operating RPM Range: 1700-6700
• Intake Duration at .050 Inch Lift: 206
• Exhaust Duration at .050 inch Lift: 218
• Lobe Separation: 117
• Advertised Intake Duration: 260
• Advertised Exhaust Duration: 270
• Intake Valve Lift: 0.541
• Exhaust Valve Lift: 0.541
• Valve Springs Required: 26906
• Camshaft Gear Attachment: Single-Bolt
• Camshaft Material: Billet Steel
• Lifters Included: No
• Assembly Lubricant Included: No
• Lifter Type: Hydraulic Roller
• Usage: Street Performance
• Recommended Cam Install Kit: 5625
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 2.75 x 3 inches
• Weight: 11.1 lb
