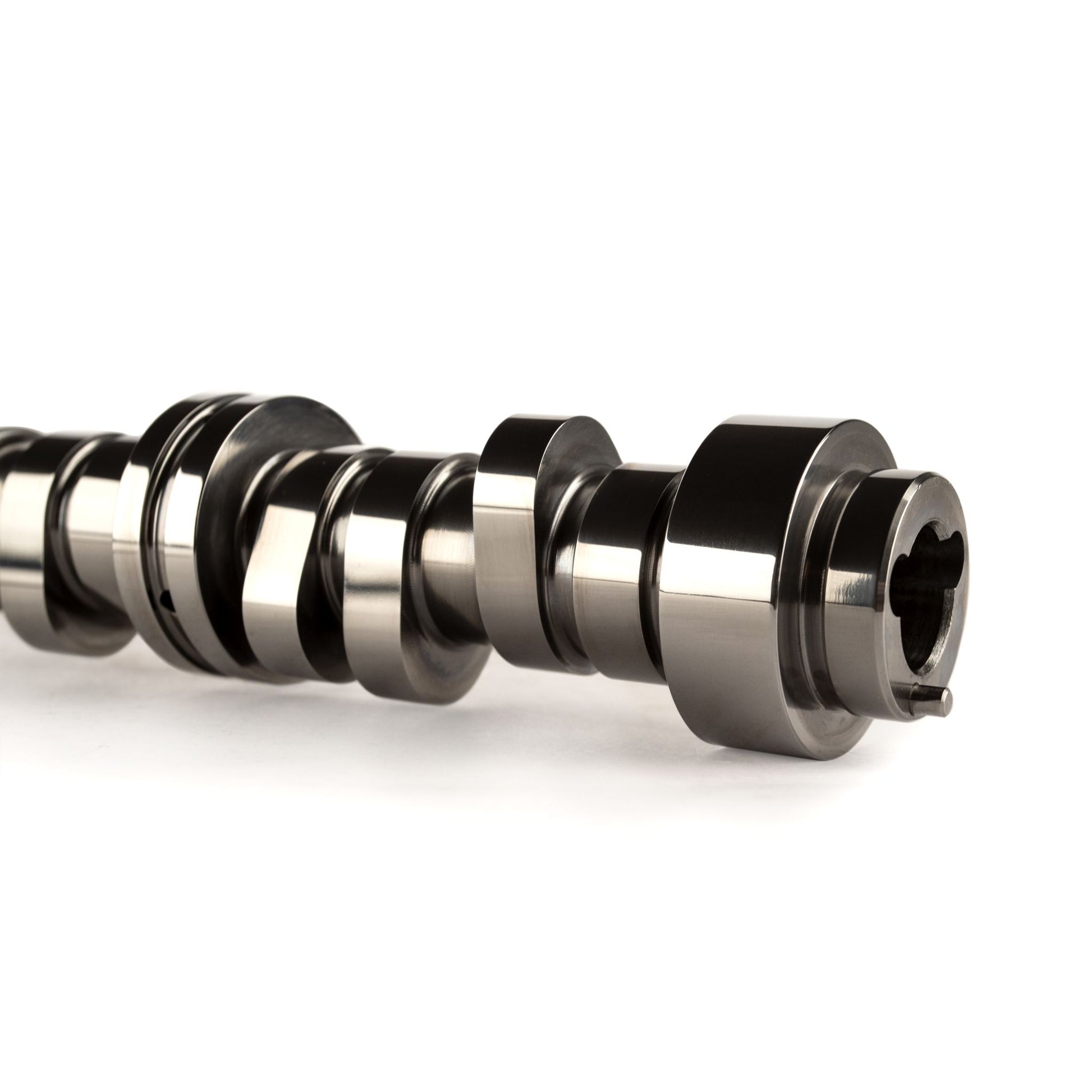

COMP Cams FSL 208/220 D 206/214 N Hydraulic Roller Cam for GM LS GEN IV COMP-689-199-13

Attributes:

• GTIN: 00036584373131
• Brand Name: COMP Cams
• Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220
• Advertised Intake Duration Non-Deactivation Cylinders: 266
• Advertised Intake Duration Deactivation Cylinders: 274
• Exhaust Valve Lift Deactivation Cylinders: 0.541
• Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
• C.A.R.B. E.O.: D-279-11
• Recommended Phaser Limiter: 5460
• Recommended Beehive Valve Spring Kit(s): 26918CS-KIT, 26918TS-KIT, 26918TI-KIT
• Recommended Dual Valve Spring Kit(s): 26925TS-KIT, 26925TI-KIT
• Recommended Pushrods: 7955-16, 8406-16
• Recommended Rectangule Port Rocker Arms: 1478-16, 19028-16
• Recommended Cathedral Port Rocker Arms: 1477-16, 19024-16
• Basic Operating RPM Range: 1,700-6,400
• Amazon ASIN: B07GTVJGYD
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
• C.A.R.B. E.O. Number: D-279-12
• Camshaft Series: FSL - 50 State Legal
• Grind Number: L99LX266
• Lobe Separation: 118
• Lifters Included: No
• Valve Springs Required: No
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Billet Steel
• Usage: Street/Performance
• Intake Valve Lift Non-Deactivation Cylinders: 0.541
• Intake Valve Lift Deactivation Cylinders: 0.541
• Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206
• Intake Duration at .050 Inch Lift Deactivation Cylinders: 208
• Advertised Exhaust Duration Deactivation Cylinders: 282
• Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
• Advertised Exhaust Duration Non-Deactivation Cylinders: 266
• Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 214

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 2.75 x 3 inches
• Weight: 11.1 lb
