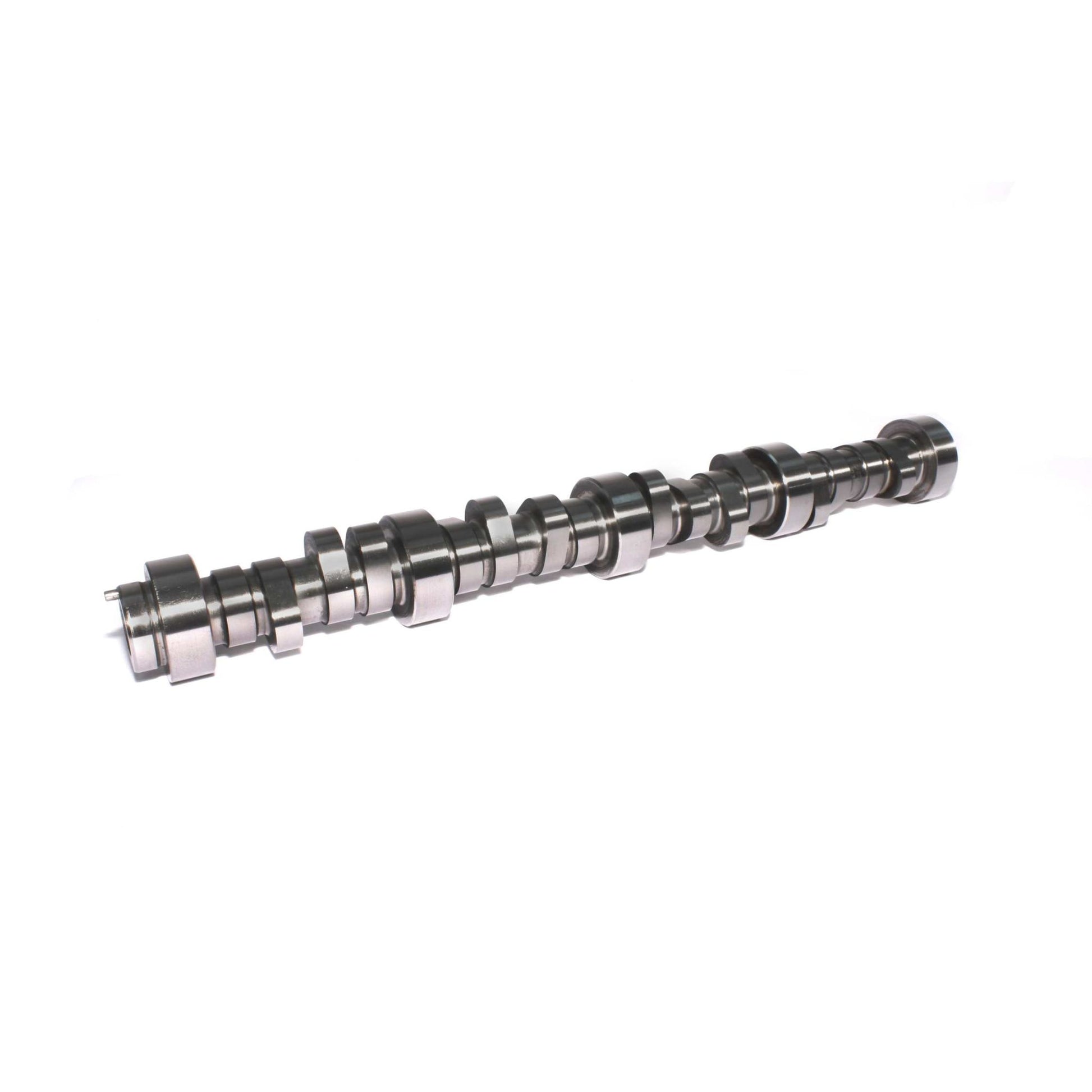

COMP Cams FSL 212/224 D 210/222 N Hydraulic Roller Cam for GM LS2/LS3 GEN IV COMP-646-201-13

FSL Cams for the GM Gen III/IV three-bolt and GEN IV single-bolt applications can produce a 30 to 47 HP increase in peak power, without requiring a valve spring upgrade or tuning. The best part of these new FSL cams is the incredible power gains that come without the risk of non-compliance with emissions regulations.

Attributes:

• GTIN: 00036584405603
• Brand Name: COMP Cams
• VVT Limiter Required?: No
• Intake Valve Lift Non-Deactivation Cylinders: 0.541
• Grind Number: LAFME264
• Camshaft Material: Billet Steel
• Lifters Included: No
• Assembly Lubricant Included: No
• Lobe Separation: 116
• Valve Springs Required: 26906
• Camshaft Gear Attachment: Single-Bolt
• Engine Family: Gen IV AFM ONLY EO Camshafts
• Cam Type: Hydraulic Roller
• Lifter Type: Hydraulic Roller
• Intake Valve Lift Deactivation Cylinders: 0.541
• Basic Operating RPM Range: 1700-6900
• Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
• Exhaust Valve Lift Deactivation Cylinders: 0.541
• Advertised Intake Duration Non-Deactivation Cylinders: 274
• Advertised Intake Duration Deactivation Cylinders: 286
• Advertised Exhaust Duration Non-Deactivation Cylinders: 264
• Advertised Exhaust Duration Deactivation Cylinders: 273
• Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 222
• Exhaust Duration at .050 inch Lift Deactivation Cylinders: 224
• Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 210
• Intake Duration at .050 Inch Lift Deactivation Cylinders: 212
• Camshaft Series: FSL
• Recommended Cam Install Kit: 5623

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10 lb
