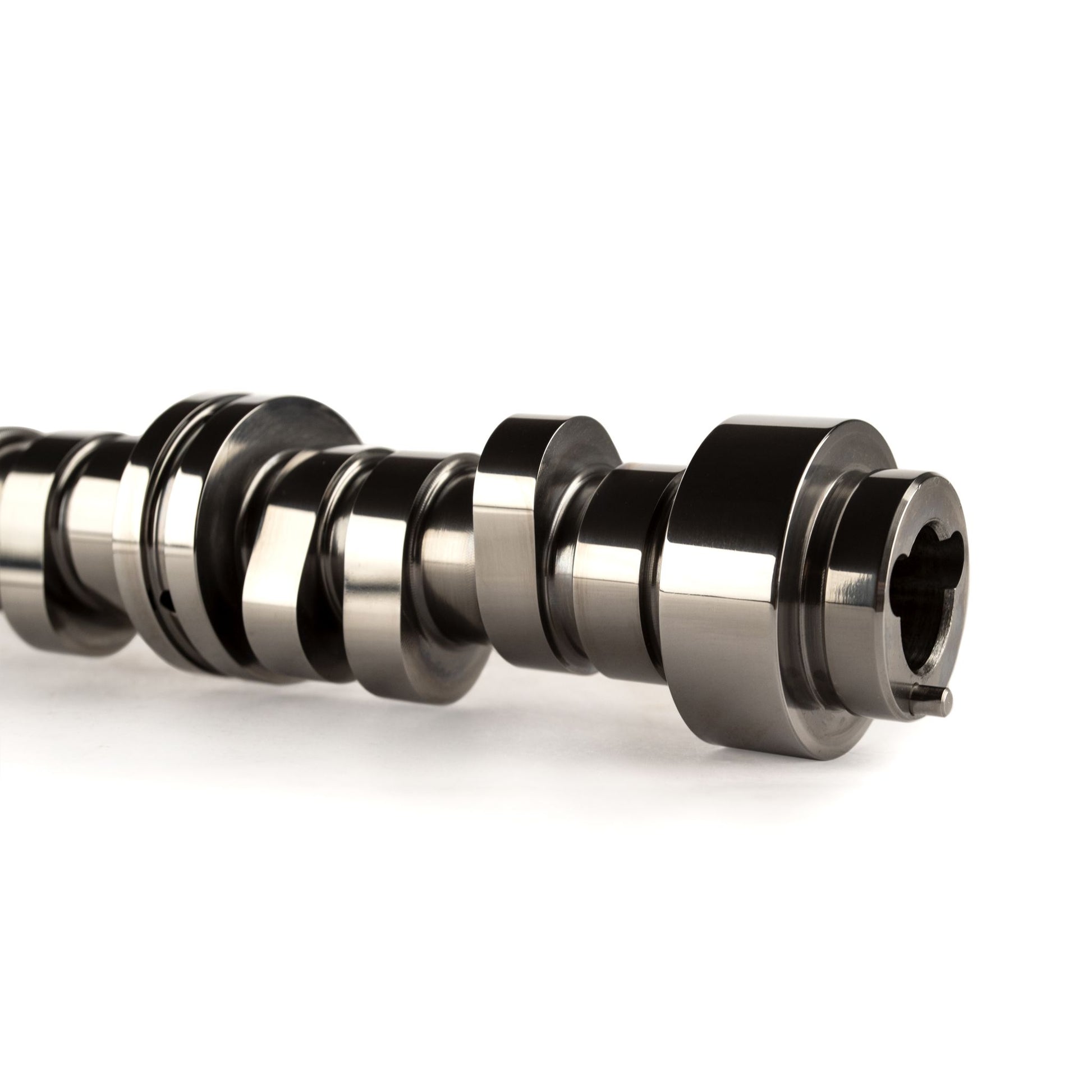

COMP Cams FSL AFM 212/224 D 210/222 N Hydraulic Roller Cam for GM LS GEN IV COMP-689-201-13

Name: COMP Cams FSL AFM 212/224 D 210/222 N Hydraulic Roller Cam for GM LS GEN IV COMP-689-201-13
Brand: COMP CAMS
SKU: 689-201-13
Price: 649.95 USD
Availability: InStock

COMP CAMS

Part #
689-201-13
UPC #
036584388944

$649.95 USD

~~$714.95 USD~~ $649.95 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

Attributes:

GTIN: 00036584388944
Brand Name: COMP Cams
Engine Family: GM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)
Grind Number: L99E264
Camshaft Series: FSL
Basic Operating RPM Range: 1700-6900
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 210
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 222
Intake Duration at .050 Inch Lift Deactivation Cylinders: 212
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 224
Lobe Separation: 116
Advertised Intake Duration Non-Deactivation Cylinders: 274
Advertised Intake Duration Deactivation Cylinders: 286
Advertised Exhaust Duration Non-Deactivation Cylinders: 264
Advertised Exhaust Duration Deactivation Cylinders: 273
Intake Valve Lift Deactivation Cylinders: 0.541
Exhaust Valve Lift Deactivation Cylinders: 0.541
Intake Valve Lift Non-Deactivation Cylinders: 0.541
Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
Valve Springs Required: 26906
Camshaft Gear Attachment: Single-Bolt
VVT Limiter Required?: No
Camshaft Material: Billet Steel
Assembly Lubricant Included: No
Lifters Included: No
Cam Type: Hydraulic Roller
Lifter Type: Hydraulic Roller
Recommended Cam Install Kit: 5623
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
C.A.R.B. E.O. Number: D-279-12
