Garrett GT1749V Turbocharger VW 1.9L TDI Upgrade (BEW Engine) VNT 778445-5002S

TURBO UPGRADE FOR 1.9L | 2.0L VW TDI ENGINES

VW 1.9L Turbo Upgrade

Part number: 778445-5002S 1.9L (175HP*)

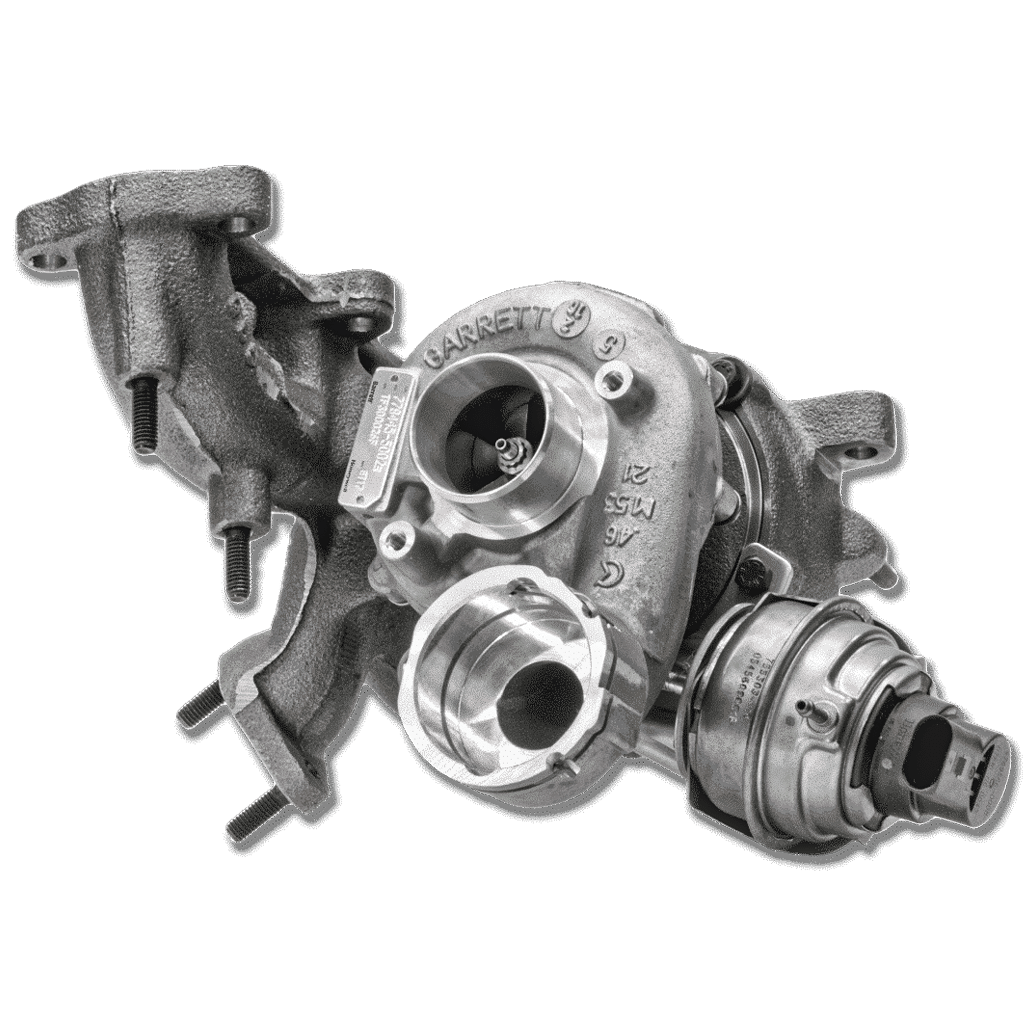

The Garrett GT1749V is the first performance upgrade / replacement turbocharger available to the Aftermarket for Volkswagen 1.9L TDI BEW Engines. The GT1749V comes equipped with a smart actuator, an industry exclusive, and a position sensor, which enables the turbocharger to communicate automatically with the Engine Control Unit (ECU). The kit is easy to install and suitable as a performance upgrade or replacement turbocharger. The Garrett VW TDI Kit also promotes a longer turbo and engine life span and increased reliability by lowering exhaust gas temperatures. Replaces VW OE Part Numbers: 038 253 019 S & 038 253 014 E Model: KP39 (3K)

* Estimated. Performance results of this product are highly dependent upon your vehicle's modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Reference Data:

• • Compressor

    • Inducer 36mm

    • Exducer 49mm

    • Trim 55

    • A/R 0.46

  • Turbine

    • Inducer 43mm

    • Exducer 38mm

    • Trim 76

    • A/R 0.61
