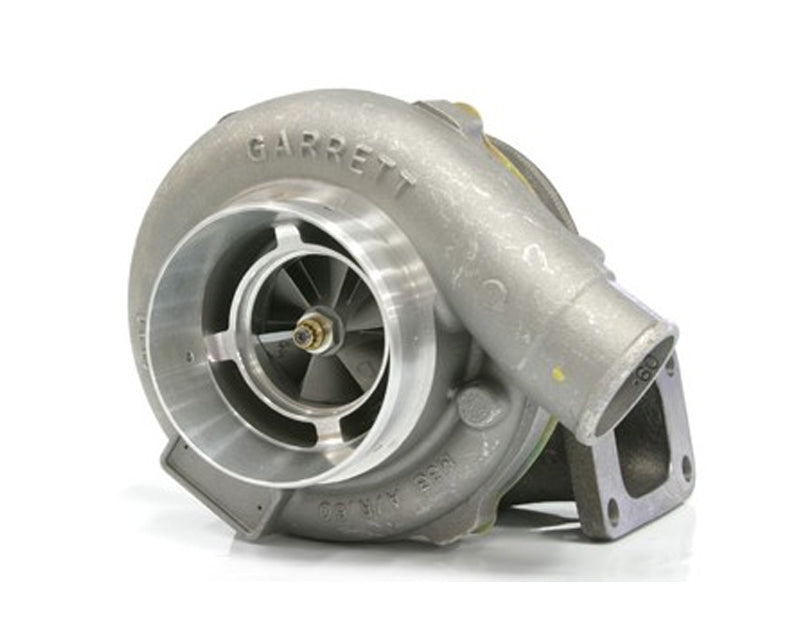

Garrett GT4094R Turbocharger 0.95 A/R 751470-5020S

Model Number: GT4094R

• Approximate Horsepower Range for Engine Capacity:¬†450-800Hp (2.0L-5.7L)
• CHRA (core):¬†751450-5016
• Compressor Housing Air Ratio:¬†0.72
• Compressor Wheel Inducer Size (mm):¬†67.80
• Compressor Wheel Trim (mm):¬†52
• Turbine Wheel Exducer Size (mm):¬†68
• Turbine Wheel Trim (mm):¬†78
• Turbine Housing & Air Ratio Size:¬†0.95
• Turbine Housing Inlet Port:¬†Dual
• Integral Wastegate:¬†NO
• Actuator Pressure (psi/kpa):¬†N/A
• Water Cooled Centre Housing:¬†YES
• Ball Bearing:¬†YES



External Wastegate Required
