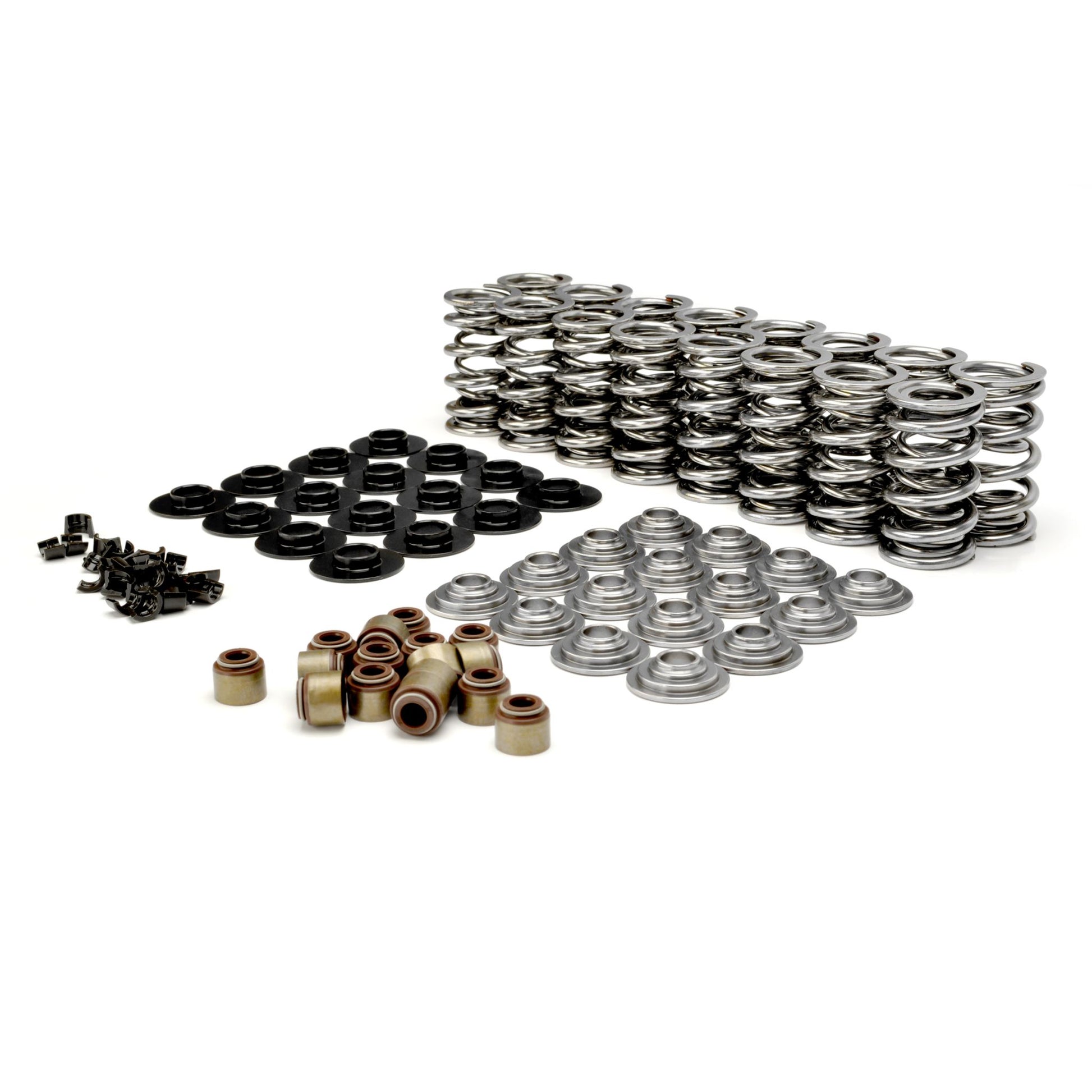

COMP Cams GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers; .660" Max Lift COMP-26925CS-KIT

Attributes:

• GTIN: 00036584395010
• Brand Name: COMP Cams
• Number of Springs: 2
• Outer Spring Outside Diameter: 1.320
• Outer Spring Inside Diameter: 0.958
• Inner Spring Inside Diameter: 0.680
• Coil Bind Height: 1.070
• Installed Height: 1.810
• Seat Pressure: 141
• Open Load: 405
• Includes Shims?: No
• Includes Seats?: Yes
• Included Seats: 4695-16
• Spring Rate: 400
• Spring Seat Type: I.D. Locator
• Includes Retainers?: Yes
• Retainer Material: Chromemoly Steel
• Damper: No
• Valve Spring Series: Dual
• Spring Style: Dual
• Max Lift: 0.660

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 13.5 x 3.75 x 3 inches
• Weight: 3.07 lb
