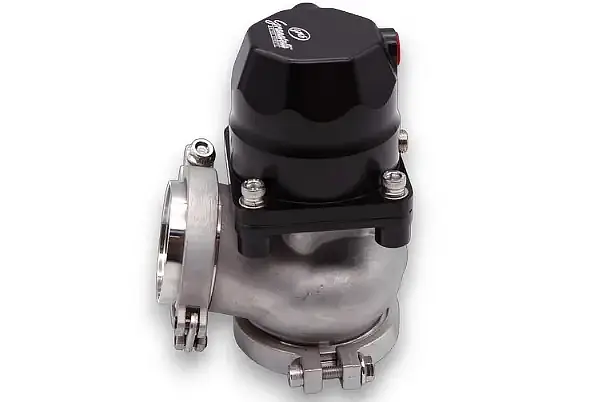

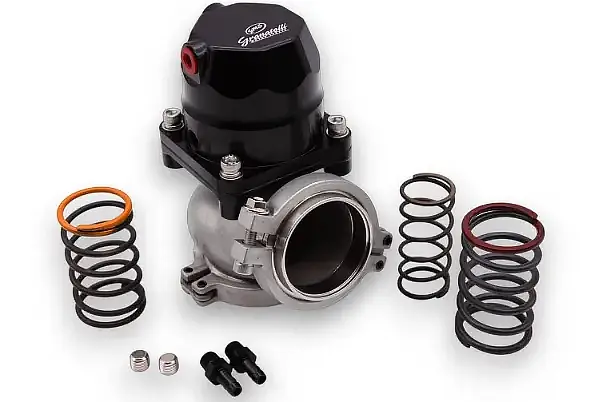

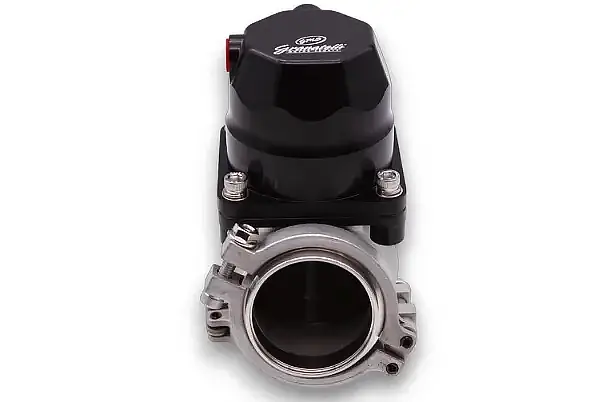

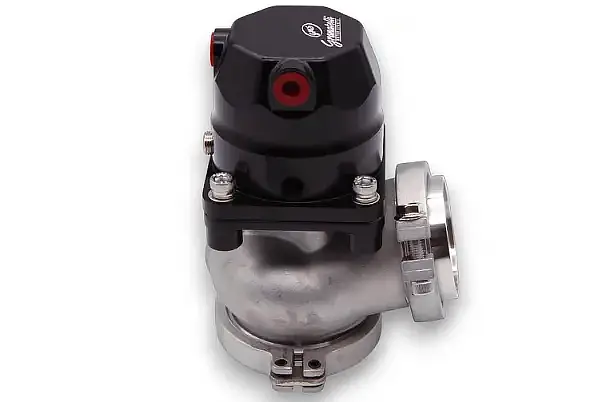

Granatelli 44mm Piston-Actuated External Turbo Wastegate with V-Band – 540261

Key Features & Benefits

• Application-focused Granatelli Motor Sports design
• Built for dependable performance and service
• Designed for enthusiasts, professional installers, and performance builds

Fitment & Installation

Confirm the part number, vehicle or engine application, dimensions, and supporting components before installation. Modified vehicles may require additional clearance, fabrication, calibration, or related hardware depending on the combination.

Frequently Asked Questions

Is the 540261 a piston or diaphragm wastegate?
The 540261 is piston-actuated. It uses a mechanical piston instead of a flexible diaphragm to open the valve. It is a different part from the 44mm water-cooled diaphragm wastegate, Granatelli 540244, so check the part number, not just the size, when you order.

Is the 540261 water-cooled?
No. The 540261 is air-cooled and has no water ports, so it suits installs with good airflow around the gate. If you need a water-cooled 44mm gate, choose the Granatelli 540244.

Should I choose the piston 540261 or the water-cooled 540244?
Pick the piston 540261 for high-heat, drag racing and performance diesel builds, or if you'd rather not plumb coolant. Pick the water-cooled 540244 if you want the conventional diaphragm actuator, can run coolant lines, and want the lower price. Size the valve first, then pick the actuator. Our Piston vs. Water-Cooled Diaphragm Wastegates guide compares both lines side by side.

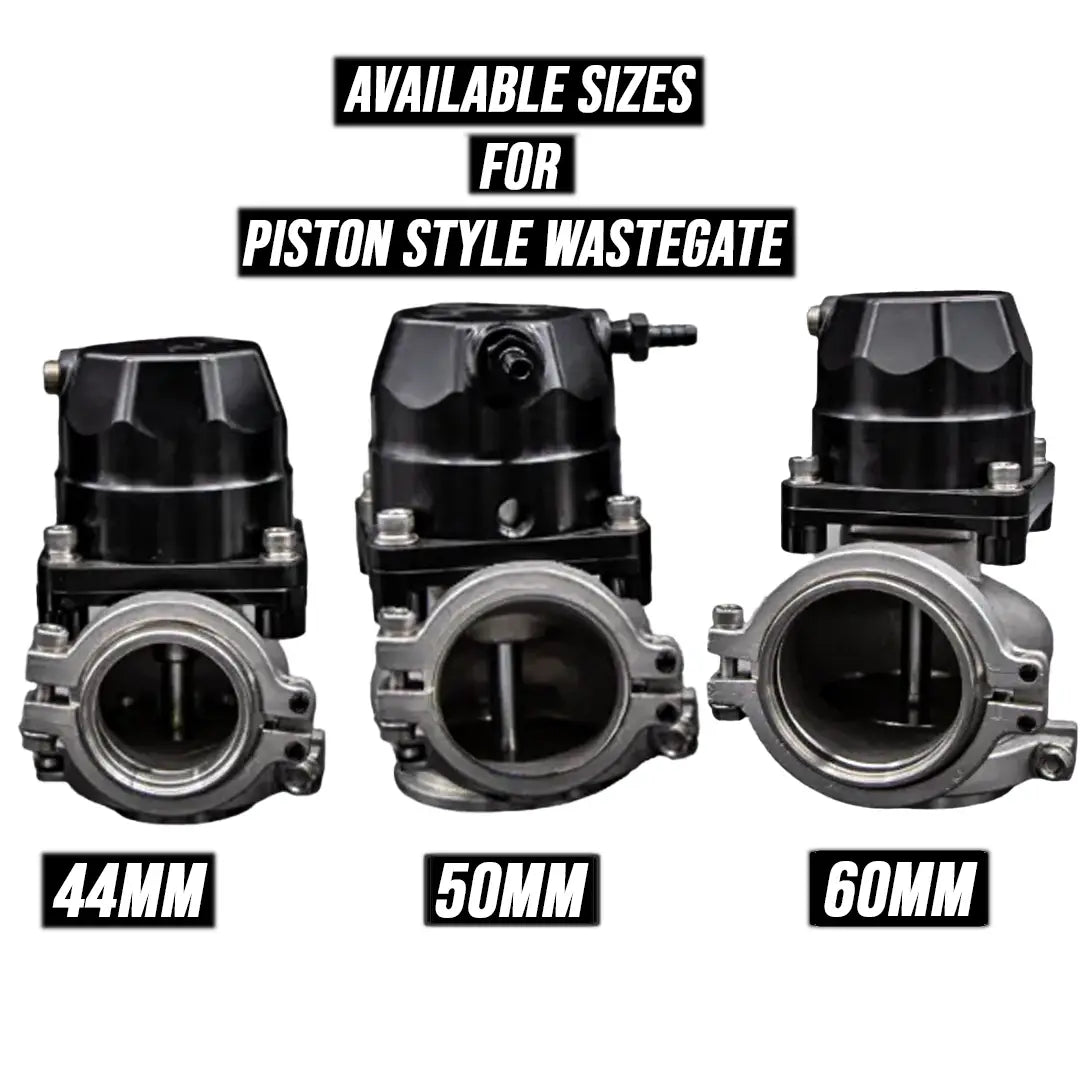

Is 44mm the right wastegate size for my build?
As a starting point for typical gasoline performance builds, we suggest 44mm for about 350–700 HP. That is a sizing guideline, not a horsepower limit. A 44mm gate is the compact choice for street turbo builds, tight engine bays and twin-turbo systems that run one gate per bank. If your turbo can make far more boost than you plan to run, you may need a 50mm or 60mm gate even at lower horsepower. See 44mm vs. 50mm vs. 60mm Wastegate: What Size Do You Need?

How do the springs set my boost?
The installed springs set the mechanical base boost, which is the lowest boost the system will normally run. Choose a spring setup for the lowest boost you want to run safely, then use a boost controller to add boost from there. Use only spring combinations approved for this wastegate, and don't swap in springs from a different size or from a diaphragm gate. Our Wastegate Boost Spring & PSI Guide explains how spring ratings add up.

Can I use a boost controller with the 540261?
Yes. A manual or electronic boost controller can raise boost above the spring setting when the system is plumbed and tuned correctly. Port functions on a piston gate are not the same as on a diaphragm gate, so use the plumbing diagram for this exact part number before connecting lines or leaving a port open.

What if I still get boost creep?
Boost creep means boost keeps climbing even with the wastegate open. A stiffer spring won't fix it. Common causes are a gate that is too small for the turbo and engine, or a manifold that doesn't give exhaust a smooth path into the gate. Check the size and the placement. Our wastegate sizing guide covers both.

Can I run two of these on a twin-turbo or twin-gate setup?
Yes. Many twin-turbo systems run one wastegate per turbo or per exhaust bank. Use the same part number on both sides so both gates respond the same way. More answers on springs, ports and placement are on our Wastegate FAQ page.
