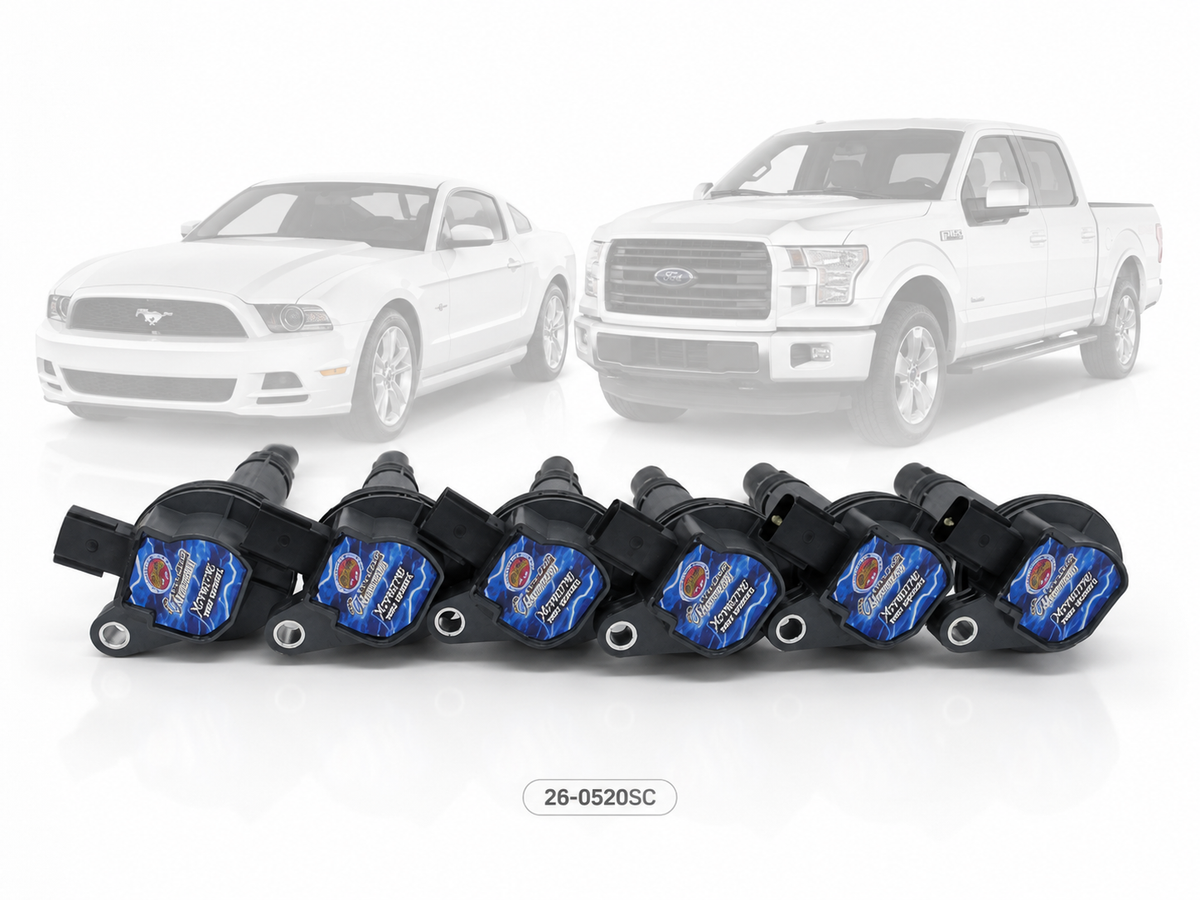

Granatelli 65,000V Pro Series Xtreme Ignition Coil Kit for 2011-2014 Ford 3.5L & 3.7L V6 Non-EcoBoost – 26-0520SC
Granatelli 65,000V Pro Series Xtreme Ignition Coil Kit for 2011-2014 Ford 3.5L & 3.7L V6 Non-EcoBoost – 26-0520SC
Granatelli Motor Sports
Part #
26-0520SC
UPC #
Couldn't load pickup availability
Product Description
Product Description
GRANATELLI PRO SERIES XTREME IGNITION
YOUR V6 DOESN’T NEED AN ECOBOOST BADGE TO BENEFIT FROM A STRONGER SPARK.
The Granatelli 26-0520SC Pro Series Xtreme Coil-On-Plug Kit upgrades compatible 2011-2014 Ford 3.5L and 3.7L naturally aspirated V6 engines with performance ignition coils capable of producing up to 65,000 volts.
Designed as a direct replacement for the factory coil-on-plug ignition system, this kit gives stock and modified Ford V6 applications a higher-output ignition solution without requiring a custom ignition conversion.
|
65,000V
COIL OUTPUT
|
3.5L / 3.7L
FORD V6
|
NON-ECOBOOST
APPLICATION
|
DIRECT FIT
COIL-ON-PLUG
|
Why Step Up to Pro Series Xtreme?
Factory-style replacement coils are built to restore stock ignition performance. The Pro Series Xtreme is designed for enthusiasts who want considerably more available ignition voltage for performance use.
With output up to 65,000 volts, these coils provide additional ignition capability for stock engines as well as modified combinations where cylinder pressure, RPM and ignition demand can increase.
More Than Just a Higher Voltage Number
Granatelli Ford performance coils use optimized internal windings, magnetic steel core technology and brass secondary contacts to help transfer available coil output to the spark plug. The coil body, tower and mounting structure are designed as an integrated assembly for a direct OEM-style installation.
Good Choice For
✓ Naturally aspirated Ford V6 performance builds • ✓ Tuned vehicles • ✓ Intake and exhaust upgrades • ✓ Higher-RPM street applications • ✓ Aging factory-coil replacement • ✓ Street / strip use
POPULAR APPLICATIONS
2011-2014 Ford / Lincoln 3.5L & 3.7L V6 Fitment
|
Ford Mustang 3.7L V6 |
Ford F-150 3.7L V6 |
|
Ford Edge / Explorer 3.5L / 3.7L V6 applications |
Ford Taurus / Flex 3.5L V6 applications |
|
Ford Fusion Select 3.5L V6 applications |
Lincoln MKS / MKT / MKX / MKZ Select 3.5L / 3.7L V6 applications |
Key Features
|
✓ Up to 65,000 Volts High-output Pro Series Xtreme ignition coil design. |
✓ Direct OEM-Style Replacement Designed to install in place of compatible factory coils. |
|
✓ Optimized Coil Windings Designed to increase available ignition voltage and spark energy. |
✓ Magnetic Steel Core Technology Engineered for consistent ignition performance. |
|
✓ Brass Secondary Contacts Helps provide a solid electrical path from the coil to the spark plug. |
✓ Stock or Modified Engines Suitable for street-driven and performance-oriented V6 combinations. |
Product Specifications
| Part Number | 26-0520SC |
| Series | Pro Series Xtreme |
| Product Type | Coil-On-Plug Ignition Coil Kit |
| Maximum Output | 65,000 Volts / 65kV |
| Engine | Ford 3.5L / 3.7L V6 |
| Induction | Naturally Aspirated / Non-EcoBoost |
| Primary Model Years | 2011-2014 |
| Installation Style | Direct OEM-Style Replacement |
| Application | Stock & Modified Engines |
| UPC | 802735039085 |
Important Engine Fitment Note
26-0520SC is for compatible naturally aspirated / non-EcoBoost Ford 3.5L and 3.7L V6 engines. Do not order this kit based on displacement alone. Ford also produced EcoBoost 3.5L engines that use a different ignition application. Verify vehicle year, engine and original coil configuration before ordering.
