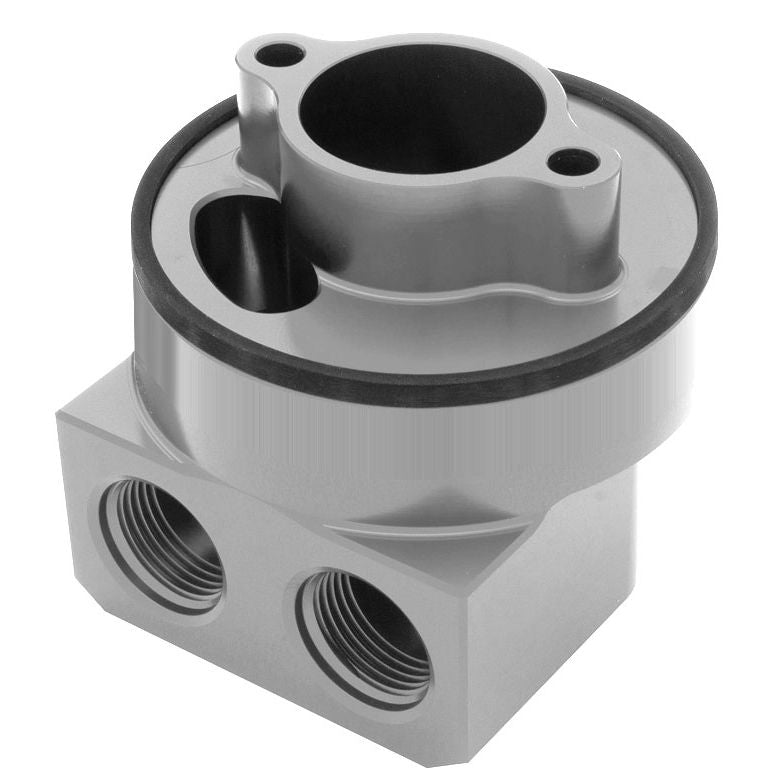

HAMBURGER'S PERFORMANCE PRODUCTS 90 BOLT-ON STYLE EXTENDED CLEARANCE OIL FILTER BYPASS ADAPTER; LATE MODEL BB CHEVY ENGINES; BILLET ALUMINUM 3329

• -12 AN Ports
• Covered By A Limited LifeTime Warranty
• Dense Billet Material Is Ideal For Diesel & High-Performance Engine Use
• Made In The USA!
• Simple Bolt-On Design

Attributes:

• GTIN: 00086923033295
• Brand Name: Hamburger's Performance
• Finish: Clear Anodized
• Finish Type: Clear Anodized
• Material: Billet Aluminum
• Materials: CLEAR anodized, billet T-6061 Aircraft aluminum. MADE IN THE USA!
• Port Size: -12AN (ORB O-Ring Boss style) Inlet and Outlet Ports
• Product Details: For use on GEN V BB Chevy Engines. The oil filter mounting location on Later model BB Chevy engines has a deeper recess, preventing our #3328 90 degree unit from fitting properly. The longer neck on this adapter solves this problem.
• Bypass Mounting Style: Bolt-On
• Fitting Thread: -12 AN (ORB o-ring boss)
• Mount Material: Billet Aluminum
• Filter Bypass Style: 90 Degree Port Filter Bypass
• Contents: 90 Billet Aluminum Bolt-on Bypass Adapter, Gasket, O-ring, 1/4 in.-20 and 5/16 in.-18 mounting bolts
• Description: 90 Degree Bolt-on Oil Filter Bypass Adapter in.Extended Clearance in.; Late Model BB Chevy Engines; Billet Aluminum
• Package Contents: 90 Billet Aluminum Bolt-on Bypass Adapter, Gasket, O-ring, 1/4 in.-20 and 5/16 in.-18 mounting bolts
• Notes: BB Chevy (Gen 5) 90? Bolt-on bypass adapter w/ Extended Depth.
• Engine: Chevy BB V8 (GEN V)
• VEHICLE Oil Filter Nipple Size: Bolt-On Bypass (No nipple)

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.000 x 5.000 x 5.000 inches
• Weight: 2.200 lb
