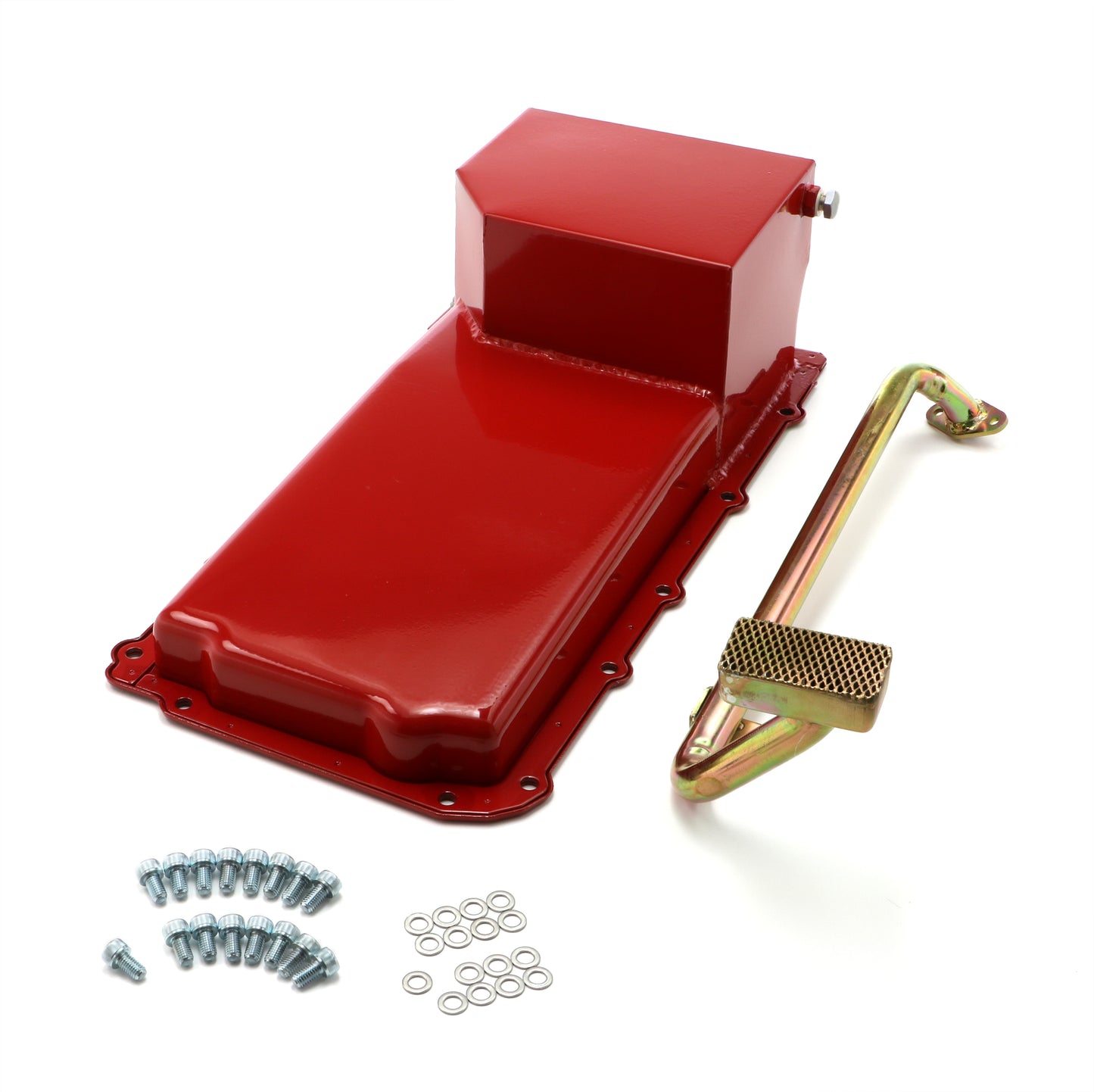

HAMBURGER'S PERFORMANCE PRODUCTS EARLY GM VEHICLES AND 1982-04 S10 ENGINE SWAP OIL PAN; LS SERIES ENGINES; 5 QT; REAR SUMP 1108

Manufactured steel engine swap oil pan for installing a 4.8L, 5.3L or 6.0L GM LS Series engine into early GM passenger cars and trucks, as well as 1982-04 S10, S15 trucks. The low profile pan moves the oil sump to the rear, like traditional SB Chevy oil pans have. The front of the pan in only 2" deep for excellent clearance above the chassis cross member. A gently sloping pan floor ensures that all the engine oil drains back to the pan sump, which measures only 6" deep. This keeps the pan's sump tucked up and behind the cross member, to avoid pan damage caused by speed bumps, driveways and flying road hazards. The pan comes equipped with a specially designed oil pickup tube that maintains a reliable, consistent flow of oil to your engine. Works with the factory pan o-ring seal. Two -10AN fittings have been integrated into the pan's reinforced mounting flange, to allow for easy hookup to a remotely mounted oil filter. The pan sump measures 8 1/4" wide by 6" long.

• Compact Design Provides Better Crossmember Clearance
• Designed Especially For Installing An LS Engine In Classic American Cars and Trucks
• Includes Gasket, Bolts and Special Pick-Up Tube
• Integrated -10AN Fittings Built Into The Pan For Easy Hook-Up To A Remote Oil Filter System
• Shallow Sump For Better Ground Clearance
• Welded Steel Construction

Attributes:

• GTIN: 00086923011088
• Brand Name: Hamburger's Performance
• Gasket Or Seal Included: Yes
• Sump Style: Wet Sump
• Capacity: 5 Qts.
• Color: RED
• Depth: 2 in. at front of Sump; 6 in. at Rear
• Engine Notes: LS1, LS6, LS2, LS3, LS9, L76, L98, L92, L93, L99, LQ4, LQ9, LSA, and V8 Vortec.
• Finish: RED Painted
• Finish Type: Painted Red
• Material: Steel
• Pickup #: 2522
• Port Size: -10AN
• Replacement Gasket Set: 4336
• Vehicle Specific Listings: LS engine into Early GM cars/trucks; 82-04 Chevy / GMC S10 / S15, Blazer / Jimmy
• Width: 8-1/4 in.
• Construction: Stamped/Fab
• Engine Manufacturer: Chevrolet
• Engine Oil Cooler Return Fitting: No
• Stroker Clearanced: Yes
• Sump Dimensions: Driver: 4 3/4 in. x 3 in. x 8 1/4 in.; Passenger: 7 in. x 8 1/4 in.
• Windage Tray Included: No
• Baffled: No
• Type: Oil Pan
• Kit Type: Oil Pan Only
• Bolts/Studs Included: Yes
• Color/Finish: RED
• Contents: Oil Pan, Oil Pickup, Gaskets, Bolts, Drain plug
• Crank Shaft Wiper Included: No
• Drain Plug Included: Yes
• Fastener(s) Included: Yes
• Fluid Capacity: 5 Qt
• Hardware Included: YES
• IMPORTANT!: This pan is Intended for car or truck use only, and not for Marine applications.
• Installation Hardware Included: Yes
• Kicked Out: No
• Mounting Hardware Included: Yes
• Oil Pan Bolts Included: Yes
• Oil Pan Capacity: 5 Qt. Capacity
• Oil Pan Finish: Red Painted
• Oil Pan Material: Steel
• Package Contents: Oil Pan, Oil Pickup, Gaskets, Bolts, Drain plug
• Pan Capacity: 5 Qts.
• Pickup Included: Yes
• Plug Included: Yes
• Sump Location: Rear
• Length: 6 in.
• Installation Notes: Requires relocation of oil filter. Trans Dapt Part # 1012, 1014 or 1016.
• Engine: Chevy LS Series
• Product Type: Oil Pans
• Vehicle Use: A-Body (GM) 1964-67

Extended Information:

• Country of Origin: Taiwan
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.000 x 12.000 x 8.000 inches
• Weight: 14.000 lb
