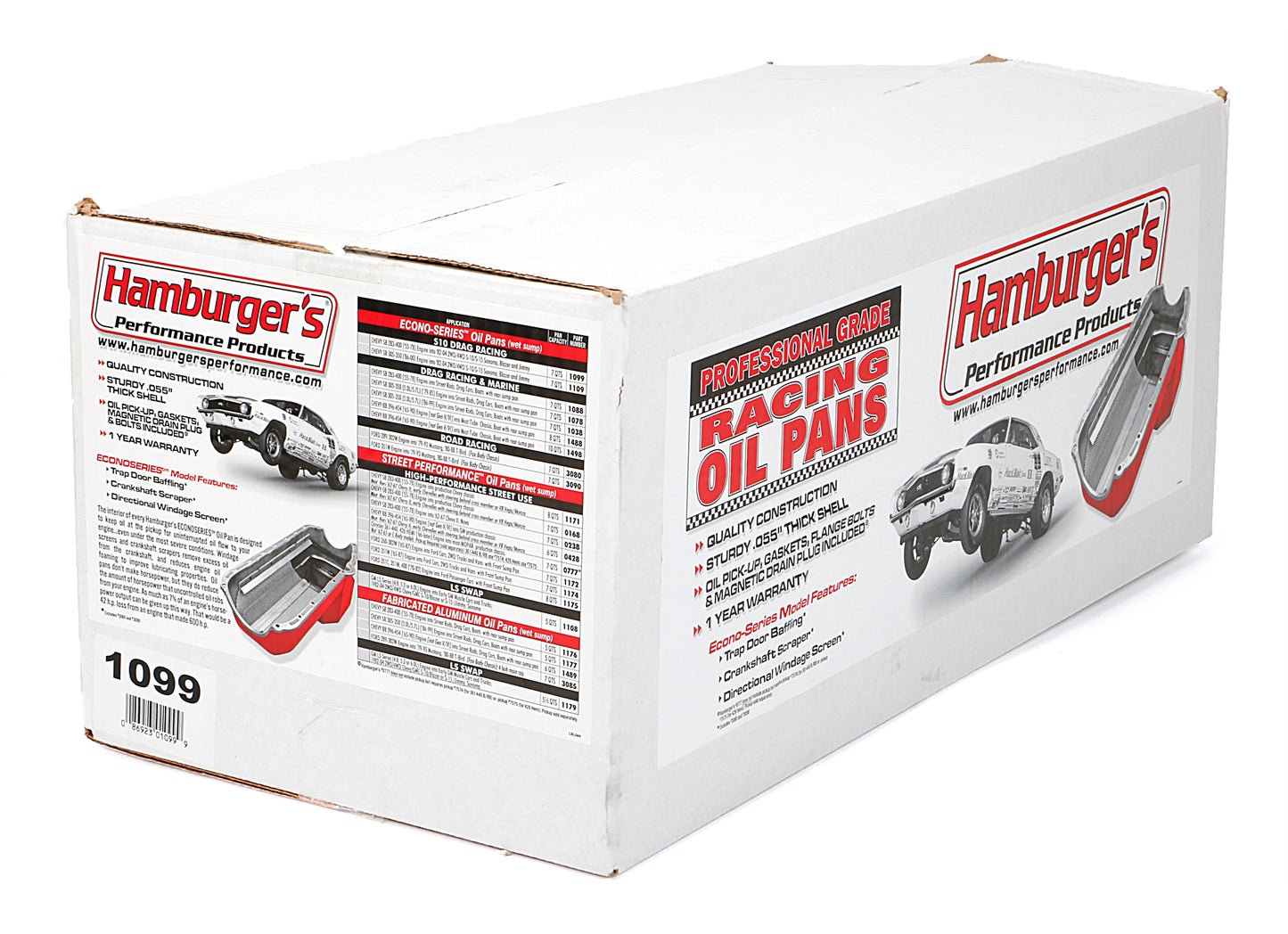

HAMBURGER'S PERFORMANCE PRODUCTS ECONO-SERIES OIL PAN; SB CHEVY (283-400) 1955-79-INTO S10 SWAP- DRAG RACE; 7 QTS.; WET SUMP 1099

• Designed Especially For Installing A V8 Engine In S10/S15 Trucks And Blazers
• Durable Steel Construction
• Equipped With Crankshaft Scraper And Windage Screen
• Geared To Hi-Performance Engine Use
• Includes Gasket, Bolts, Drainplug and Special Pick-Up Tube

Attributes:

• GTIN: 00086923010999
• Brand Name: Hamburger's Performance
• Additional Details: Fits 1982-04 2WD & 4WD S-10/S-15, Sonoma, Blazer and Jimmy with a SB Chevy
• Installation Notes: Replacement Trans-Dapt Gasket #3001!
• Notes: ECONO-SERIES Oil Pan; SB Chevy 1955-79-into S10 Swap- Drag Race; 7 Qt; WET Sump
• Engine: Chevy SB 283-400; '55-79 (Gen 1)
• Pick-up Connector Tube Diameter (O.D.): 5/8 in.
• Baffled: Yes
• Crank Shaft Wiper Included: Yes
• Gasket Or Seal Included: Yes
• Kicked Out: No
• Pickup Included: Yes
• Sump Location: Rear
• Sump Style: Wet Sump
• Windage Tray Included: Yes
• Color: RED
• Depth: 4 1/4 in. at front; 9 1/4 in. at Rear
• Description: SB Chevy (283-400) 1955-79-into S10 Swap- Drag Racing
• Finish: RED Painted
• Material: Steel
• Oil Pump Compatibility: Melling #10550, #M55, Chevy #12555884, #14044872 or equiv. (Gen 1 SB Chevy only)
• Pickup #: 2509
• Width: 7-1/2 in.
• Construction: Stamped/Fab
• Engine Manufacturer: Chevrolet
• Engine Oil Cooler Return Fitting: No
• Installation Hardware Included: Yes
• Plug Included: Yes
• Sump Dimensions: Driver: 5 in. x 2 1/2 in. x 5 1/2 in.; Passenger: 7 1/8 in. x 7 1/2 in.
• Oil Pan Capacity: 7 Qt. Capacity
• Bolts/Studs Included: Yes
• Capacity: 7 Qts.
• Color/Finish: RED
• Contents: Oil Pan, Oil Pickup, Gaskets, Bolts, Drain plug
• Drain Plug Included: Yes
• Fastener(s) Included: Yes
• Finish Type: Painted Red
• Fluid Capacity: 7 Qt
• Hardware Included: YES
• IMPORTANT!: This pan is Intended for car or truck use only, and not for Marine applications.
• Mounting Hardware Included: Yes
• Oil Pan Bolts Included: Yes
• Oil Pan Finish: Red Painted
• Oil Pan Material: Steel
• Package Contents: Oil Pan, Oil Pickup, Gaskets, Bolts, Drain plug
• Pan Capacity: 7 Qts.
• Replacement Gasket Set: 3001
• Dipstick Location: Driver side
• Dipstick Port: Yes
• Length: 7 1/8 in.

Extended Information:

• Country of Origin: Taiwan
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: PR
• Dimension: 24.250 x 12.250 x 8.500 inches
• Weight: 12.100 lb
