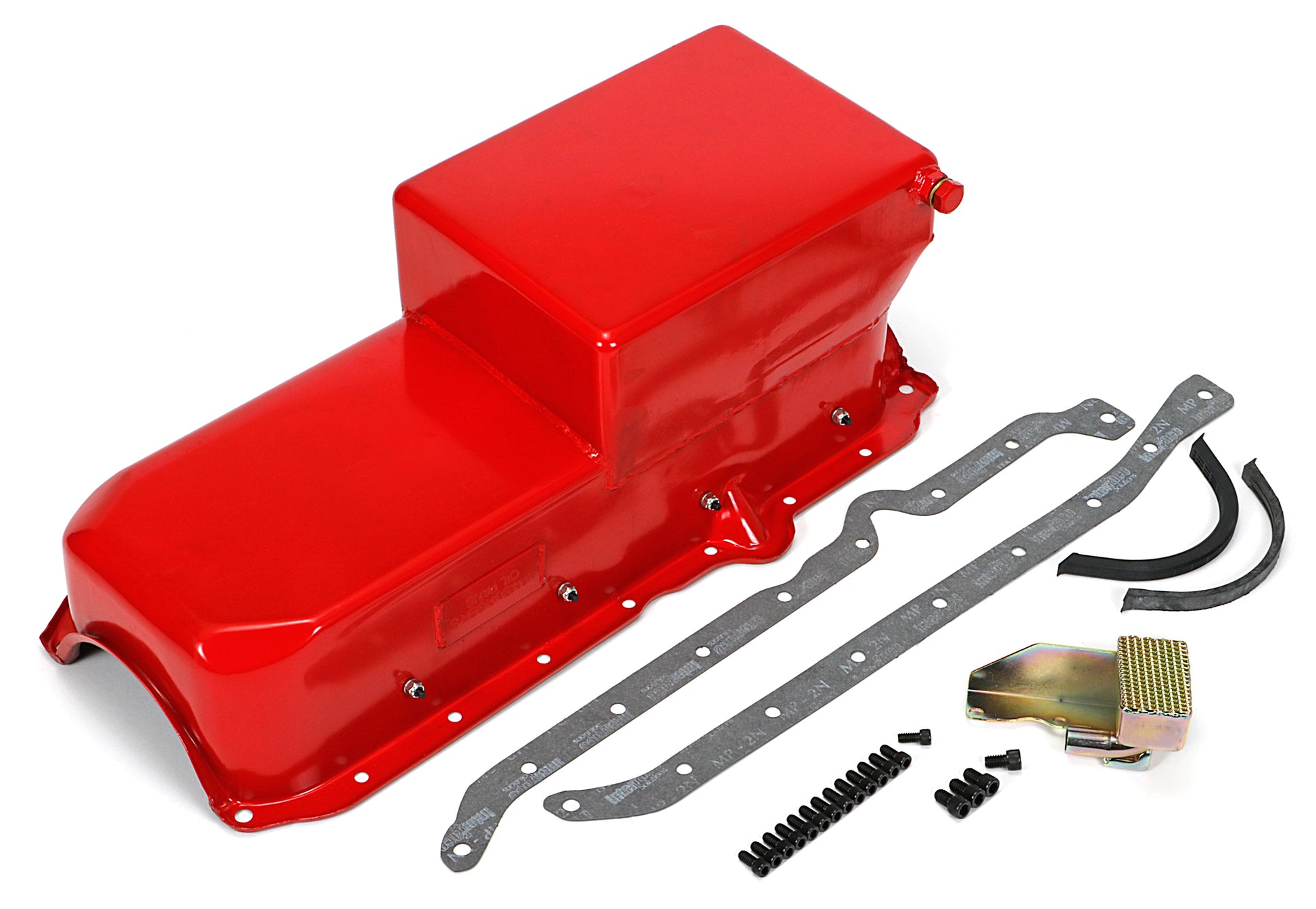

HAMBURGER'S PERFORMANCE PRODUCTS ECONO-SERIES OIL PAN; SB CHEVY (305-350) 1986-99- DRAG RACE; 7 QTS.; WET SUMP 1038

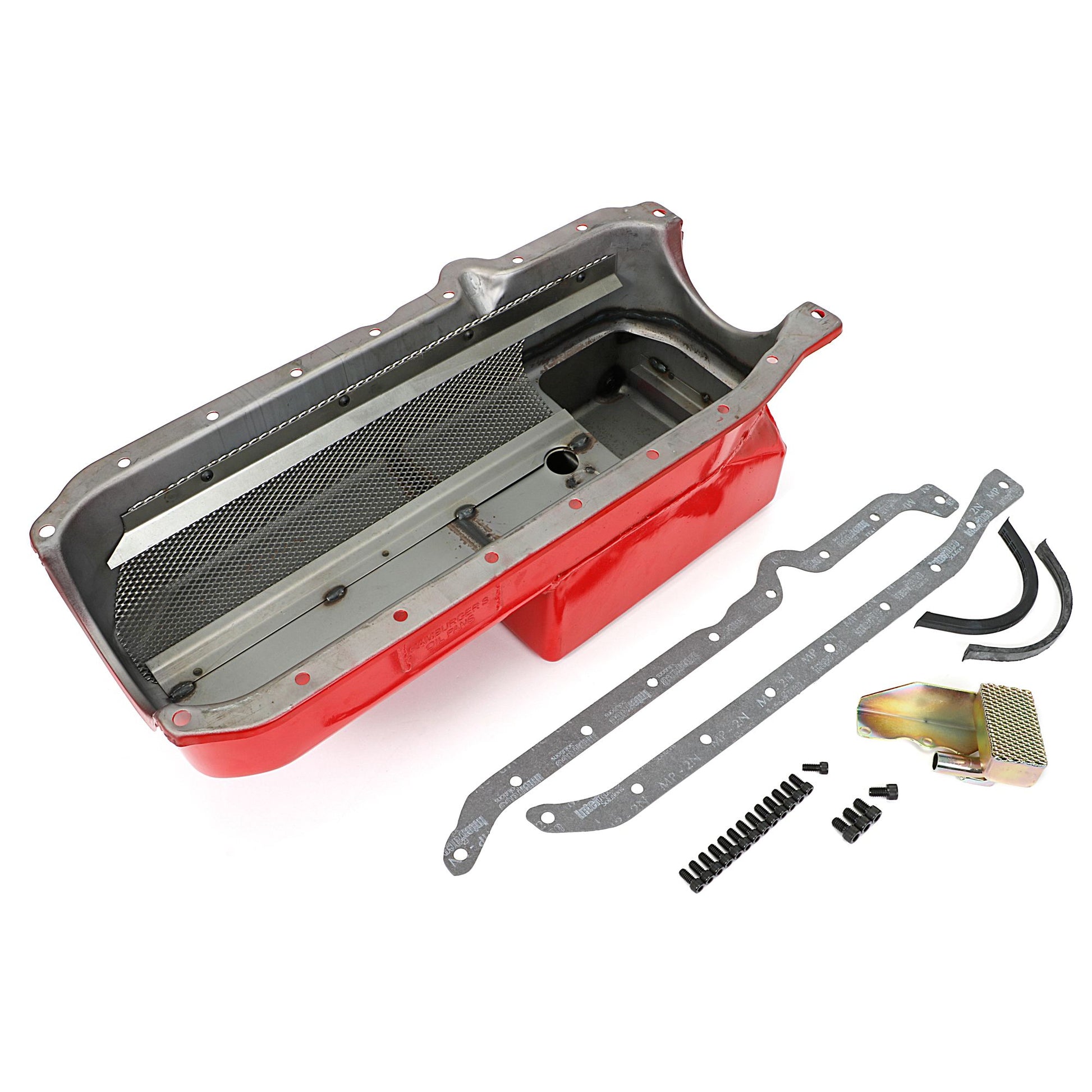

This Hamburger's Performance Drag racing oil pan is for use on 1986-1999 SB Chevy 305-350 engines in most drag racing chassis, street rods that require the use of a rear sump style oil pan. The pan is 8" deep and offers a 7 quart oil capacity. The all steel construction is durable, but lightweight. With a built-in crankshaft scraper, windage screen and trap door baffles, this affordably priced pan gives you all the benefits of pricier pans. Specially designed oil pump pick-up (for use with stock oil pump), gasket set, bolts and drain plug included. *This pan is Intended for passenger car or truck use only, and not for Marine use.

• Designed For Performance Engine Use
• Durable Steel Construction
• Equipped With Crankshaft Scraper And Windage Screen
• Includes Gasket, Bolts, Drainplug and Special Pick-Up Tube
• Wet Sump Design

Attributes:

• GTIN: 00086923010388
• Brand Name: Hamburger's Performance
• Baffled: Yes
• Crank Shaft Wiper Included: Yes
• Gasket Or Seal Included: Yes
• Kicked Out: No
• Pickup Included: Yes
• Sump Location: Rear
• Sump Style: Wet Sump
• Windage Tray Included: Yes
• Capacity: 7 Qts.
• Color: RED
• Contents: Oil Pan, pickup, gaskets
• Depth: 8 in.
• Finish: RED Painted
• Finish Type: Painted Red
• Material: Steel
• Oil Pan Depth (in): 8.000 in.
• Oil Pump Compatibility: Melling #10550, #M55, Chevy #12555884, #14044872 or equivalent
• Pan Capacity: 7 Qts.
• Pickup #: 2508
• Width: 8 in.
• Hardware Included: YES
• Dipstick Location: Passenger side
• Dipstick Provision: notched
• Drain Plug Thread Size: 1/2 in.-20
• Maximum Stroke with OE Rod: 3.875 in.
• Oil Pan Capacity: 7 Qt. Capacity
• Oil Pan Finish: Red Painted
• Oil Pan Material: Steel
• Quantity: Sold as a kit.
• Rear Main Seal Style: 1-piece
• Stroker Clearanced: Yes
• Year/Make/Model/Engine: S10 Swap pan 1986-1999 Small block Chevy
• Engine Manufacturer: Chevrolet
• Engine Oil Cooler Return Fitting: No
• Bolts/Studs Included: Yes
• Color/Finish: RED
• Construction: Stamped/Fab
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Fastener(s) Included: Yes
• Fluid Capacity: 7 Qt
• IMPORTANT!: This pan is Intended for car or truck use only, and not for Marine applications.
• Installation Hardware Included: Yes
• Mounting Hardware Included: Yes
• Oil Pan Bolts Included: Yes
• Package Contents: Oil Pan, Oil Pickup, Gaskets, Bolts, Drain plug
• Plug Included: Yes
• Replacement Gasket Set: 3007
• Length: 10-1/2 in.
• Notes: ECONO-SERIES Oil Pan; SB Chevy (305-350) 1986-99- Drag Race; 7 Qt; WET Sump; NO NOTCH
• Engine: Chevy SB 305-350; '86-99

Extended Information:

• Country of Origin: Taiwan
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10.500 x 12.000 x 25.000 inches
• Weight: 11.250 lb
