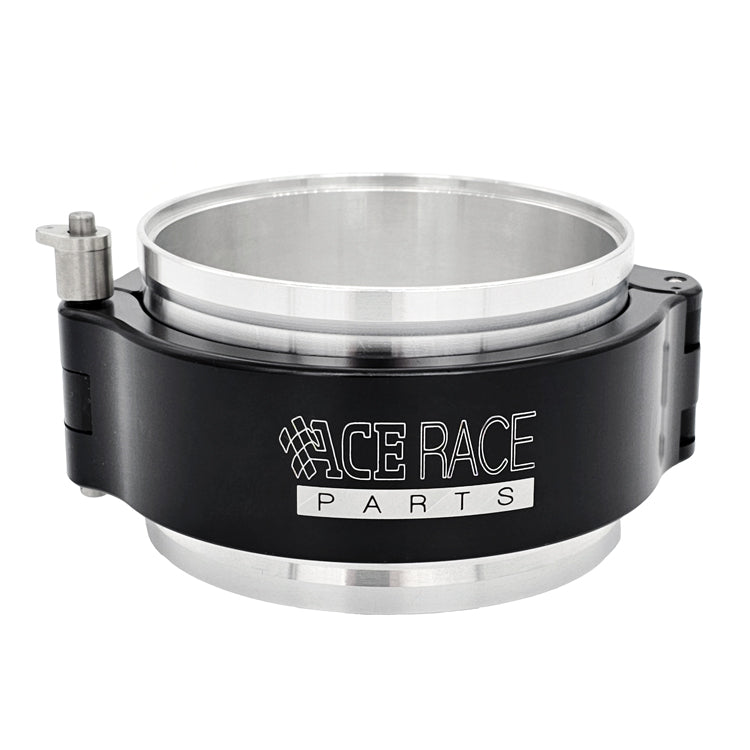

HD Clamp Assembly for 5.000" OD Tubing - Black Clamp, Aluminum Flanges

The Ace Race Parts brand of HD Clamp Assemblies are the perfect choice for pressurized air applications, like turbo intake charge piping. Allowing for up to 12 degrees of axial and angular deflection, our HD Clamp Assemblies are able to withstand harsh vibrations and lateral misalignment in the most extreme applications. Featuring a burst pressure rating of 800 psi, our HD Clamp Assemblies are able to provide a leak-free connection in applications that have operating temperatures as high as 400°F.

PRODUCT HIGHLIGHTS:

• Burst Pressure Rating: 800 psi
• Temperature Rating: 400°F / 204°C
• Axial Movement, Angular Deflection: Up to 12°
• Full 6061 Aluminum Billet Construction
• Quick Release Locking Pin

WHAT'S IN THE BOX:

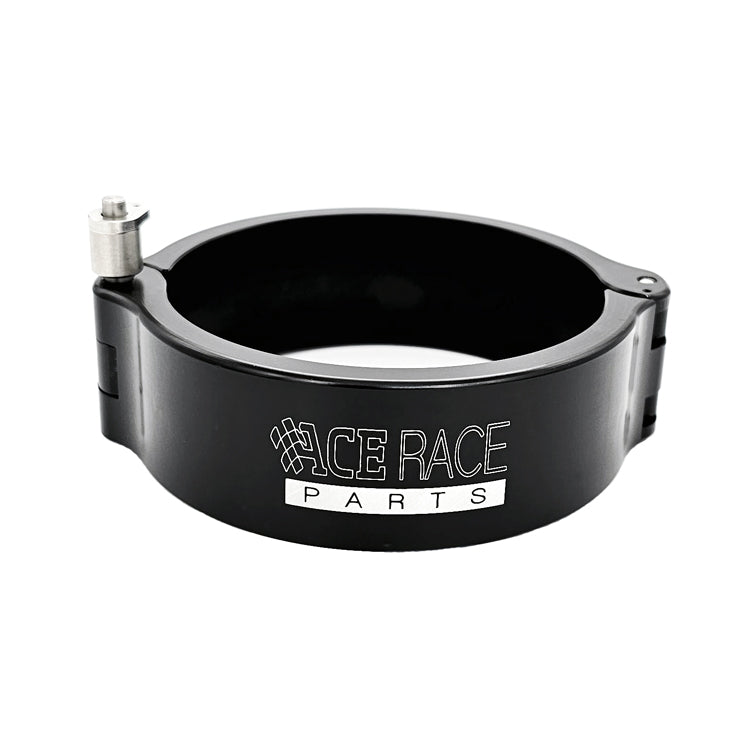

• One (1) 6061 Aluminum Clamp, Black Anodized

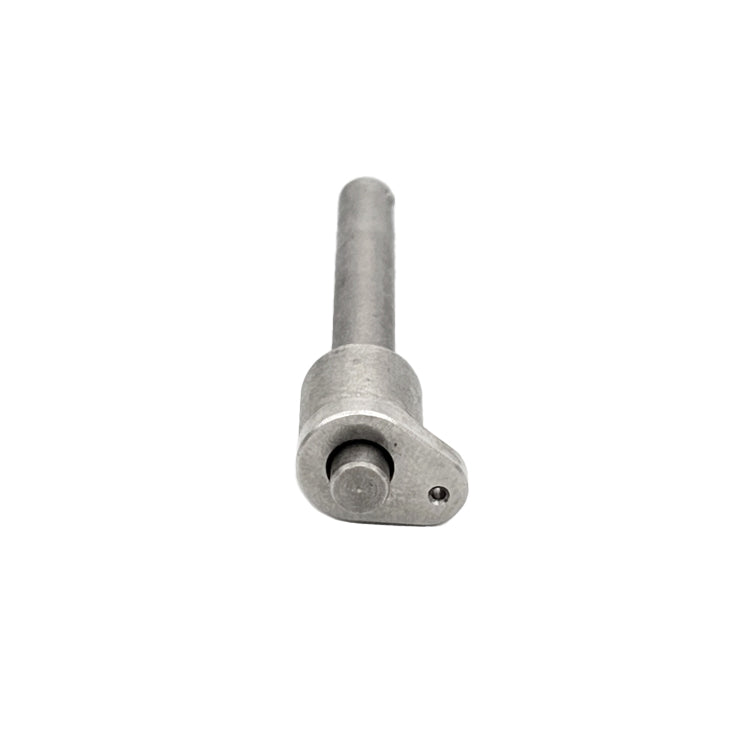

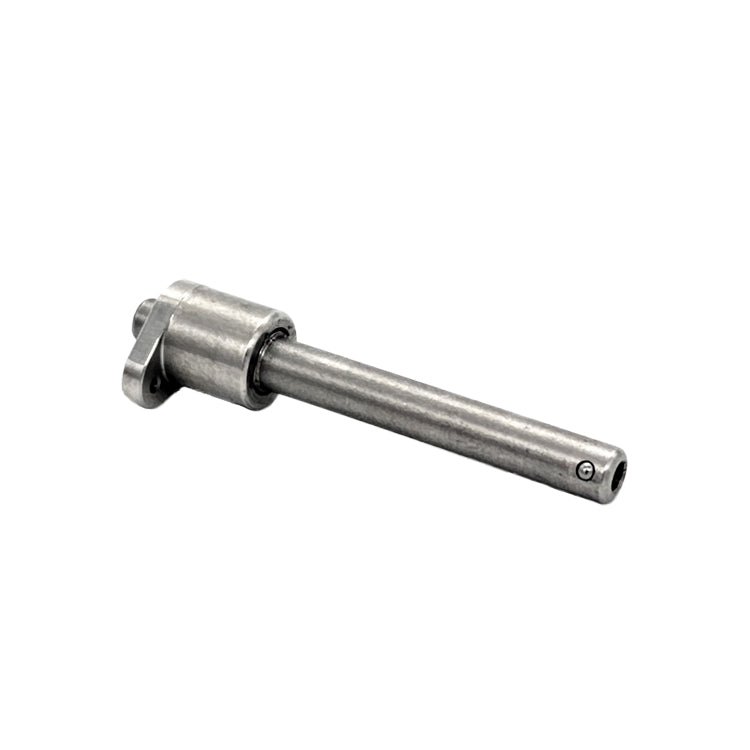

• One (1) Quick Release style Clamp Locking Pin

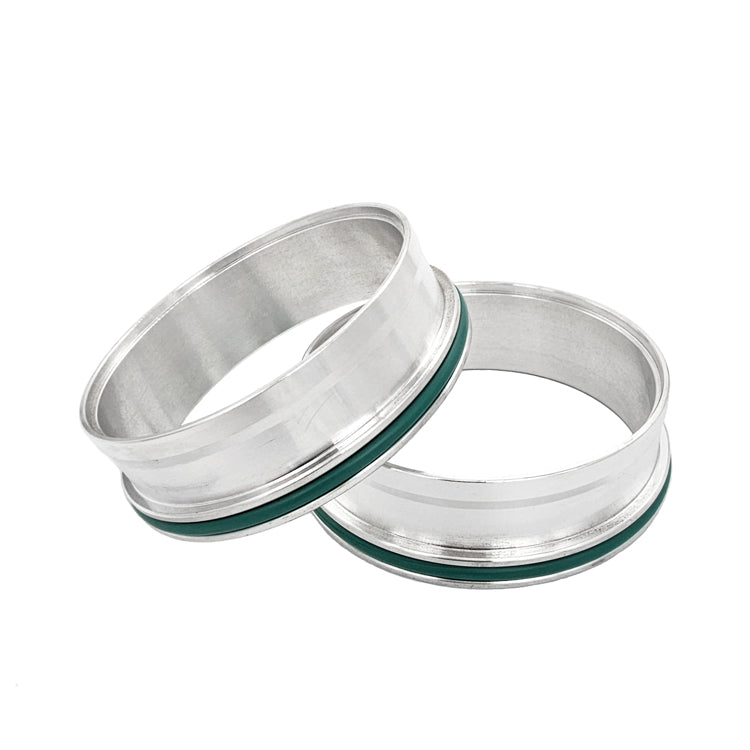

• Two (2) Aluminum Weld Flanges
• Two (2) FKM High Temperature O-Rings (Green Fluororubber)

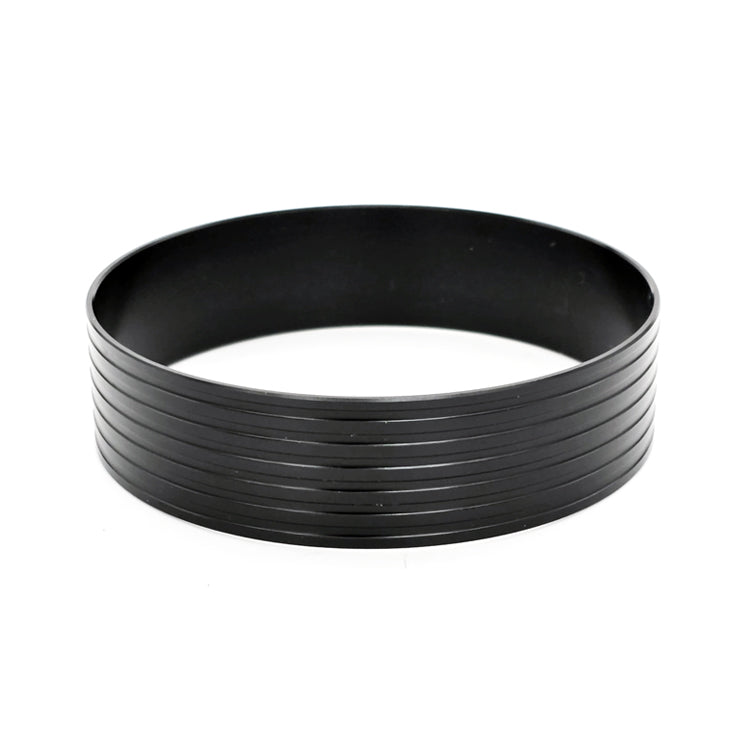

• One (1) Aluminum Union Sleeve, Hard Anodized
