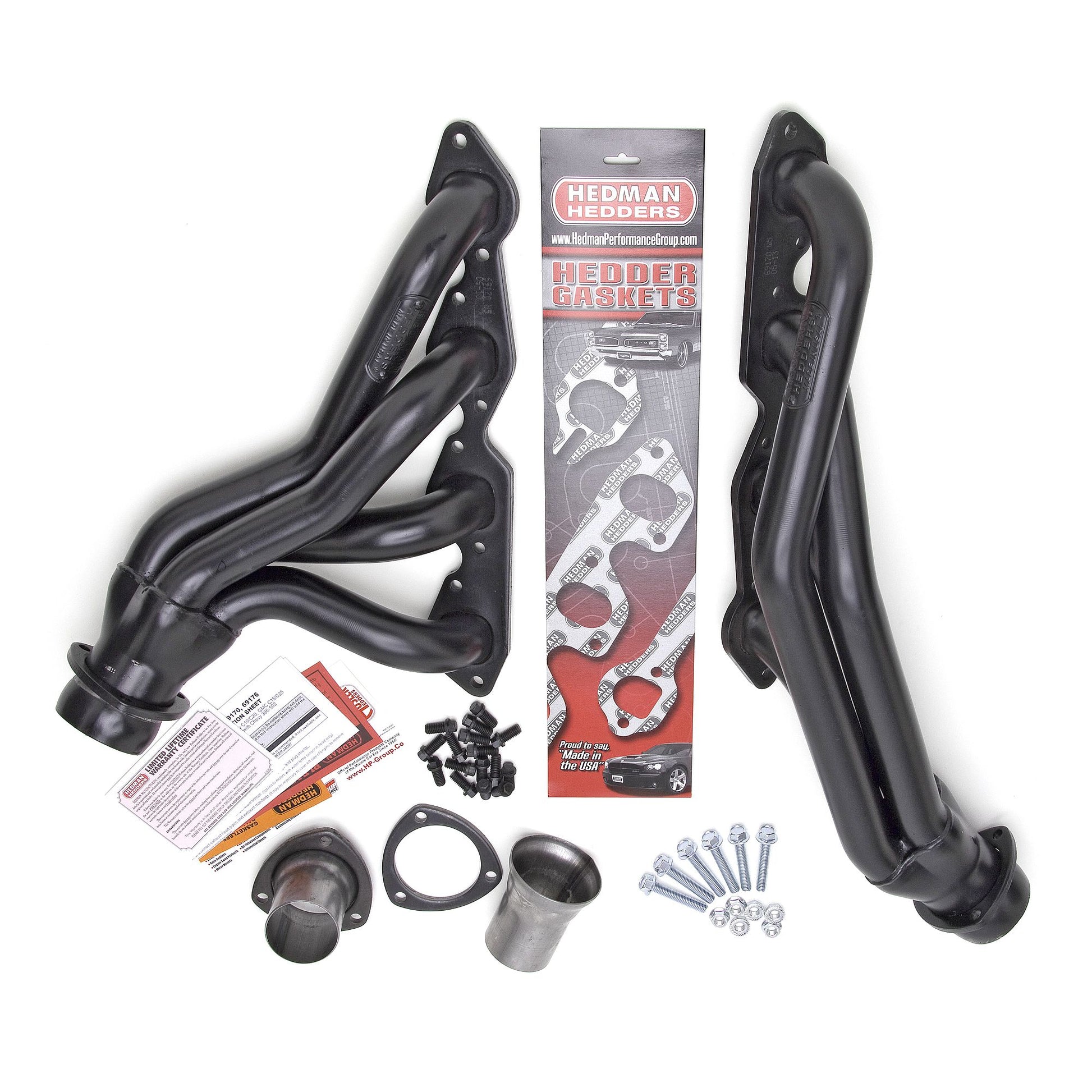

Hedman Hedders 67-87 C10/C20 TRUCKS AND SUVS WITH BB CHEVY; STANDARD UNCOATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 69190
Hedman Hedders 67-87 C10/C20 TRUCKS AND SUVS WITH BB CHEVY; STANDARD UNCOATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 69190
HEDMAN HEDDERS:
Part #
HEDMAN-69190
UPC #
732611691901
Regular price
$556.51 USD
Regular price
$1,168.67 USD
Sale price
$556.51 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611691901
- Brand Name: Hedman Hedders
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27540
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 3 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
- Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
- Installation Notes: Must Use Factory BB Chevy engine mounts and hardware. (112)
- Notes: 68-87 GM 1/2 and 3/4 Ton Truck, SUV 396-502 2WD
- Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
- Collector Diameter: 3 in.
- Transmission Notes: TAILSHAFT Style Crossmember Only. Not for Bellhousing Style Crossmember. (14)
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Bolts/Studs Included: Yes
- Flange Thickness: 0.375 in.
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Engine Notes: Fits 396-502 BB Chevy Engines
- Exhaust System Dia: 2-1/2 in.
- Finish: Uncoated
- Finish Type: Uncoated Mild steel
- Flange Style: Standard
- Replacement Head Flange Gasket: 27540
- Header Port Shape: Round
- IMPORTANT!: Vehicle must be setup as if came from the factory with a Big Block Chevy engine.
- Manual Transmission - Column: Yes
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Materials: Mild Steel Construction. 16g Tubes; 3/8 in. Head Flanges
- Port Shape: Round
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Tube Design: MID-LENGTH
- Tube Diameter: 2 in.
- Tube Length: Mid-Length Tubes
- Tube Material Thickness: 16g
- Tube Size: 2 in.
- Tube Style: Mid-Length
- Cylinder Head Port Shape: Round
- Header Finish: Uncoated
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 2 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
Extended Information:
- Country of Origin: United States
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 30.500 x 17.000 x 8.500 inches
- Weight: 31.000 lb
