Hedman Hedders 67-87 C10/C20 TRUCKS WITH SB CHEVY; STANDARD HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 69026
Hedman Hedders 67-87 C10/C20 TRUCKS WITH SB CHEVY; STANDARD HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 69026
HEDMAN HEDDERS
Part #
HEDMAN-69026
UPC #
732611690263
Regular price
$815.14 USD
Regular price
$899.65 USD
Sale price
$815.14 USD
Unit price
/
per
Product Description
Product Description
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611690263
- Brand Name: Hedman Hedders
- Bolts/Studs Included: Yes
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length Tube
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Flange Style: Standard
- Replacement Head Flange Gasket: 27560
- Header Port Shape: Rectangle
- Manual Transmission - Column: No
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Materials: Mild Steel Construction with HTC. 16g Tubes; 5/16 in. Head Flanges
- Port Shape: Rectangle
- Power Steering: Yes
- Product Details: The short, compact design of these headers allows truck builder to raise the exhaust system higher for maximum ground clearance. HTC ceramic-metallic coating to protect against heat and corrosion. Finish also helps lower engine compartment temperatures.
- Reducer Outlet Size: 2-1/2 in.
- Special Engine Notes: Designed for use with the SB Chevy engine located in the factory position.
- Tube Design: MID-LENGTH
- Tube Diameter: 1-3/4 in.
- Tube Length: Mid-Length Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-3/4 in.
- Tube Style: Mid-Length
- Variations: 69020
- Cylinder Head Port Shape: Rectangle
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Mounting Hardware Included: Yes
- Primary Tube Diameter (in): 1.75 in.
- Primary Tube Gauge: 16g
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Motor Mounts Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
- Replacement Gasket: 27560
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Collector Attachment: 3 in.
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Transmission Compatibility: Manual Trans. must Use TailShaft style crossmember or modify factory crossmember
- Header Construction: Standard-Duty
- E.O. #: No
- Notes: 67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD
- Engine: Chevy SB 283-400 (Gen 1) 1958-86
- Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
- Air Conditioning Notes: 70-Up: LARGE compressor needs bracket 20110; SMALL compressor, modify OE bracket
- Collector Diameter: 3 in.
- Flange Thickness: 0.3125 in.

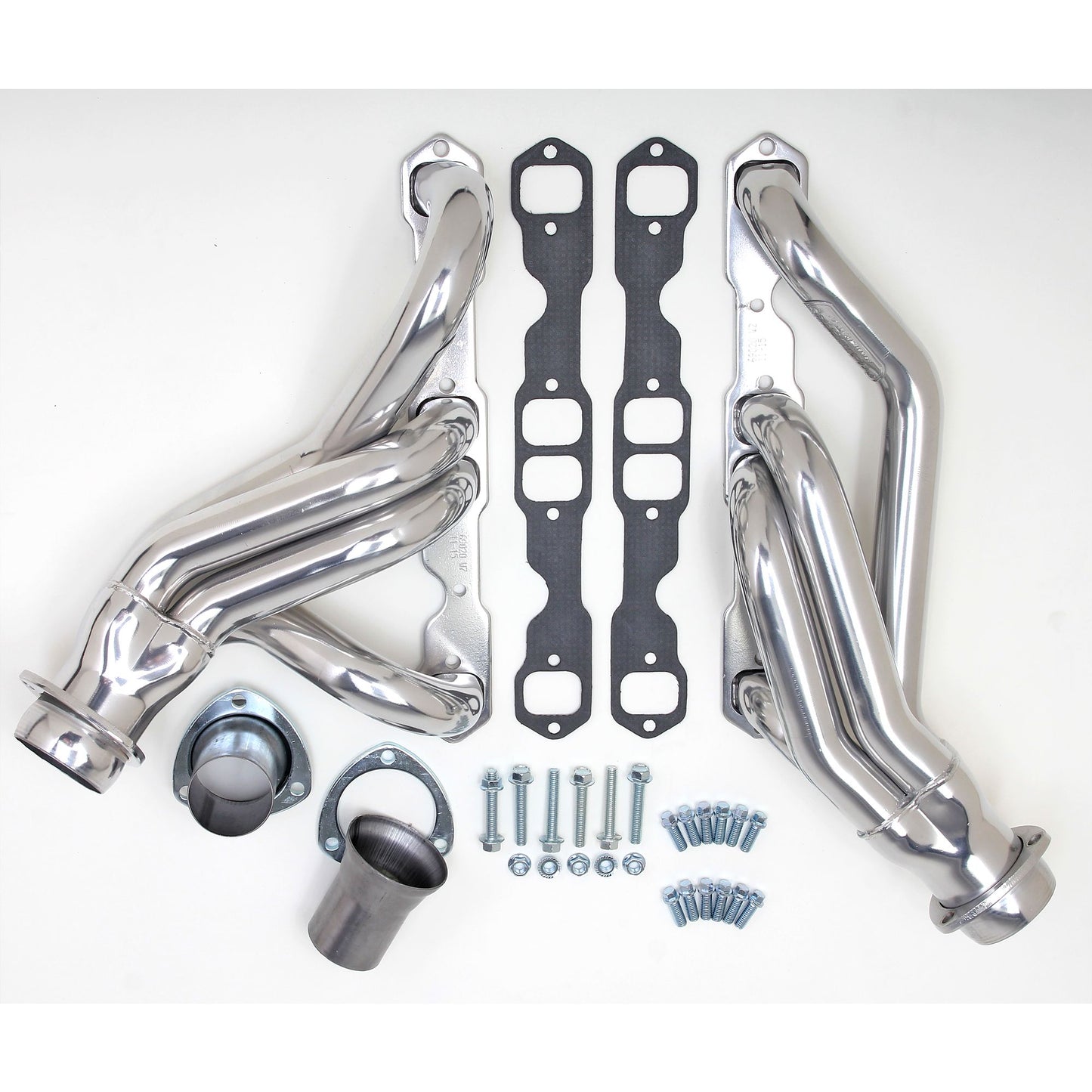

- Contents: headers, header gaskets, Reducers (exhaust adapters), header and collector bolts
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Extended Information:
- Country of Origin: United States
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 39.000 x 16.500 x 8.250 inches
- Weight: 25.000 lb
