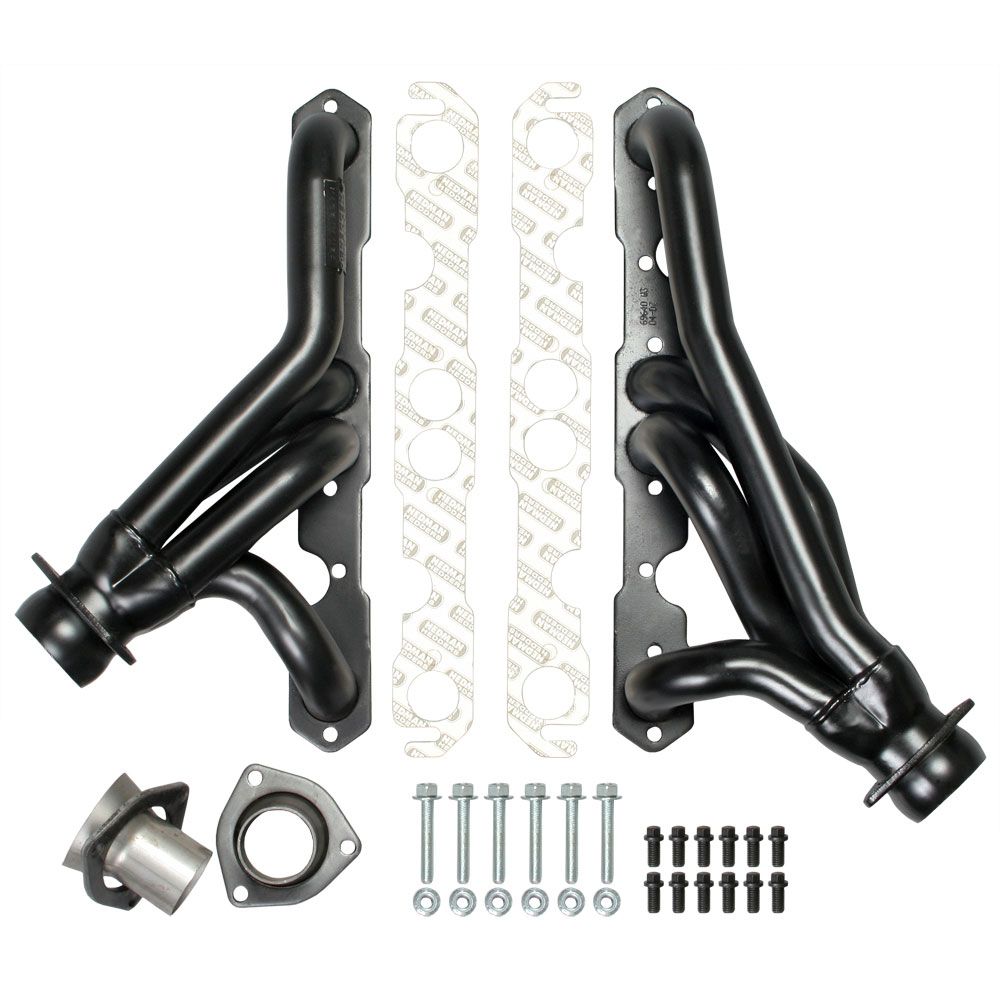

Hedman Hedders 86-95 WRANGLER 265-400; 1-1/2 IN. TUBE DIA; 2-1/2 IN. COLL; SHORTY DESIGN- BLACK MAXX 69643

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing and refining these Jeep Wrangler (YJ), SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>These BLACK-MAXX coated, MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1987-1995 Wrangler (YJ). The smooth 1-1/2 in. tube design provides ample exhaust flow to let your Wrangler's transplanted 283-400 SB Chevy engine breathe easy, and significantly improve torque over factory manifolds.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

• Handcrafted, Under-Chassis Exit Construction.
• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611696432
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Gasket Or Seal Included: Yes
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 2-1/2 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
• Flange Style: Standard
• Replacement Head Flange Gasket: 27500
• Header Port Shape: Round
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Round
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: MID-LENGTH
• Tube Diameter: 1-1/2 in.
• Tube Length: Mid-Length Tubes
• Tube Material Thickness: 16g
• Tube Size: 1-1/2 in.
• Variations: 69640, 69648
• Cylinder Head Port Shape: Round
• Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.50 in.
• Primary Tube Gauge: 16g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Replacement Gasket: 27500
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 2-1/2 in.
• Header Construction: Standard-Duty
• E.O. #: No
• Tube Style: Mid-Length
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Notes: 87-95 Jeep Wrangler Chev. 283-400 Swap
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Collector Diameter: 2-1/2 in.
• Header Style: Mid-Length Tube
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Flange Thickness: 0.3125 in.

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 20.000 x 13.500 x 8.250 inches
• Weight: 16.000 lb
