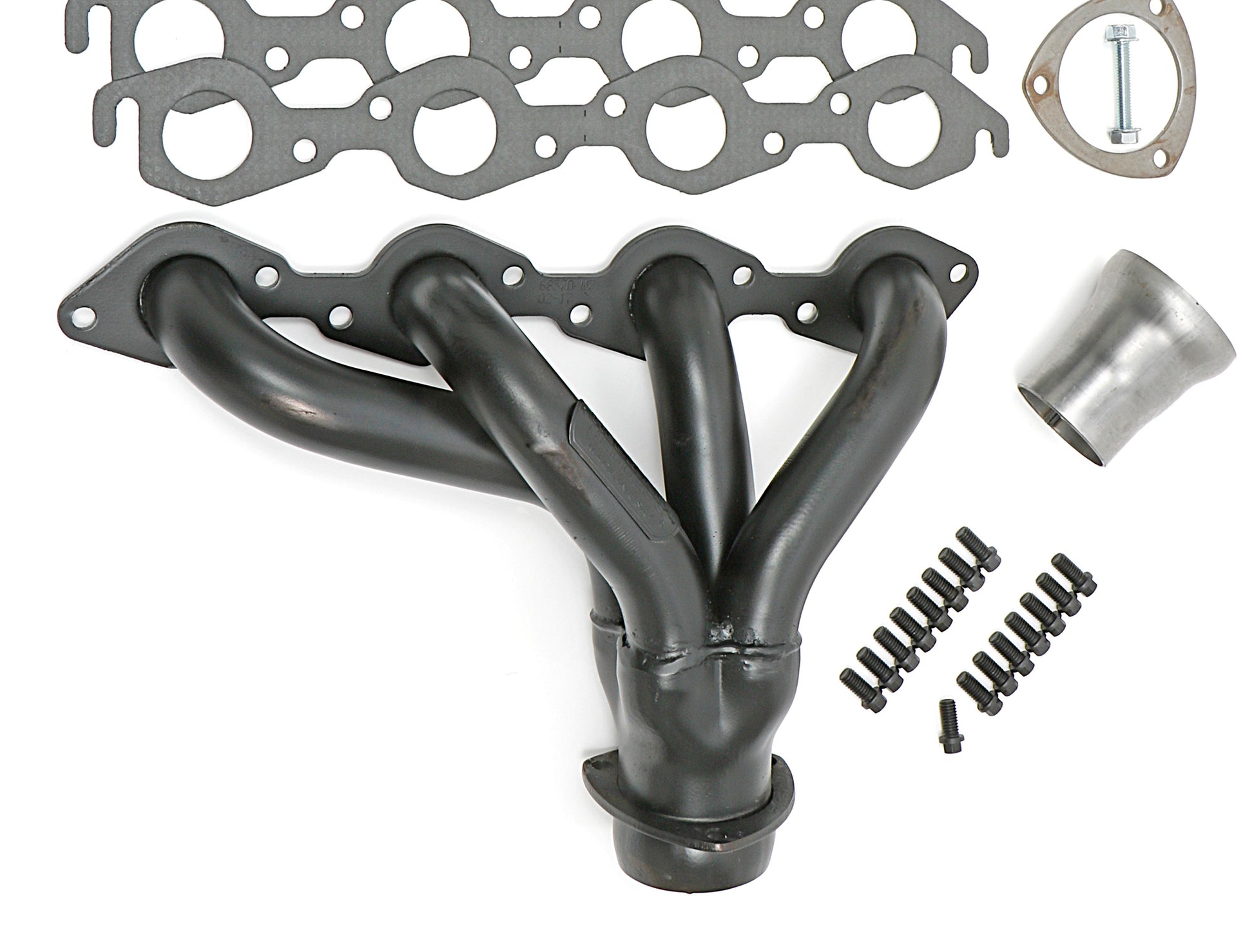

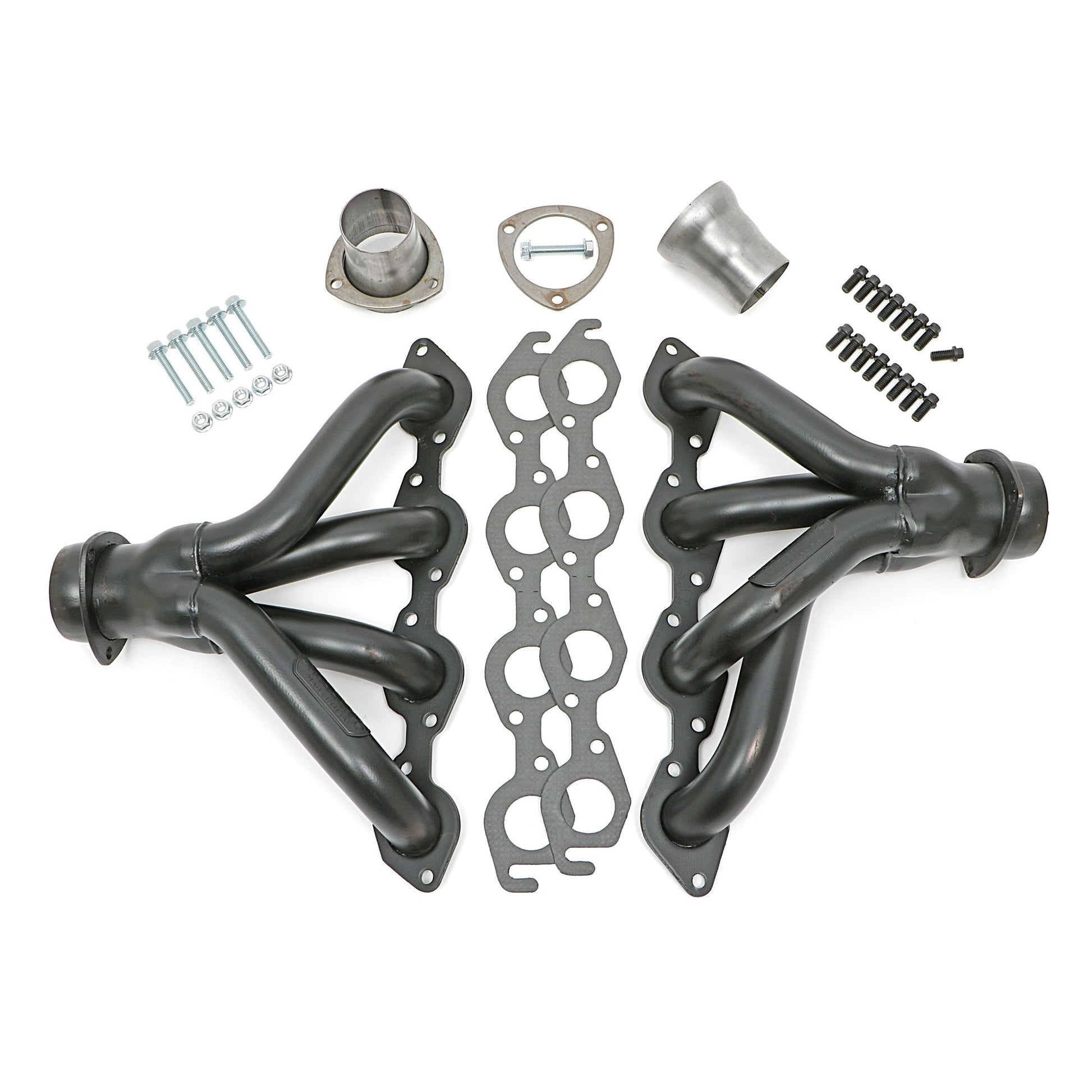

Hedman Hedders BLOCK HUGGER HEADERS; CHEVY BB 396-502; 1-3/4 IN. TUBES; UNCOATED 68370

• Handcrafted, Mild Steel Construction.
• Classic Block Hugger Style Is Perfect For Street Rods, and Cramped Custom Builds That Do Not Have Enough Clearance For Mid-Length or Long Tube Headers.
• Classic 3-Bolt Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611683708
• Brand Name: Hedman Hedders
• Automatic Transmission - Column: Yes
• Manual Transmission - Column: Yes
• Manual Transmission - Floor: Yes
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Notes: Street Rod Universal Shorty 396-502
• Engine: Chevy BB 396-502
• Collector Diameter: 3 in.
• Tube Length: Short Tubes
• E.O. #: No
• Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
• Tube Material Thickness: 16g
• Primary Tube Gauge: 16g
• Flange Thickness: 0.3125 in.
• Bolts/Studs Included: Yes
• Gasket Or Seal Included: Yes
• Header Style: Block Huggers- Street Rod
• Reducers Included: Yes
• Collector Size: 3 in.
• Collector Style: 3-Bolt Gasket Style Flange
• Exhaust System Dia: 2-1/2 in.
• Finish: Uncoated
• Finish Type: Uncoated Mild steel
• Flange Style: Standard
• Replacement Head Flange Gasket: 27530
• Header Port Shape: Round
• Material: Mild Steel
• Port Shape: Round
• Product Info: This traditional block hugger style set of headers are ideal for most street rod projects and for use on vehicles with narrow frame rails. they are a center dump design.
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: BLOCK HUGGERS
• Tube Diameter: 1-3/4 in.
• Tube Size: 1-3/4 in.
• Tube Style: Block Huggers
• Variations: 68376, 68873
• Cylinder Head Port Shape: Round
• Header Finish: Uncoated
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27530
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Transmission Notes: Modification to shifter linkage may be required.
• Automatic Transmission - Floor: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 20.000 x 13.500 x 8.250 inches
• Weight: 16.000 lb
