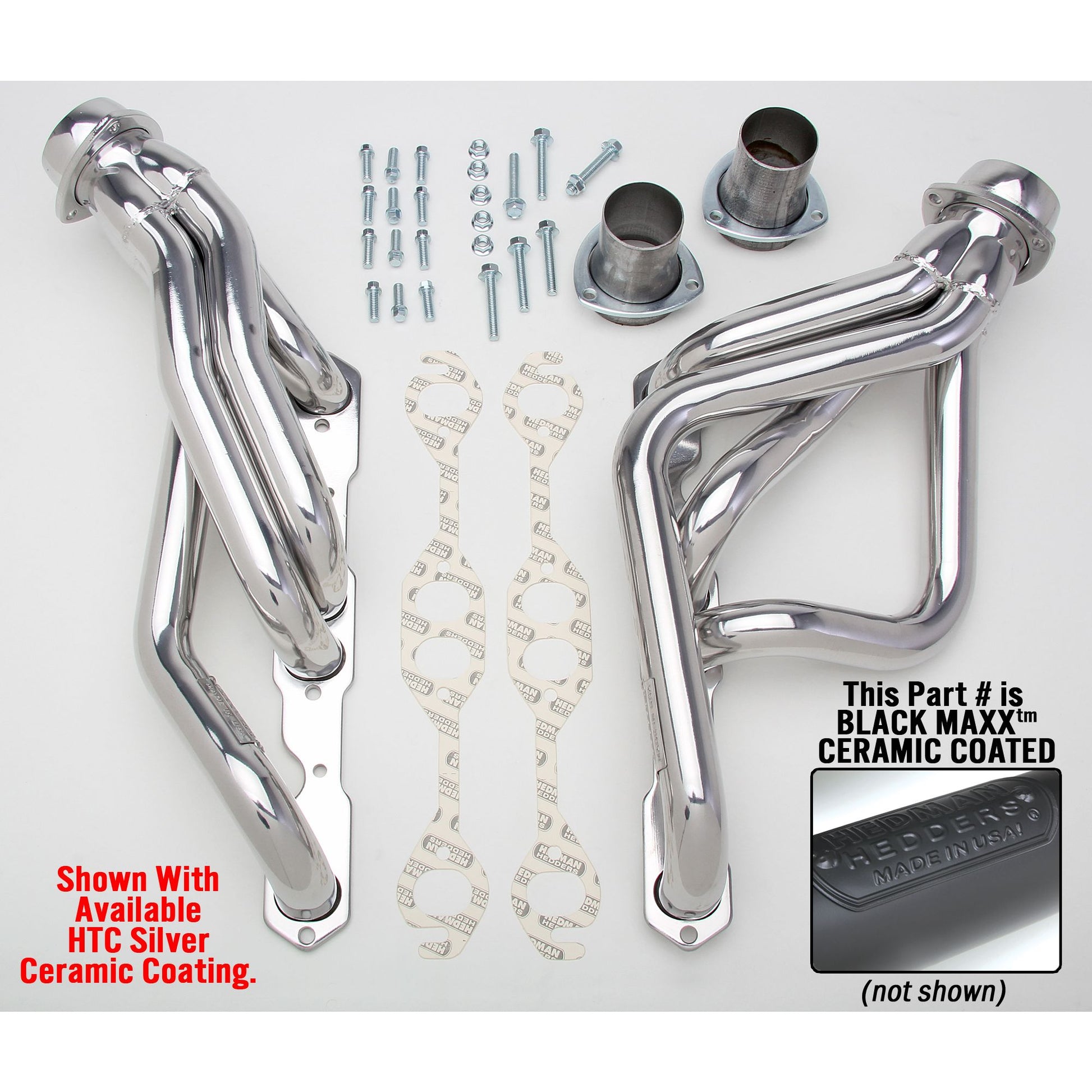

Hedman Hedders EARLY SB CAMARO/CHEVELLE SHORTIES; CLOSE RATIO STEERING- BLACK MAXX 68623
Hedman Hedders EARLY SB CAMARO/CHEVELLE SHORTIES; CLOSE RATIO STEERING- BLACK MAXX 68623
HEDMAN HEDDERS
Part #
HEDMAN-68623
UPC #
732611686235
Regular price
$755.73 USD
Regular price
$834.30 USD
Sale price
$755.73 USD
Unit price
/
per
Product Description
Product Description
- Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
- The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Attributes:
- GTIN: 00732611686235
- Brand Name: Hedman Hedders
- Tuned: No
- Weld-Up: No
- Collector Bolts Included: Yes
- Catalytic Converter(s) Included: No
- Crossover Pipe Included: No
- Quantity: Sold as a pair.
- Cylinder Head: Stock Profile Heads
- Replacement Gasket: 27520
- Installation Hardware Included: Yes
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
- Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
- Header Construction: Standard-Duty
- E.O. #: No
- Product Info: This set of headers has been designed specifically for use on vehicles with a close-ratio steering box.
- Notes: 67-81 F; 68-77 A; 68-79 X; 65-74 Chevy Pass Car; SB Chevy; Close Ratio steering
- Tube Design: MID-LENGTH (close ratio steering)
- Collector Attachment: 3 in.
- Collector Diameter: 3 in.
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Tube Length: Mid-Length Tubes
- Tube Size: 1-5/8 in.
- Tube Style: Mid-Length (close ratio steering)
- Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
- Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
- Header Material: Mild Steel
- Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
- Flange Thickness: 0.3125 in.
- Bolts/Studs Included: Yes
- Gasket Or Seal Included: Yes
- Header Style: Mid-Length (close ratio steering)
- Reducers Included: Yes
- Air Conditioning: Yes
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Collector Size: 3 in.
- Collector Style: BALL and SOCKET Style (Gasketless)
- Exhaust System Dia: 2-1/2 in.
- Finish: BLACK MAXX Satin Black Ceramic-Metallic
- Flange Style: Standard
- Key Feature: Close-Ratio Steering Box
- Manual Transmission - Column: No
- Manual Transmission - Floor: No
- Material: Mild Steel
- Port Shape: Oval
- Power Steering: Yes
- Reducer Outlet Size: 2-1/2 in.
- Tube Diameter: 1-5/8 in.
- Tube Material Thickness: 16g
- Variations: 68620, 68626 & 68623.
- Cylinder Head Port Shape: Oval
- Mounting Hardware Included: Yes
Extended Information:
- Country of Origin: United States
- Life Cycle Status: Available To Order
- Emissions : EPA Eligible
Packing Information:
- Quantity of Each: 1
- Package UOM: ST
- Dimension: 16.000 x 28.000 x 8.000 inches
- Weight: 24.000 lb
