Hedman Hedders ELITE-86-95 WRANGLER 283-400- BLACK MAXX 63343

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing and refining these Jeep Wrangler (YJ), SB Chevy V8 engine swap specific header model for over 20 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's BLACK ELITE line of headers. Hedman BLACK ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN BLACK ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.</p><p>BLACK ELITE models have a SATIN-BLACK ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great, and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.</p><p>These MID-LENGTH TUBE headers are designed specifically for installing a Small Block Chevy 283-400 (Gen 1) engine into a 1987-1995 Wrangler (YJ). The smooth 1-1/2 in. tube design provides ample exhaust flow to let your Wrangler's transplanted 283-400 SB Chevy engine breathe easy, and significantly improve torque over factory manifolds.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic coating is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

• Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
• Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!
• Under Chassis Exit Design

Attributes:

• GTIN: 00732611633437
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 2-1/2 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
• Flange Style: Standard
• Replacement Head Flange Gasket: 27520
• Header Port Shape: Oval Port
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Oval
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: MID-LENGTH
• Tube Diameter: 1-1/2 in.
• Tube Length: Mid-Length Tubes
• Tube Material Thickness: 14g
• Tube Size: 1-1/2 in.
• Variations: 69646, 69648
• Cylinder Head Port Shape: Oval
• Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.50 in.
• Primary Tube Gauge: 14g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Replacement Gasket: 27520
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 2-1/2 in.
• Header Construction: ELITE Heavy-Duty
• E.O. #: No
• Tube Style: Mid-Length

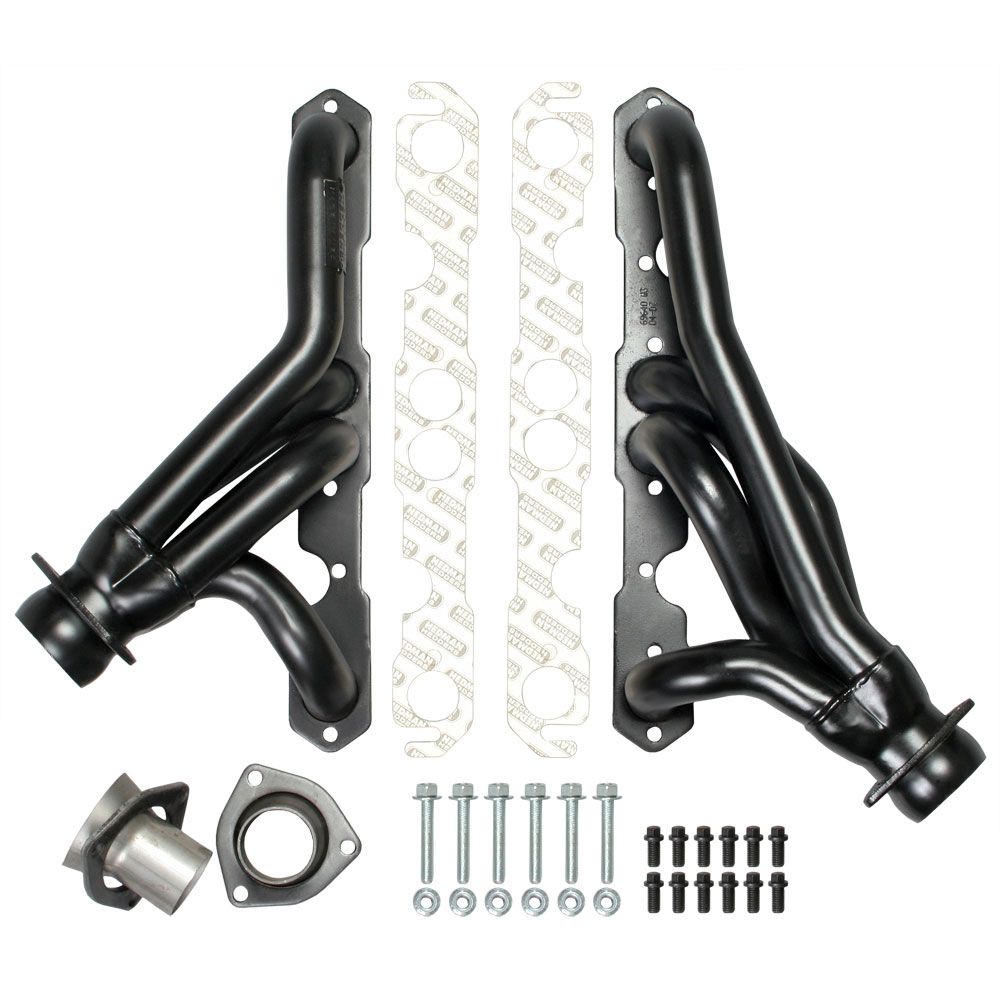

• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Notes: 87-95 Jeep Wrangler Chev. 283-400 Swap
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Collector Diameter: 2-1/2 in.
• Header Style: Mid-Length Tube
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.250 x 18.250 x 9.630 inches
• Weight: 24.000 lb
