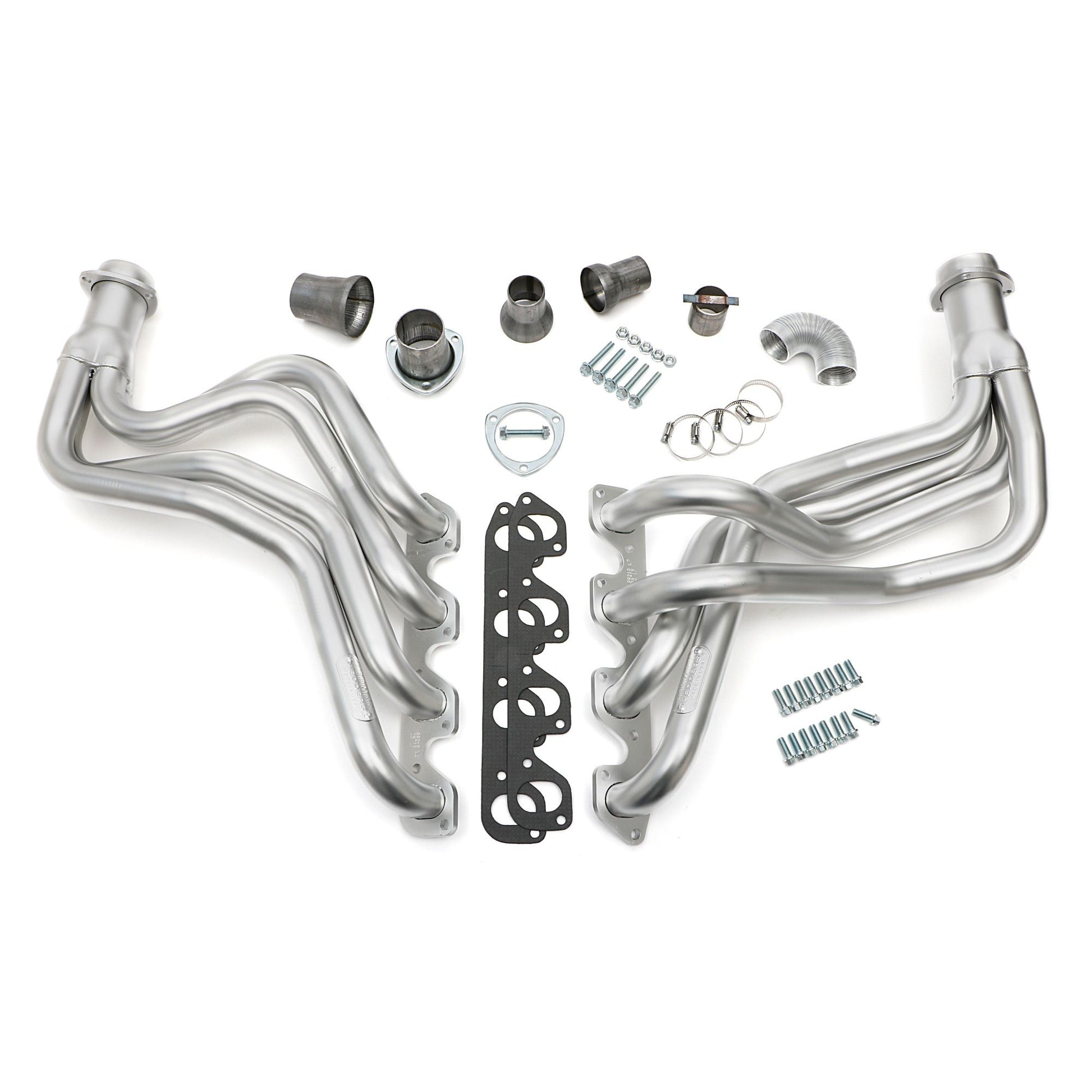

Hedman Hedders ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN 89218

• Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
• Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611892186
• Brand Name: Hedman Hedders
• Variations: 89216, 89218
• Cylinder Head Port Shape: Oval
• Header Finish: Matte Silver Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Primary Tube Gauge: 14g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27720
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Header Construction: ELITE Heavy-Duty
• E.O. #: No
• Engine Version: Ford Modified Block (M)
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Notes: 77.5-79 Ford F150, F250, F350, Bronco; 4WD 351-400M
• Collector Diameter: 3 in.
• Tube Style: Long Tubes
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Long Tube
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: Matte Silver Ceramic-Metallic
• Finish Type: MATTE SILVER Ceramic-metallic coated
• Flange Style: Standard
• Replacement Head Flange Gasket: 27720
• Header Port Shape: Oval Port
• Key Feature: Heavy-Duty Model
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Oval
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Special Engine Notes: 771/2-79 MODEL YEARS
• Tube Design: LONG TUBES
• Tube Diameter: 1-3/4 in.
• Tube Length: Long Tubes
• Tube Material Thickness: 14g
• Tube Size: 1-3/4 in.

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.250 x 18.250 x 9.630 inches
• Weight: 44.000 lb
