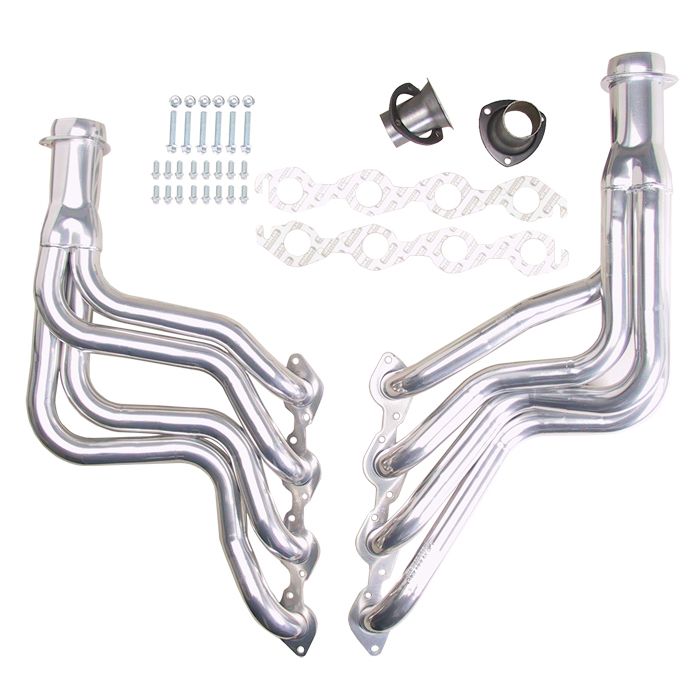

Hedman Hedders ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN; NON-EMISSIONS MODEL 68198

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.</p><p>These LONG-TUBE headers fit a variety of BB Chevy (396-454) powered 1967-77 Chevy passenger cars. Model like, 1967-69 Camaros, 64-77 Chevelles and El Caminos, 68-74 Novas, and 1965-70 Belair, Impala and Biscayne models. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 Chevy engine breathe easy, and produce maximum horsepower and torque.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers, they are factory backed by Hedman's Limited Lifetime Warranty. The MATTE-SILVER coating is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

• Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
• Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611681988
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Long Tube
• Reducers Included: Yes
• Air Conditioning: No
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Finish: Matte Silver Ceramic-Metallic
• Flange Style: Standard
• Replacement Head Flange Gasket: 27550
• Header Port Shape: Square
• Manual Transmission - Column: Yes
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Square
• Power Steering: Yes
• Tube Design: LONG TUBES
• Tube Diameter: 1-3/4 in.
• Tube Length: Long Tubes
• Tube Material Thickness: 14g
• Tube Size: 1-3/4 in.
• Variations: 68196, 68198
• Cylinder Head Port Shape: Square
• Header Finish: Matte Silver Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Primary Tube Gauge: 14g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27550
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Header Construction: ELITE Heavy-Duty
• E.O. #: No
• Finish Type: MATTE SILVER Ceramic-metallic coated
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Notes: 64-77 Various Chev. Car 396-502
• Reducer Outlet Size: 2-1/2 in.
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Collector Diameter: 3 in.
• Exhaust System Dia: 2-1/2 in.
• Tube Style: Long Tubes
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.250 x 18.250 x 9.630 inches
• Weight: 42.000 lb
