Hedman Hedders ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN 68618

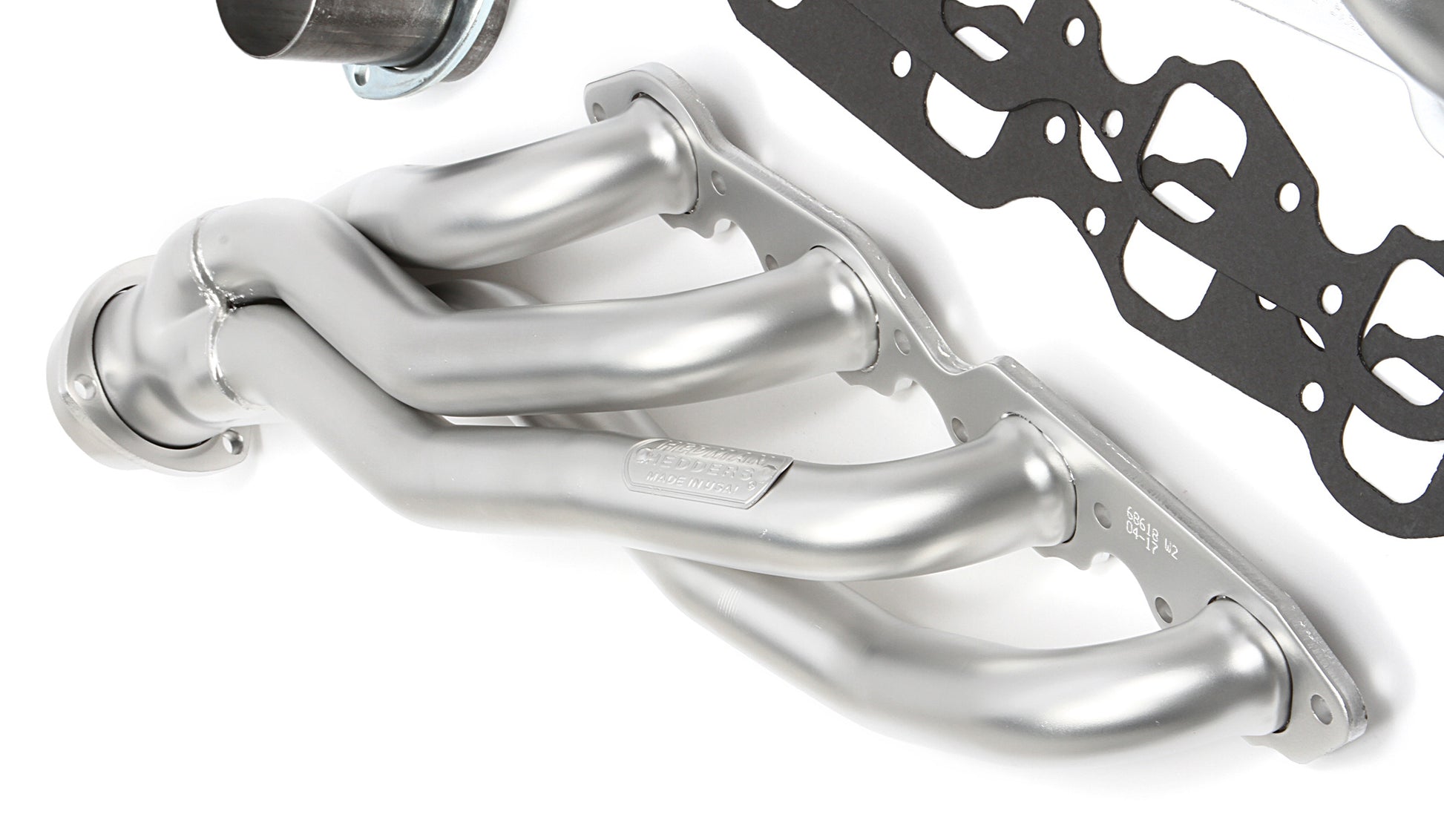

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.</p><p>ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.</p><p>These MID-LENGTH headers fit Big Block Chevy V8 powered 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with many 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

• Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
• Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Attributes:

• GTIN: 00732611686181
• Brand Name: Hedman Hedders
• Bolts/Studs Included: Yes
• Flange Thickness: 0.375 in.
• Gasket Or Seal Included: Yes
• Header Style: Mid-Length Tube
• Reducers Included: Yes
• Air Conditioning: Yes
• Automatic Transmission - Column: No
• Automatic Transmission - Floor: Yes
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Exhaust System Dia: 2-1/2 in.
• Finish: Matte Silver Ceramic-Metallic
• Finish Type: MATTE SILVER Ceramic-metallic coated
• Flange Style: Standard
• Replacement Head Flange Gasket: 27550
• Header Port Shape: Oval Port
• Key Feature: Without A.I.R.
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Port Shape: Oval
• Power Steering: Yes
• Reducer Outlet Size: 2-1/2 in.
• Tube Design: MID-LENGTH
• Tube Diameter: 1-3/4 in.
• Tube Length: Mid-Length Tubes
• Tube Material Thickness: 14g
• Tube Size: 1-3/4 in.
• Tube Style: Mid-Length
• Variations: 68616, 68618
• Cylinder Head Port Shape: Oval
• Header Finish: Matte Silver Ceramic-Metallic
• Header Material: Mild Steel
• Mounting Hardware Included: Yes
• Primary Tube Diameter (in): 1.75 in.
• Primary Tube Gauge: 14g
• Tuned: No
• Weld-Up: No
• Collector Bolts Included: Yes
• Catalytic Converter(s) Included: No
• Crossover Pipe Included: No
• Motor Mounts Included: No
• Quantity: Sold as a pair.
• Cylinder Head: Stock Profile Heads
• Replacement Gasket: 27550
• Installation Hardware Included: Yes
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No
• Collector Attachment: 3 in.
• Header Construction: ELITE Heavy-Duty
• E.O. #: No
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Notes: 67-81 F; 68-77 A; 68-79 X; 65-74 Chevy Pass. Car 396-502
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Collector Diameter: 3 in.

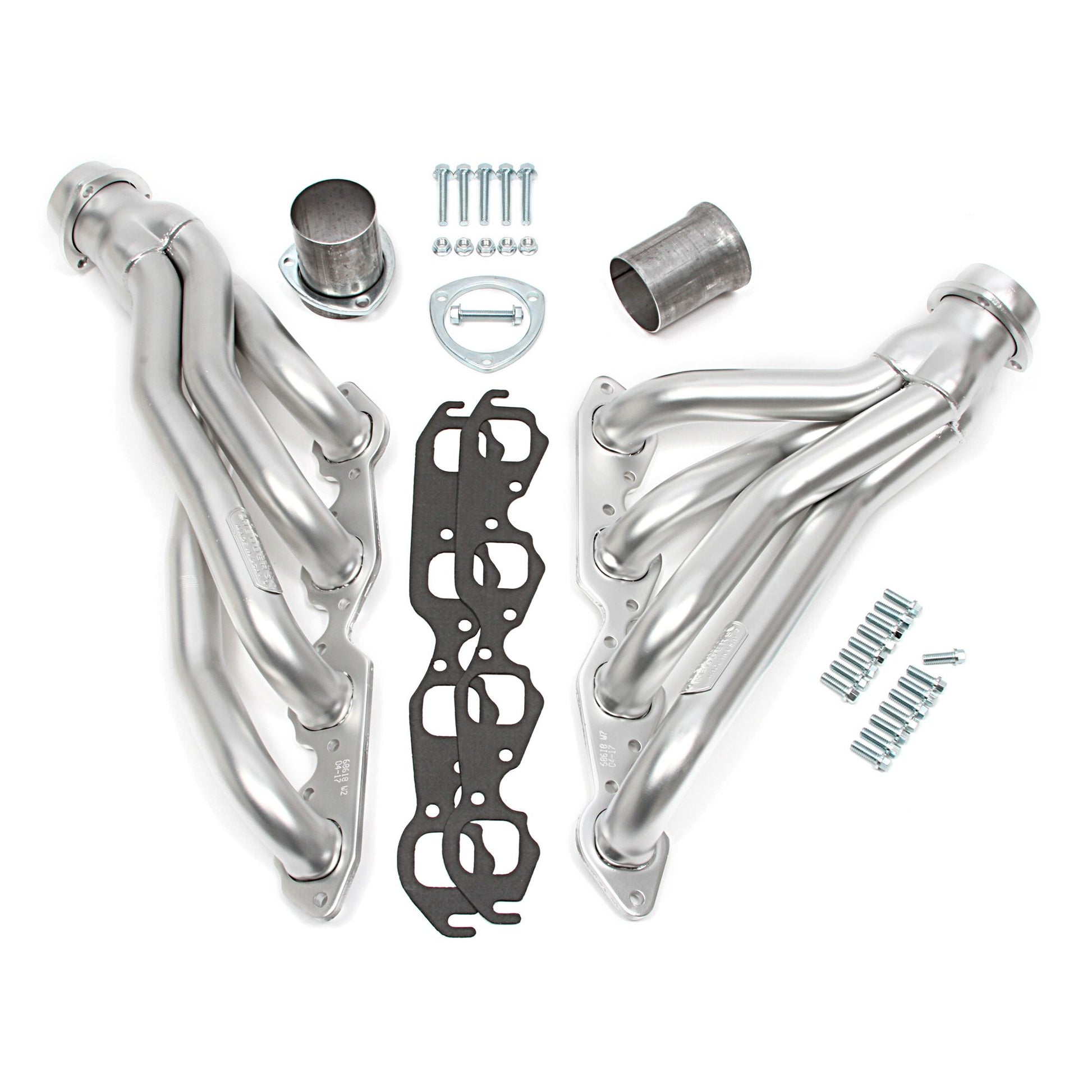

• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 29.000 x 16.500 x 8.250 inches
• Weight: 32.000 lb
